Sandvik Coromant
5721285

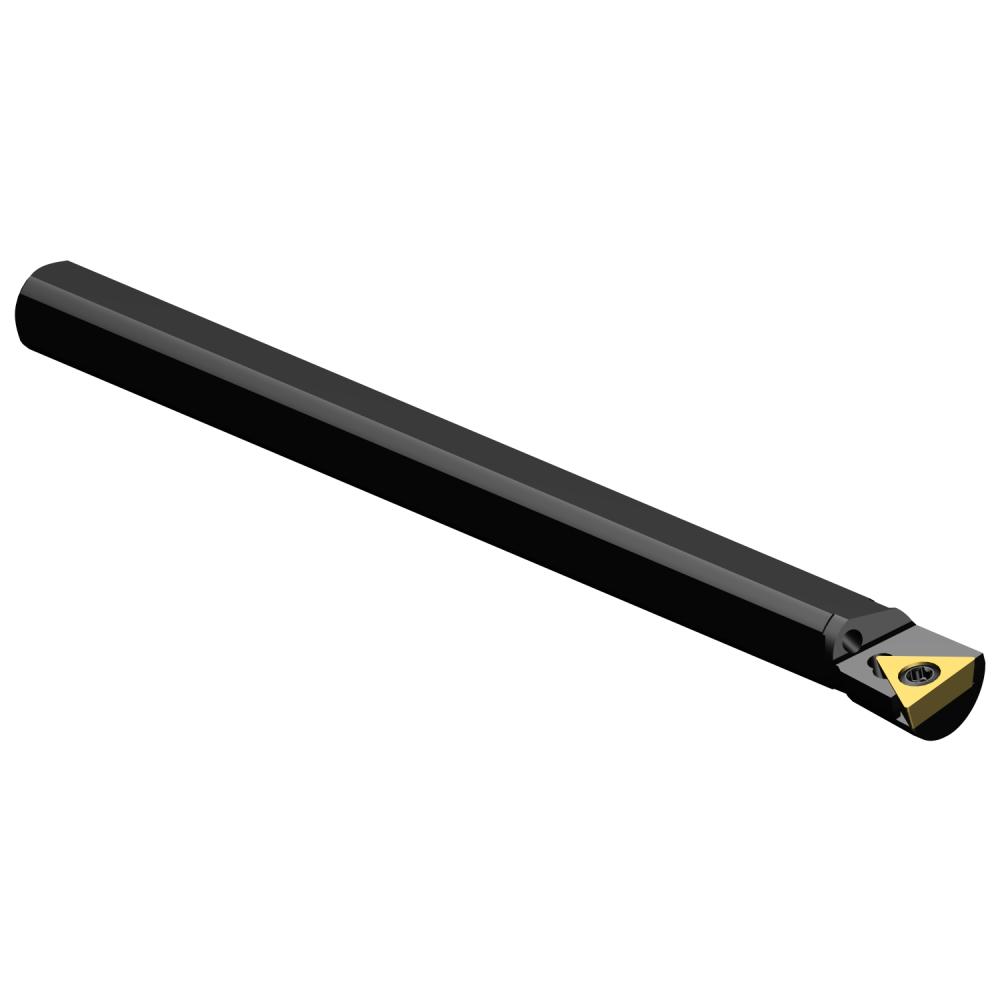

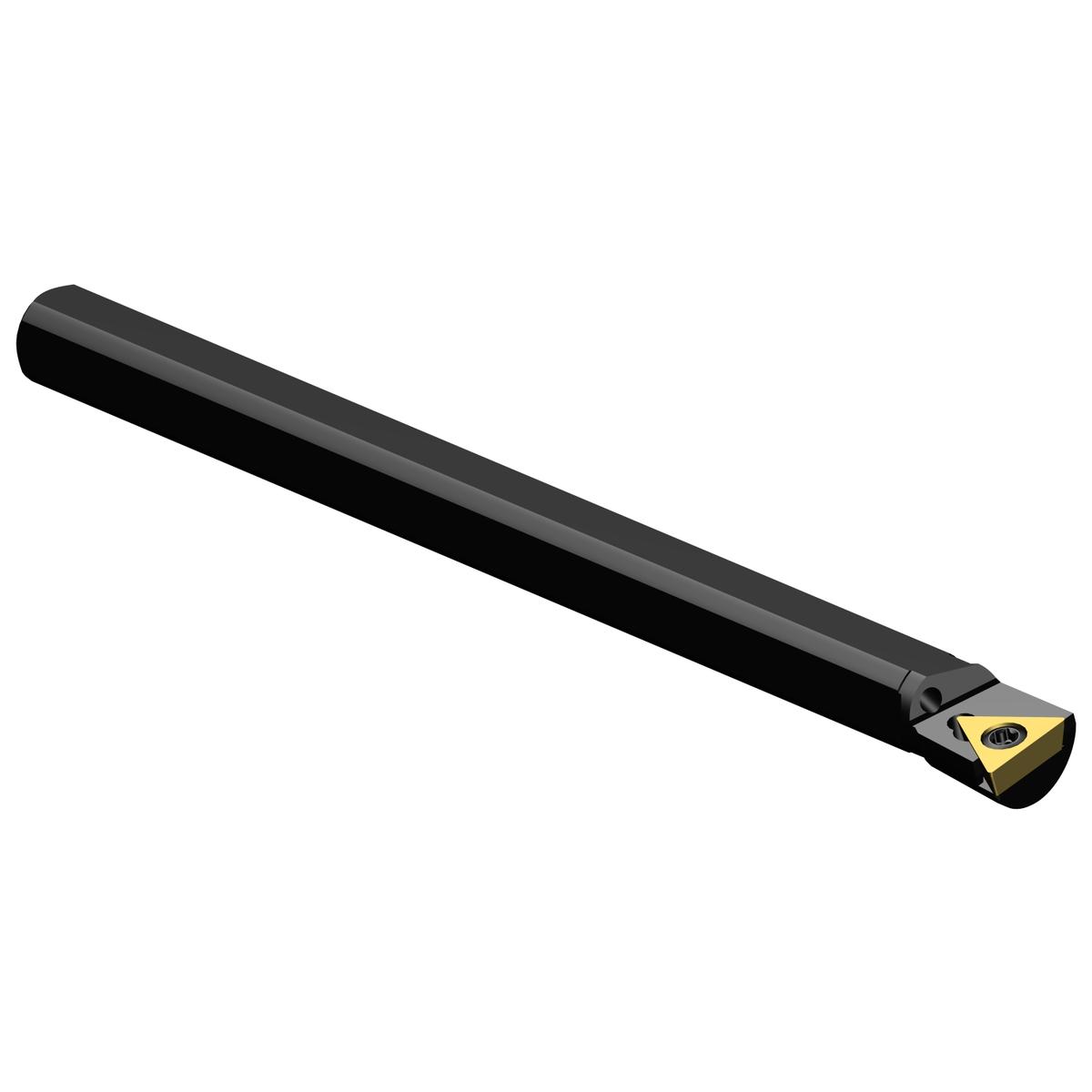

Sandvik Coromant 5721285
Specifications
| Minimum Bore Diameter (Metric) | 8.7 |
|---|---|
| Minimum Bore Diameter (Inch) | 0.34 |
| Shank Diameter (Metric) | 6.35 |
| Direction Of Hand | Left |
| Overall Length (Metric) | 82.55 |
| Shank Diameter (Inch) | 0.25 |
| Overall Length (Inch) | 3.25 |
| Short Description | CoroTurn® 107 boring bar for turning |
| Unit Of Measure | Imperial |
| Series | CoroTurn 107 |
| Shank Height (Metric) | 5.34 |
| Shank Height (Decimal) | 0.21 |
| Orthogonal Rake Angle | 0 degrees |
| Overall Length | 3.25 Inch |
| Shank Diameter | 0.25 Inch |
| Coolant Through | Yes |
| Tool Lead Angle | -1 degrees |
| ANSI Code | A04F-STFCL 1.2 |
| Body Material | Steel |
| Machine Side Body Angle | 0 degrees |
| Workpiece Side Body Angle | 0 degrees |
| Tool Cutting Edge Angle | 91 degrees |
| Body Diameter (Decimal) | 0.25 |
| Body Diameter (Metric) | 6.35 |
| Coolant Pressure | 580.151 lbf/in2 |
| Overall Width (Decimal) | 0.17 |
| Overall Width (Metric) | 4.37 |
| Inclination Angle | -12.033 degrees |
| Clamping Type Code | Screw/Clamp |
| Torque | 0.6 Nm |
| Coolant Entry Style Code | 1: Axial Concentric Entry |
| Coolant Exit Style Code | 3: Axial Inclined Exit |
| Country of Origin | United States |
| Base Item Number | 1053 |
| Max. Overhang (Decimal) | 1 |
| Max. Overhang (Metric) | 25.4 |
| Maximum Ramping Angle | 0 degrees |
| Min Bore Diameter | 0.34 Inch |
| Min. Overhang (Decimal) | 0.38 |
| Min. Overhang (Metric) | 9.53 |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Weight | 0.031 LB |
| Height Packed Product Metric | 25 mm |
| Height Packed Product Imperial | 0.984 inch |
| ISO Code (packed) | A04F-STFCL1.2 |
| Length Packed Product Metric | 87 mm |
| Life Cycle State | 20 |
| ISO Code (unpacked) | A04F-STFCL 1.2 |
| Length Packed Product Imperial | 3.425 inch |
