Sandvik Coromant
5721394

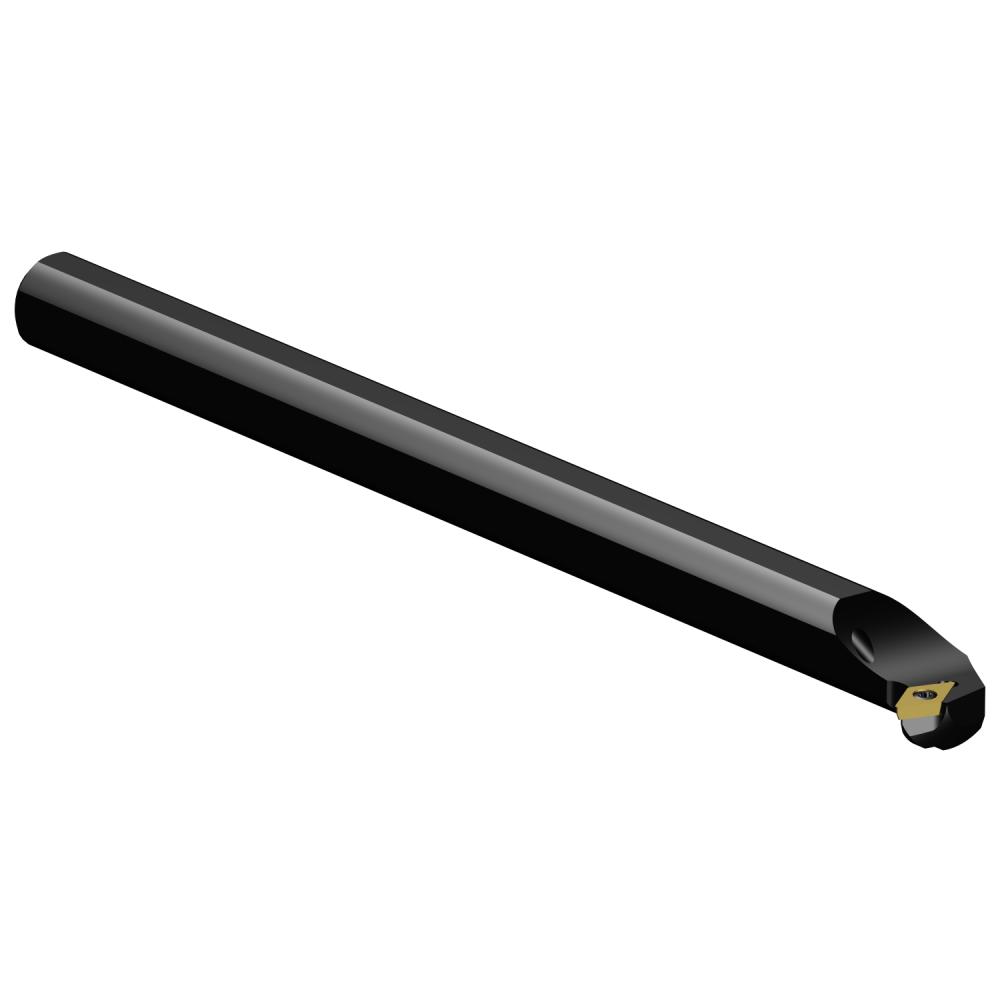

Sandvik Coromant 5721394
Specifications
| Minimum Bore Diameter (Metric) | 22 |
|---|---|
| Minimum Bore Diameter (Inch) | 0.87 |
| Shank Diameter (Metric) | 16 |
| Direction Of Hand | Left |
| Overall Length (Metric) | 200 |
| Shank Diameter (Inch) | 0.63 |
| Overall Length (Inch) | 7.87 |
| Short Description | CoroTurn® 111 boring bar for turning |
| Unit Of Measure | Metric |
| Series | CoroTurn 111 |
| Shank Height (Metric) | 15 |
| Shank Height (Decimal) | 0.59 |
| Orthogonal Rake Angle | 0 degrees |
| Overall Length | 200 mm |
| Shank Diameter | 16 mm |
| Coolant Through | Yes |
| Tool Lead Angle | 27.5 degrees |
| ANSI Code | A16R-SDXPL 07-E |
| Body Material | Steel |
| Machine Side Body Angle | 0 degrees |
| Workpiece Side Body Angle | 0 degrees |
| Tool Cutting Edge Angle | 62.5 degrees |
| Body Diameter (Decimal) | 0.63 |
| Body Diameter (Metric) | 16 |
| Coolant Pressure | 145.038 lbf/in2 |
| Overall Width (Decimal) | 0.51 |
| Overall Width (Metric) | 13 |
| Inclination Angle | 1 degrees |
| Protruding Length (Decimal) | 8.06 |
| Protruding Length (Metric) | 204.6 |
| Clamping Type Code | Screw/Clamp |
| Torque | 0.9 Nm |
| Coolant Entry Style Code | 1: Axial Concentric Entry |
| Coolant Exit Style Code | 3: Axial Inclined Exit |
| Country of Origin | India |
| Base Item Number | 1054 |
| Max. Overhang (Decimal) | 2.52 |
| Max. Overhang (Metric) | 64 |
| Maximum Ramping Angle | 60 degrees |
| Min Bore Diameter | 22 mm |
| Min. Overhang (Decimal) | 0.95 |
| Min. Overhang (Metric) | 24 |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 0.558 LB |
| Height Packed Product Metric | 42 mm |
| Height Packed Product Imperial | 1.654 inch |
| ISO Code (packed) | A16R-SDXPL07-E |
| Length Packed Product Metric | 210 mm |
| Life Cycle State | 20 |
| ISO Code (unpacked) | A16R-SDXPL 07-E |
| Length Packed Product Imperial | 8.268 inch |
