Sandvik Coromant
5721439
Sandvik Coromant 5721439
Specifications
| Material | Steel |
|---|---|

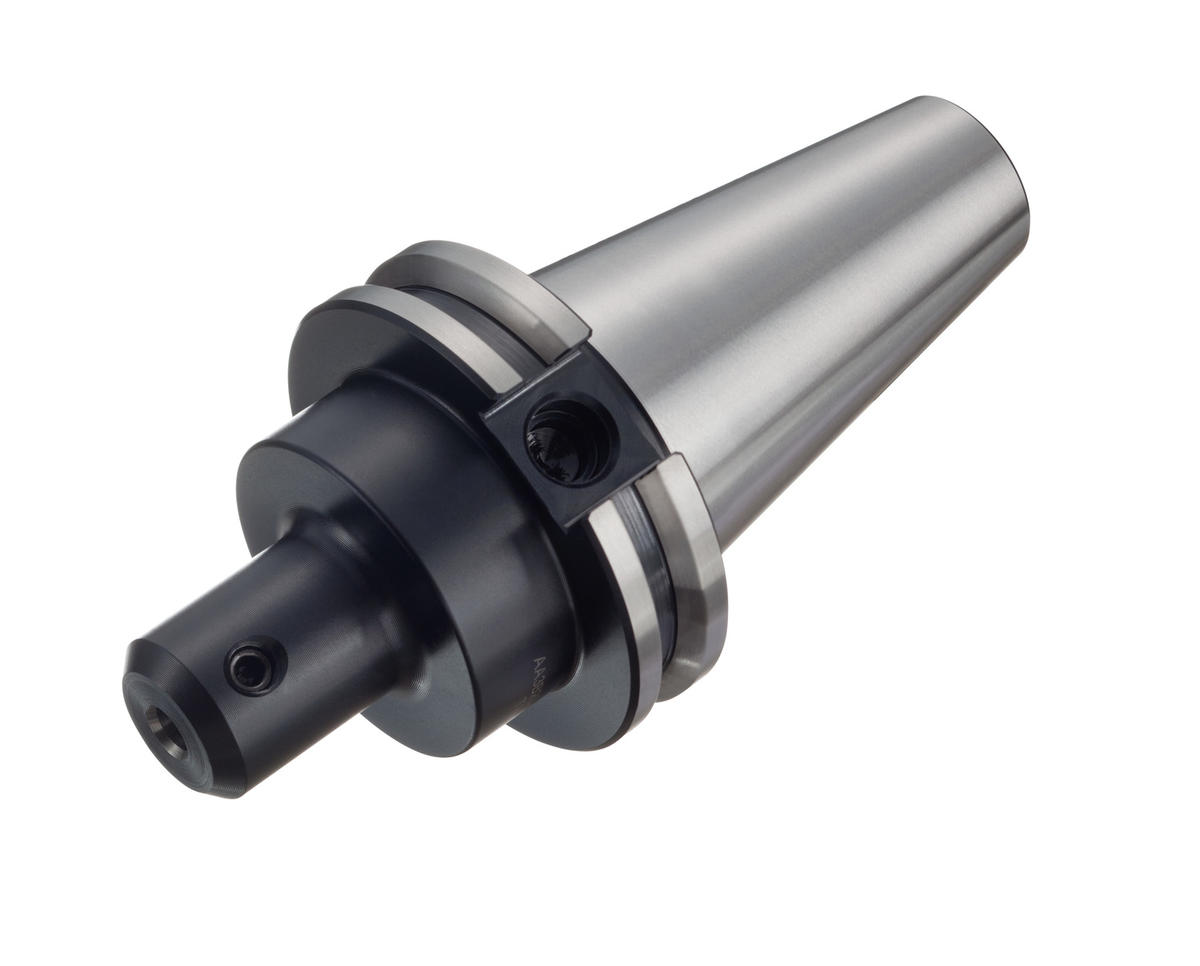

| Short Description | CAT-V to Weldon adaptor |
| Unit Of Measure | Imperial |
| Overall Length | 2.5 Inch |
| Overall Length (Decimal) | 2.5 |
| Overall Length (Metric) | 63.5 |
| ANSI Code | AA3B20-40 09 063 |
| Coolant Through | Yes |
| Body Diameter (Decimal) | 1 |
| Body Diameter (Metric) | 25.4 |
| Body Length (Decimal) | 0.11 |
| Body Length (Metric) | 2.8 |
| Functional Diameter (Decimal) | 1.75 |
| Functional Diameter (Metric) | 44.45 |
| Connection Retention Knob Thread Size | 5/8-11 |
| Data Chip Provision Size | D10/H4,5 |
| Body Half Taper Angle | 45 degrees |
| Torque (ft lbf) | 7.376 |
| Torque (NM) | 10 |
| Coolant Pressure (Bar) | 20 |
| Coolant Entry Style Code | 7: decentral over flange and axial |
| Coolant Exit Style Code | 1: axial concentric exit |
| Balanced by Design | Yes |
| Data Chip Provision | Yes |
| Damping Property | No |
| Country of Origin | Slovenia |
| Base Item Number | 2099 |
| Body Length (Inch) | 0.11 |
| Coolant Pressure (lbf/in2) | 290.075 |
| Kappa (Z-Axis Rot) | 0 degrees |
| Max. Rotational Speed | 18000 1/min |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Weight | 2.456 LB |
