Sandvik Coromant
5721633
Sandvik Coromant 5721633
Specifications
| Material | Steel |
|---|---|

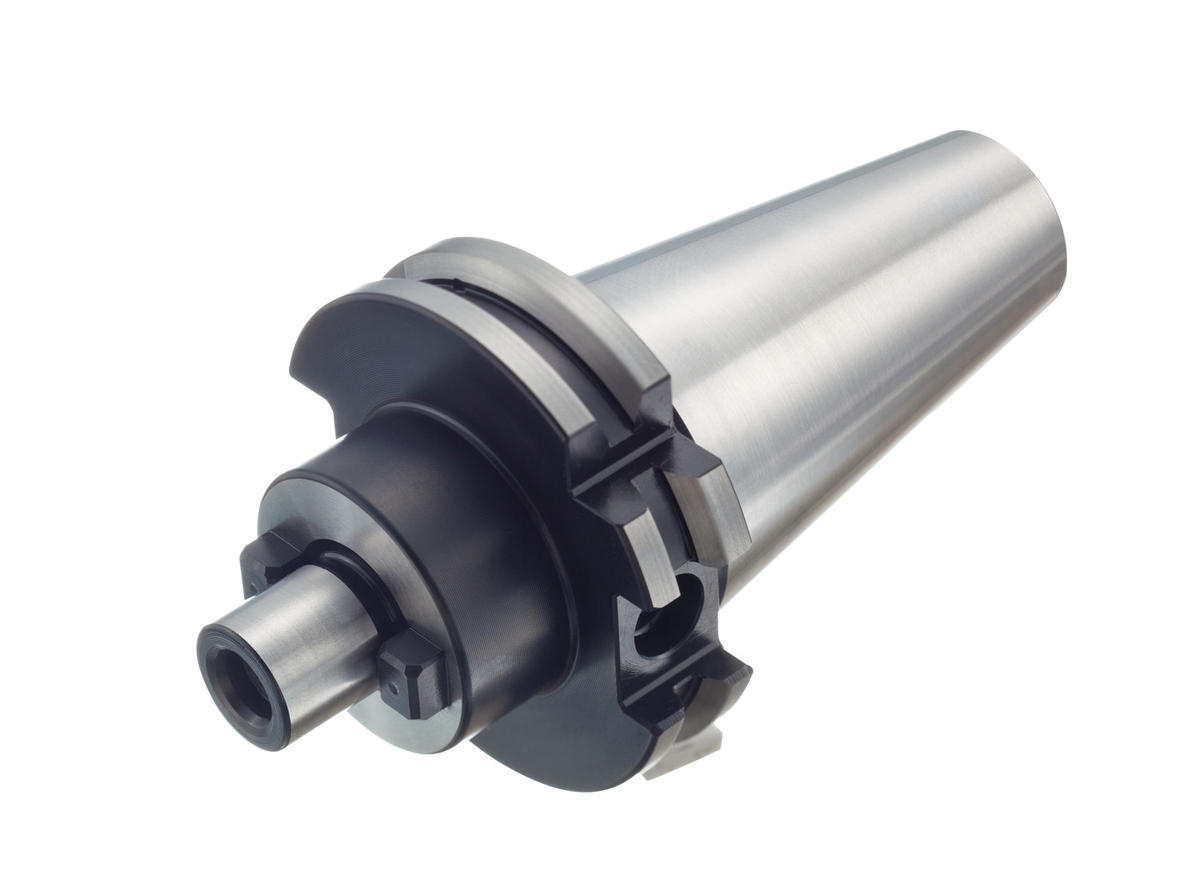

| Short Description | ISO 7388-1 to arbor adaptor |
| Unit Of Measure | Metric |
| Overall Length | 100 mm |
| Overall Length (Decimal) | 3.94 |
| Overall Length (Metric) | 100 |
| ANSI Code | A1B05-40 16 100 |
| Coolant Through | Yes |
| Body Diameter (Decimal) | 2.5 |
| Body Diameter (Metric) | 63.5 |
| Body Length (Decimal) | 3.11 |
| Body Length (Metric) | 78.95 |
| Functional Diameter (Decimal) | 1.75 |
| Functional Diameter (Metric) | 44.45 |
| Connection Retention Knob Thread Size | M16 |
| Data Chip Provision Size | D10/H4,5 |
| Body Half Taper Angle | 0 degrees |
| Torque (ft lbf) | 16.226 |
| Torque (NM) | 22 |
| Coolant Pressure (Bar) | 80 |
| Coolant Entry Style Code | 7: decentral over flange and axial |
| Coolant Exit Style Code | 4: axial concentric on circle |
| Standard | AD/AF; ISO7388-1 |
| Balanced by Design | Yes |
| Data Chip Provision | Yes |
| Damping Property | No |
| Country of Origin | Slovenia |
| Base Item Number | 2099 |
| Body Length (Inch) | 3.11 |
| Coolant Pressure (lbf/in2) | 1160.3 |
| Kappa (Z-Axis Rot) | 0 degrees |
| Max. Rotational Speed | 18000 1/min |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 3.247 LB |
