Sandvik Coromant
5721636
Sandvik Coromant 5721636
Specifications
| Material | Steel |
|---|---|

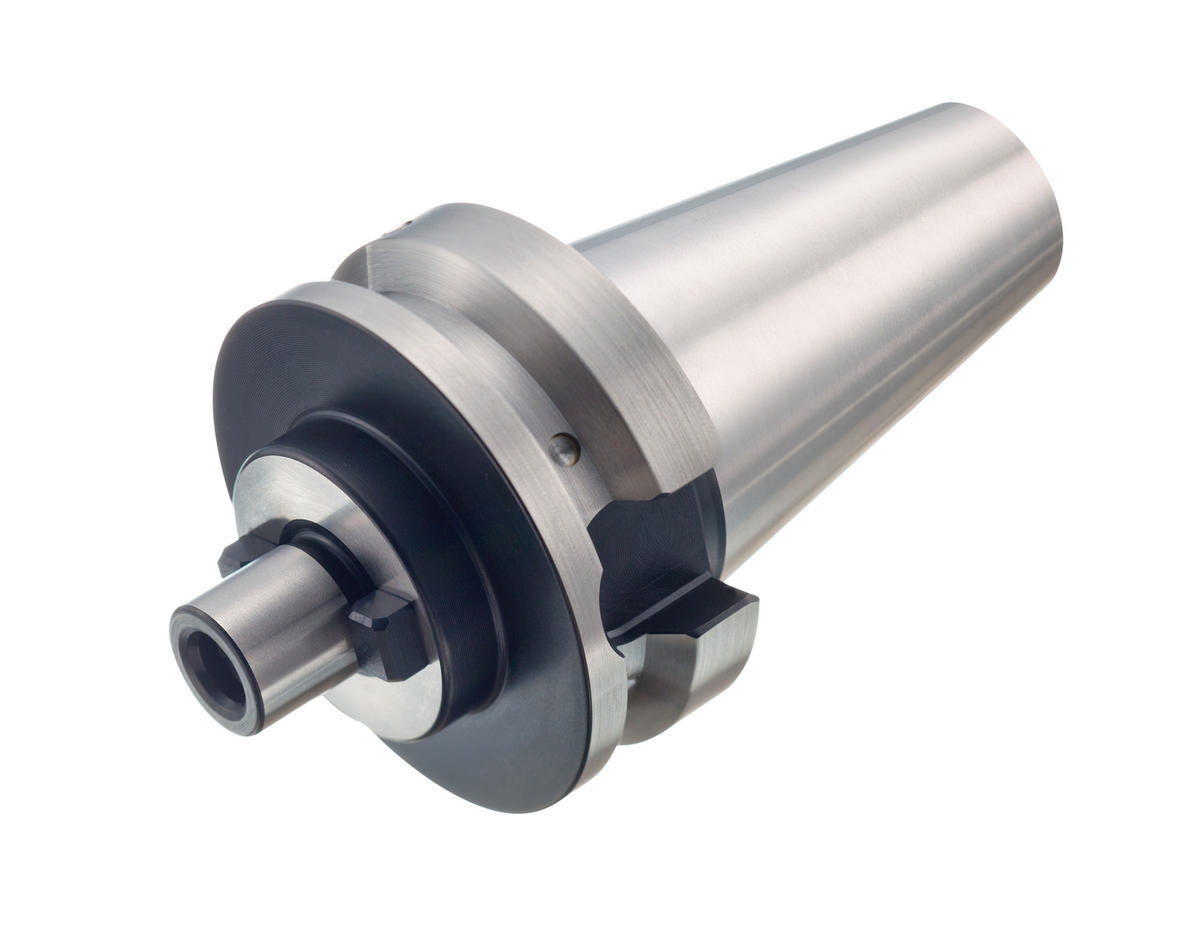

| Short Description | MAS-BT 403 to arbor adaptor |
| Unit Of Measure | Metric |
| Overall Length | 55 mm |
| Overall Length (Decimal) | 2.17 |
| Overall Length (Metric) | 55 |
| ANSI Code | A2B05-50 27 055 |
| Coolant Through | Yes |
| Body Diameter (Decimal) | 3.94 |
| Body Diameter (Metric) | 100 |
| Body Length (Decimal) | 0.55 |
| Body Length (Metric) | 14 |
| Functional Diameter (Decimal) | 2.75 |
| Functional Diameter (Metric) | 69.85 |
| Connection Retention Knob Thread Size | M24 |
| Data Chip Provision Size | D10/H4,5 |
| Body Half Taper Angle | 0 degrees |
| Torque (ft lbf) | 59.005 |
| Torque (NM) | 80 |
| Coolant Pressure (Bar) | 80 |
| Coolant Entry Style Code | 7: decentral over flange and axial |
| Coolant Exit Style Code | 4: axial concentric on circle |
| Balanced by Design | Yes |
| Data Chip Provision | Yes |
| Damping Property | No |
| Country of Origin | Slovenia |
| Base Item Number | 2099 |
| Body Length (Inch) | 0.55 |
| Coolant Pressure (lbf/in2) | 1160.3 |
| Kappa (Z-Axis Rot) | 0 degrees |
| Max. Rotational Speed | 12000 1/min |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 9.392 LB |
