Sandvik Coromant
5721780

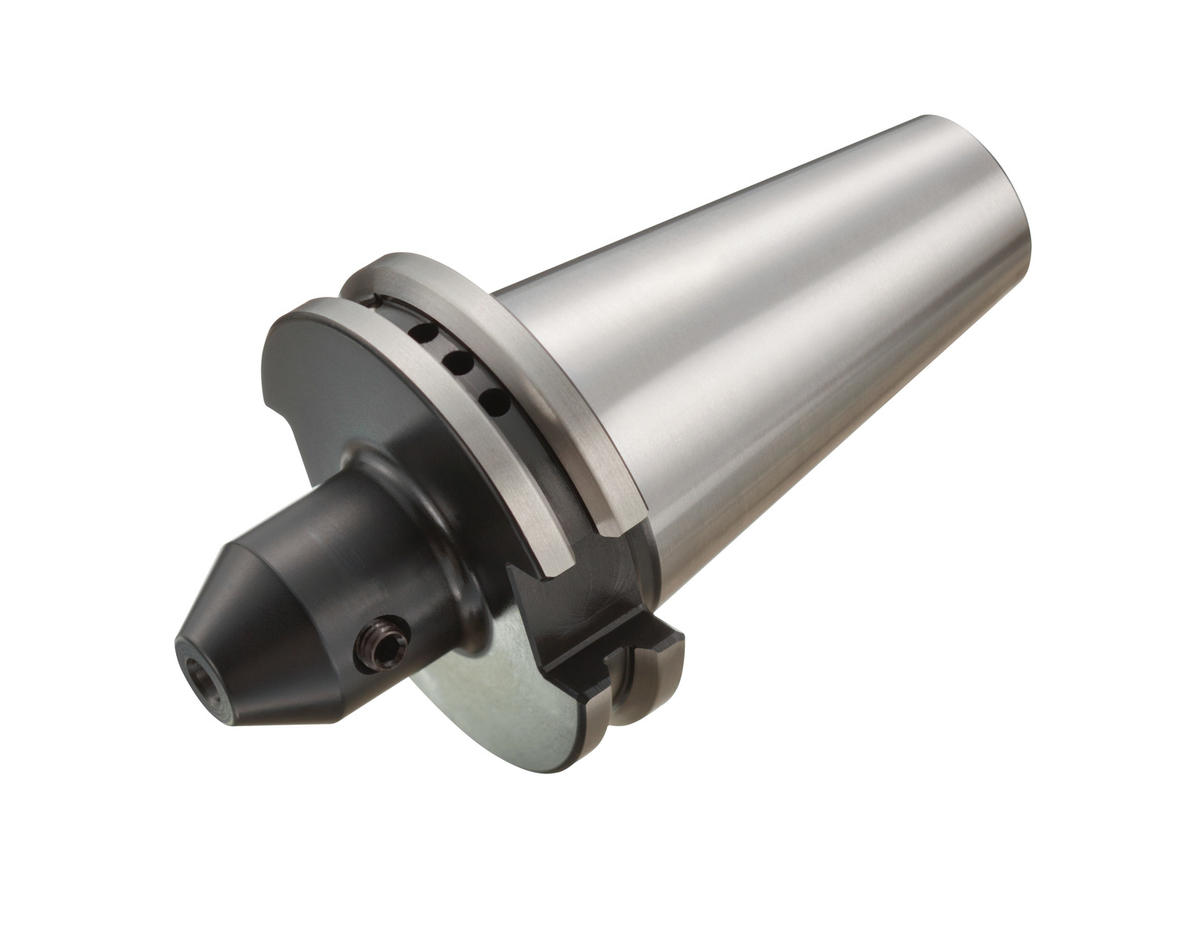

Sandvik Coromant 5721780
Specifications
| Material | Steel |
|---|---|
| Short Description | ISO 7388-1 to Weldon adaptor |
| Unit Of Measure | Metric |
| Overall Length | 160 mm |
| Overall Length (Decimal) | 6.3 |
| Overall Length (Metric) | 160 |
| ANSI Code | A1B20-50 32 160 |
| Coolant Through | Yes |
| Body Diameter (Decimal) | 2.84 |
| Body Diameter (Metric) | 72 |
| Body Length (Decimal) | 0.47 |
| Body Length (Metric) | 12 |
| Functional Diameter (Decimal) | 2.75 |
| Functional Diameter (Metric) | 69.85 |
| Clamping Length (Decimal) | 2.52 |
| Clamping Length (Metric) | 64 |
| Connection Retention Knob Thread Size | M24 |
| Data Chip Provision Size | D10/H4,5 |
| Body Half Taper Angle | 30 degrees |
| Torque (ft lbf) | 33.19 |
| Torque (NM) | 45 |
| Coolant Pressure (Bar) | 20 |
| Coolant Entry Style Code | 7: decentral over flange and axial |
| Coolant Exit Style Code | 1: axial concentric exit |
| Standard | AD/AF; ISO7388-1 |
| Balanced by Design | Yes |
| Data Chip Provision | Yes |
| Damping Property | No |
| Country of Origin | Slovenia |
| Base Item Number | 2099 |
| Body Length (Inch) | 0.47 |
| Coolant Pressure (lbf/in2) | 290.075 |
| Kappa (Z-Axis Rot) | 0 degrees |
| Max. Rotational Speed | 12000 1/min |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 14.551 LB |
