Sandvik Coromant
5721967

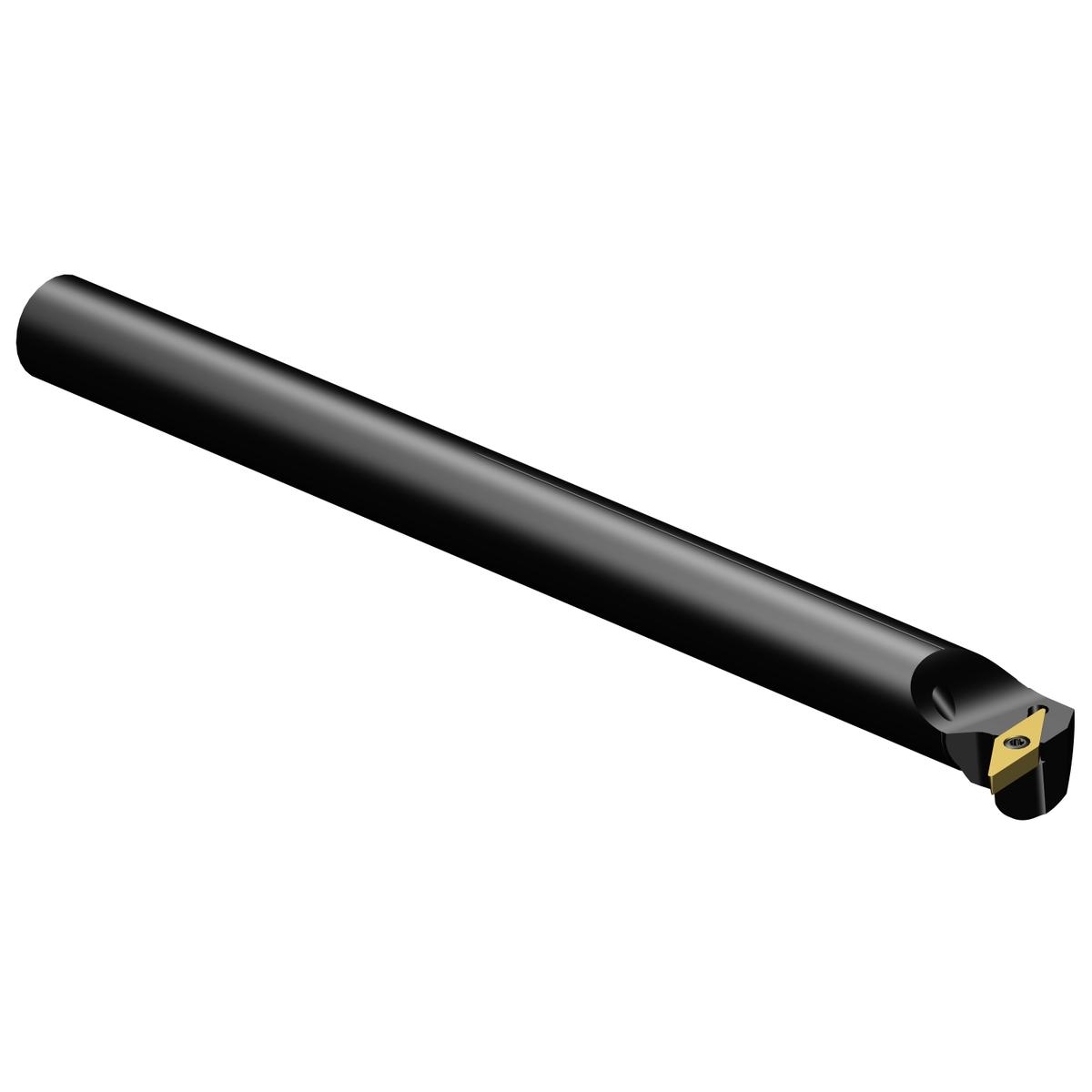

Sandvik Coromant 5721967
Specifications
| Minimum Bore Diameter (Metric) | 22 |
|---|---|
| Minimum Bore Diameter (Inch) | 0.87 |
| Shank Diameter (Metric) | 16 |
| Direction Of Hand | Left |
| Overall Length (Metric) | 200 |
| Shank Diameter (Inch) | 0.63 |
| Overall Length (Inch) | 7.87 |
| Short Description | CoroTurn® 107 boring bar for turning |
| Unit Of Measure | Metric |
| Series | CoroTurn 107 |
| Orthogonal Rake Angle | 0 degrees |
| Overall Length | 200 mm |
| Shank Diameter | 16 mm |
| Coolant Through | Yes |
| Tool Lead Angle | -3 degrees |
| ANSI Code | A16R-SVUBL 11-ERB1 |
| Body Material | Steel |
| Machine Side Body Angle | 0 degrees |
| Workpiece Side Body Angle | 0 degrees |
| Tool Cutting Edge Angle | 93 degrees |
| Body Diameter (Decimal) | 0.63 |
| Body Diameter (Metric) | 16 |
| Coolant Pressure | 580.151 lbf/in2 |
| Overall Width (Decimal) | 0.51 |
| Overall Width (Metric) | 13 |
| Inclination Angle | -6.465 degrees |
| Clamping Type Code | Screw/Clamp |
| Torque | 0.9 Nm |
| Coolant Entry Style Code | 1: Axial Concentric Entry |
| Coolant Exit Style Code | 3: Axial Inclined Exit |
| Country of Origin | United States |
| Base Item Number | 1053 |
| Max. Overhang (Decimal) | 2.52 |
| Max. Overhang (Metric) | 64 |
| Maximum Ramping Angle | 50 degrees |
| Min Bore Diameter | 22 mm |
| Min. Overhang (Decimal) | 0.95 |
| Min. Overhang (Metric) | 24 |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 0.58 LB |
| Height Packed Product Metric | 42 mm |
| Height Packed Product Imperial | 1.654 inch |
| ISO Code (packed) | A16R-SVUBL11-ERB1 |
| Length Packed Product Metric | 210 mm |
| Life Cycle State | 20 |
| ISO Code (unpacked) | A16R-SVUBL 11-ERB1 |
| Length Packed Product Imperial | 8.268 inch |
