Sandvik Coromant
5722488

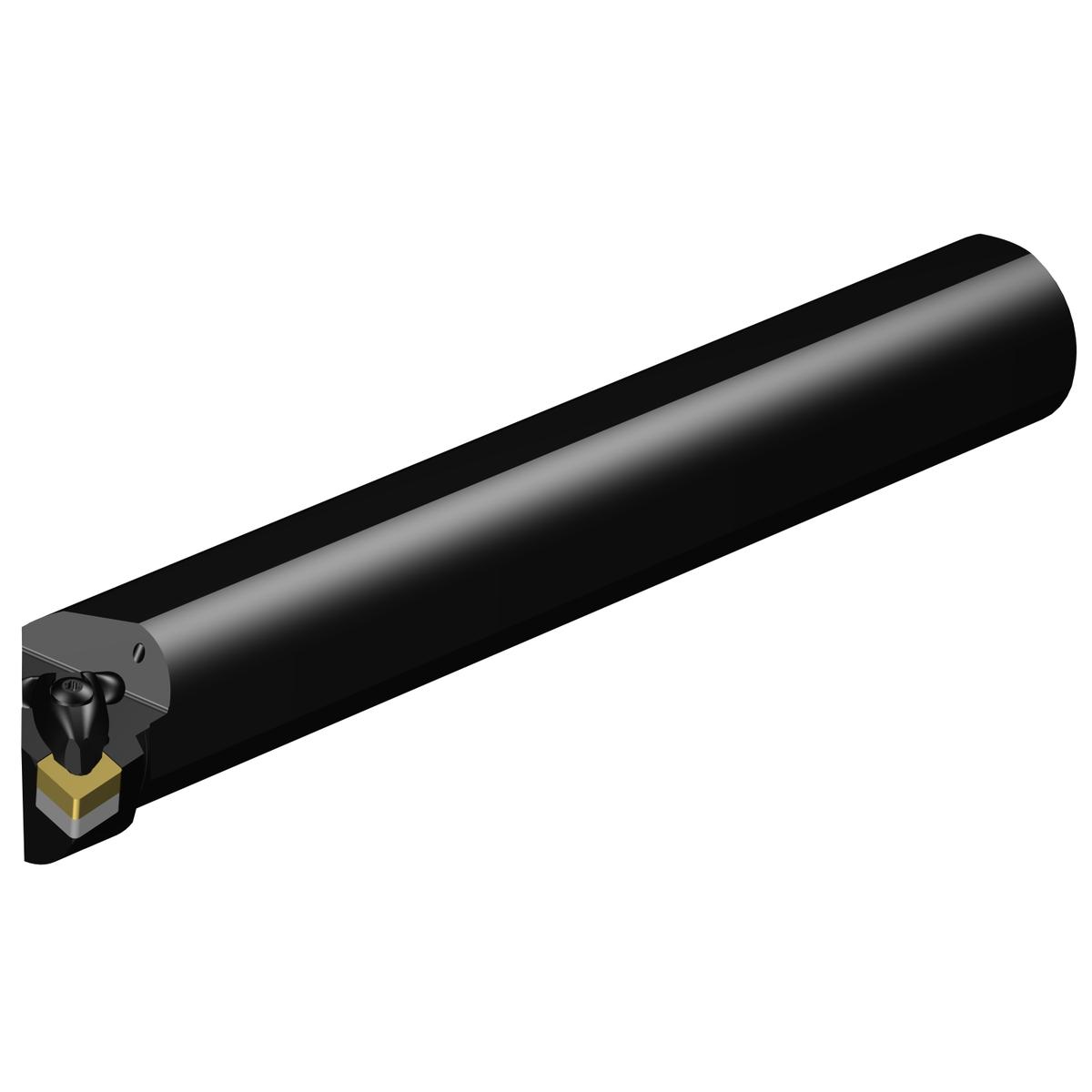

Sandvik Coromant 5722488
Specifications
| Minimum Bore Diameter (Metric) | 61 |
|---|---|
| Minimum Bore Diameter (Inch) | 2.4 |
| Shank Diameter (Metric) | 50.8 |
| Direction Of Hand | Right |
| Overall Length (Metric) | 355.6 |
| Shank Diameter (Inch) | 2 |
| Overall Length (Inch) | 14 |
| Short Description | T-Max® P boring bar for turning |
| Unit Of Measure | Imperial |
| Series | T-Max P |
| Shank Height (Metric) | 47.6 |
| Shank Height (Decimal) | 1.87 |
| Orthogonal Rake Angle | -6 degrees |
| Overall Length | 14 Inch |
| Shank Diameter | 2 Inch |
| Coolant Through | Yes |
| Tool Lead Angle | -5 degrees |
| ANSI Code | A32U-DCLNR 5 |
| Body Material | Steel |
| Machine Side Body Angle | 0 degrees |
| Workpiece Side Body Angle | 0 degrees |
| Tool Cutting Edge Angle | 95 degrees |
| Body Diameter (Decimal) | 2 |
| Body Diameter (Metric) | 50.8 |
| Coolant Pressure | 580.151 lbf/in2 |
| Overall Width (Decimal) | 1.28 |
| Overall Width (Metric) | 32.54 |
| Inclination Angle | -14 degrees |
| Clamping Type Code | Clamp |
| Torque | 6.4 Nm |
| Coolant Entry Style Code | 1: Axial Concentric Entry |
| Coolant Exit Style Code | 3: Axial Inclined Exit |
| Country of Origin | United States |
| Base Item Number | 1049 |
| Max. Overhang (Decimal) | 8 |
| Max. Overhang (Metric) | 203.2 |
| Maximum Ramping Angle | 0 degrees |
| Min Bore Diameter | 2.4 Inch |
| Min. Overhang (Decimal) | 3 |
| Min. Overhang (Metric) | 76.2 |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Weight | 10.869 LB |
| Height Packed Product Metric | 100 mm |
| Height Packed Product Imperial | 3.937 inch |
| ISO Code (packed) | A32U-DCLNR5 |
| Length Packed Product Metric | 490 mm |
| Life Cycle State | 20 |
| ISO Code (unpacked) | A32U-DCLNR 5 |
| Length Packed Product Imperial | 19.291 inch |
