Sandvik Coromant
5723154

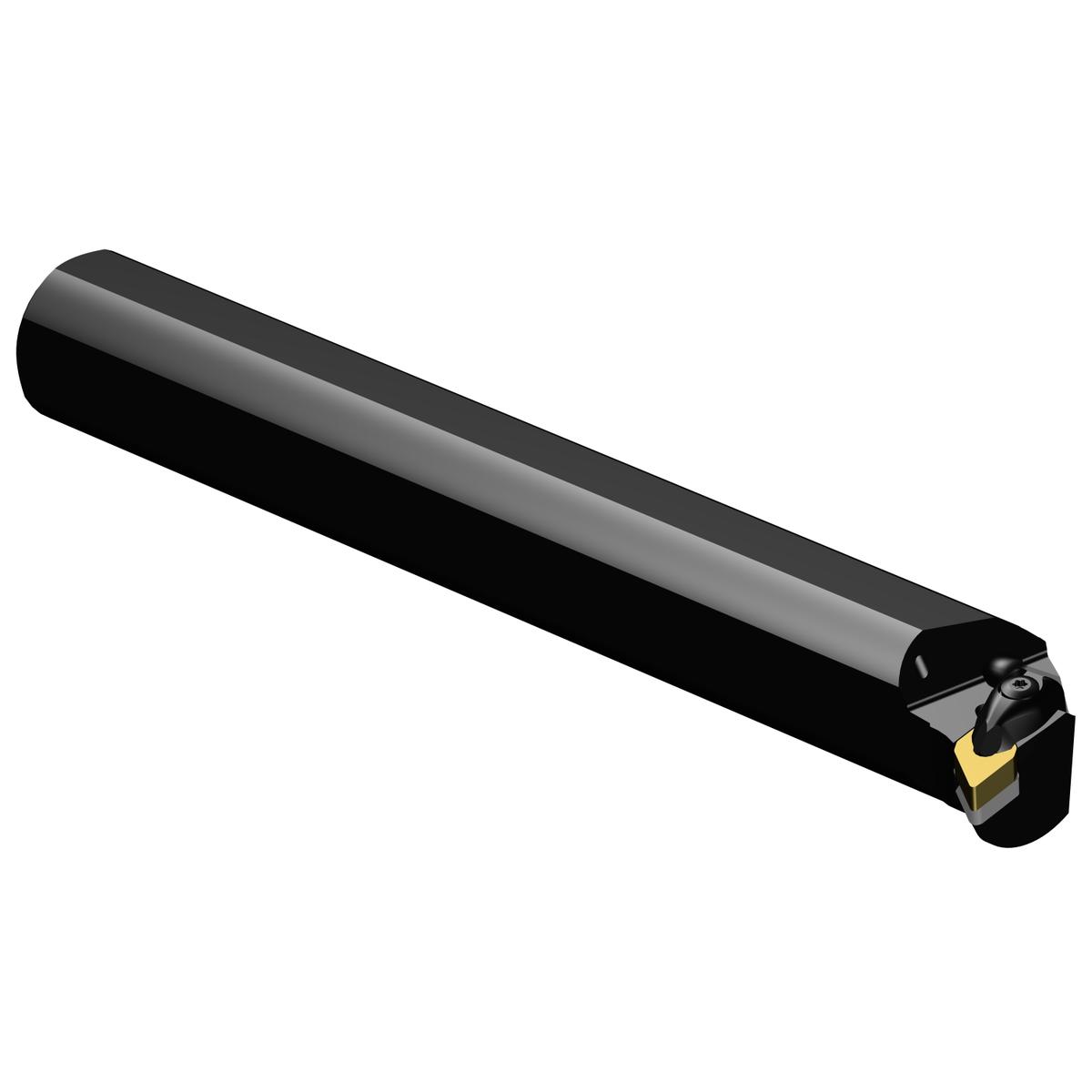

Sandvik Coromant 5723154
Specifications
| Minimum Bore Diameter (Metric) | 50 |
|---|---|
| Minimum Bore Diameter (Inch) | 1.97 |
| Shank Diameter (Metric) | 40 |
| Direction Of Hand | Left |
| Overall Length (Metric) | 300 |
| Shank Diameter (Inch) | 1.58 |
| Overall Length (Inch) | 11.81 |
| Short Description | T-Max® P boring bar for turning |
| Unit Of Measure | Metric |
| Series | T-Max P |
| Shank Height (Metric) | 37 |
| Shank Height (Decimal) | 1.46 |
| Orthogonal Rake Angle | -6 degrees |
| Overall Length | 300 mm |
| Shank Diameter | 40 mm |
| Coolant Through | Yes |
| Tool Lead Angle | -3 degrees |
| ANSI Code | A40T-DDUNL 15 |
| Body Material | Steel |
| Machine Side Body Angle | 0 degrees |
| Workpiece Side Body Angle | 0 degrees |
| Tool Cutting Edge Angle | 93 degrees |
| Body Diameter (Decimal) | 1.58 |
| Body Diameter (Metric) | 40 |
| Coolant Pressure | 580.151 lbf/in2 |
| Overall Width (Decimal) | 1.06 |
| Overall Width (Metric) | 27 |
| Inclination Angle | -11 degrees |
| Clamping Type Code | Clamp |
| Torque | 3.9 Nm |
| Coolant Entry Style Code | 1: Axial Concentric Entry |
| Coolant Exit Style Code | 3: Axial Inclined Exit |
| Country of Origin | Sweden |
| Base Item Number | 1049 |
| Max. Overhang (Decimal) | 6.3 |
| Max. Overhang (Metric) | 160 |
| Maximum Ramping Angle | 27 degrees |
| Min Bore Diameter | 50 mm |
| Min. Overhang (Decimal) | 2.36 |
| Min. Overhang (Metric) | 60 |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 5.437 LB |
| Height Packed Product Metric | 60 mm |
| Height Packed Product Imperial | 2.362 inch |
| ISO Code (packed) | A40T-DDUNL15 |
| Length Packed Product Metric | 315 mm |
| Life Cycle State | 20 |
| ISO Code (unpacked) | A40T-DDUNL 15 |
| Length Packed Product Imperial | 12.402 inch |
