Sandvik Coromant
5723284

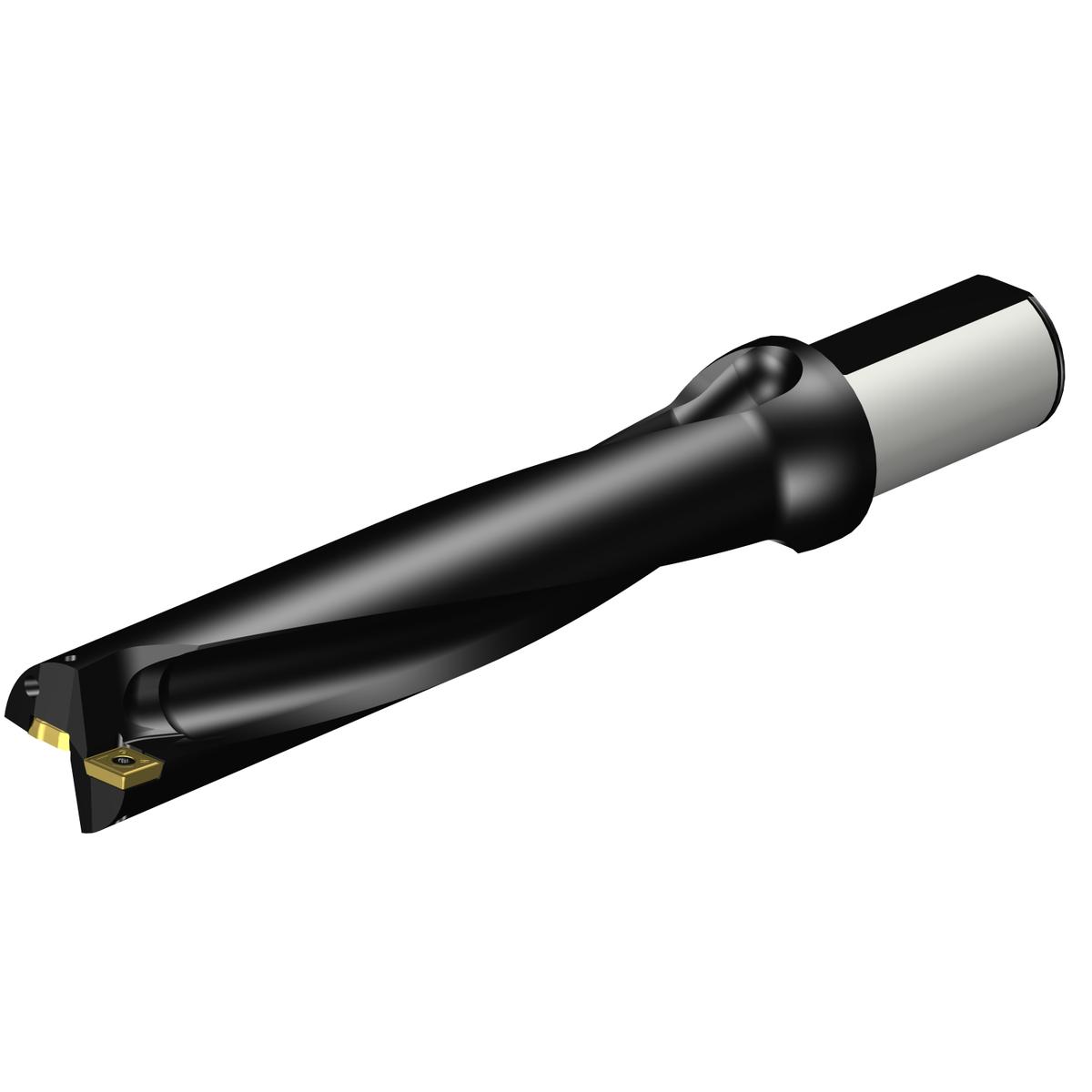

Sandvik Coromant 5723284
Specifications
| Cutting Diameter (Metric) | 39.68 |
|---|---|
| Shank Diameter (Metric) | 38.1 |
| Series | CoroDrill 880 |
| Cutting Diameter (Inch) | 1.56 |
| Shank Diameter (Inch) | 1.5 |
| Depth x Diameter Ratio | 5 x D |
| Short Description | CoroDrill® 880 indexable insert drill |
| Unit Of Measure | Imperial |
| Cutting Diameter | 1.56 Inch |
| Shank Type | Cylindrical |
| Shank Diameter | 1.5 Inch |
| Coolant Through | Yes |
| ANSI Code | A880-D1562LX38-05 |
| Overall Length (Decimal) | 11.84 |
| Overall Length (Metric) | 300.76 |
| Functional Length (Decimal) | 9.06 |
| Point Length (Decimal) | 0.03 |
| Point Length (Metric) | 0.62 |
| Functional Length (Metric) | 230.14 |
| Body Length (Decimal) | 7.97 |
| Body Length (Metric) | 202.34 |
| Usable Length (Decimal) | 7.81 |
| Usable Length (Metric) | 198.37 |
| Cutting Edge Angle | 88 degrees |
| Clamping Type Code | Screw/Clamp |
| Achievable Hole Tolerance Upper (Decimal) | 0.02 |
| Achievable Hole Tolerance Upper (Metric) | 0.4 |
| Usable Length Diameter Ratio | 5 |
| Torque | 2 Nm |
| Coolant Pressure | 145.038 lbf/in2 |
| Coolant Entry Style Code | 1: Axial Concentric Entry |
| Country of Origin | United States |
| Base Item Number | 2013 |
| Body Length (Inch) | 7.97 |
| Max. Adjustment Limit (Decimal) | 0.04 |
| Max. Adjustment Limit (Metric) | 0.92 |
| Max. Rotational Speed | 7500 1/min |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Weight | 3.971 LB |
| Height Packed Product Metric | 105 mm |
| Height Packed Product Imperial | 4.134 inch |
| ISO Code (packed) | A880-D1562LX38-05 |
| Length Packed Product Metric | 480 mm |
| Life Cycle State | 20 |
| ISO Code (unpacked) | A880-D1562LX38-05 |
| Length Packed Product Imperial | 18.898 inch |
