Sandvik Coromant
5723461
Sandvik Coromant 5723461
Specifications
| Cutting Diameter (Metric) | 13.49 |
|---|---|
| Shank Diameter (Metric) | 19.05 |
| Series | CoroDrill 880 |
| Cutting Diameter (Inch) | 0.53 |
| Shank Diameter (Inch) | 0.75 |
| Depth x Diameter Ratio | 2 x D |

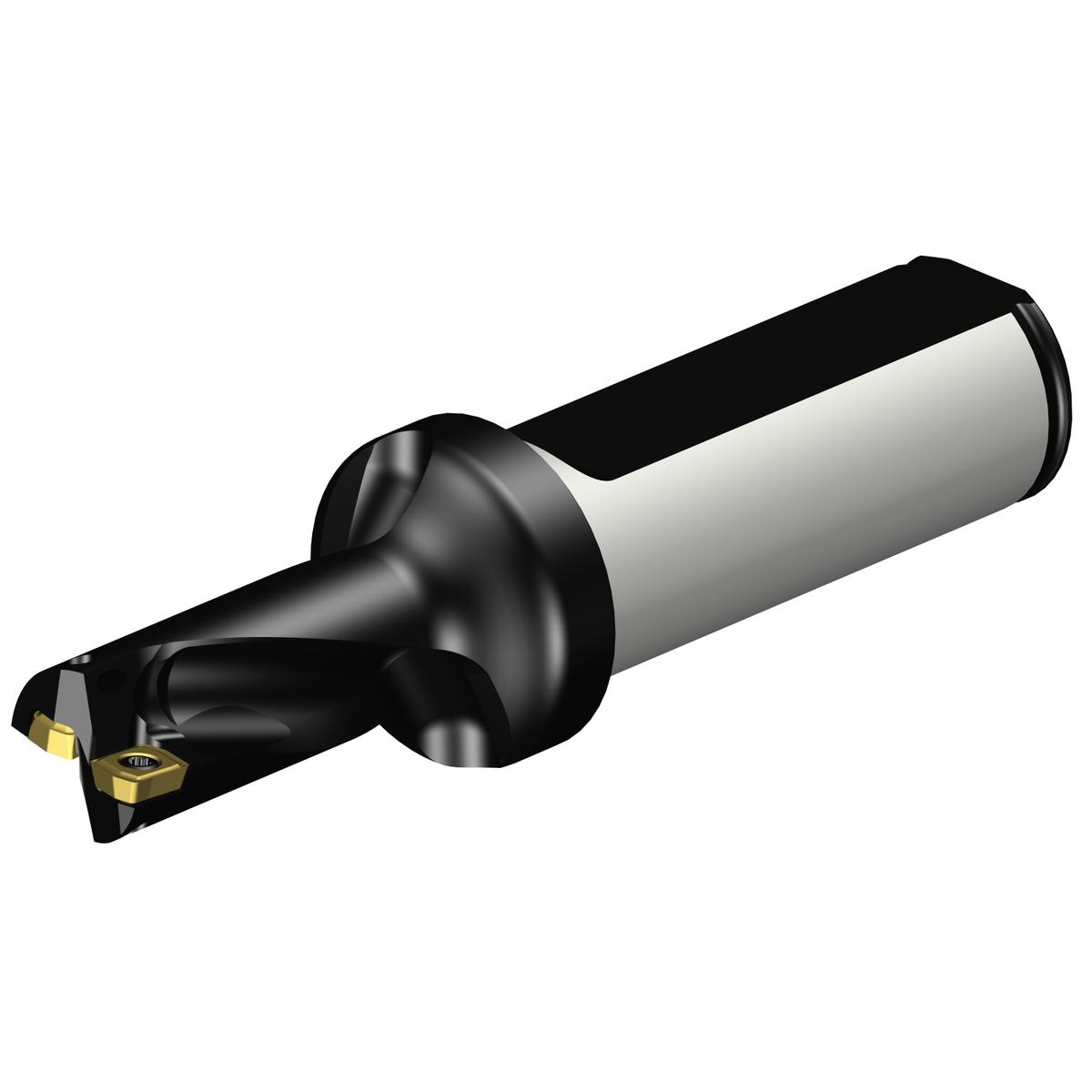

| Short Description | CoroDrill® 880 indexable insert drill |
| Unit Of Measure | Imperial |
| Cutting Diameter | 0.53 Inch |
| Shank Type | Cylindrical |
| Shank Diameter | 0.75 Inch |
| Coolant Through | Yes |
| ANSI Code | A880-D0531LX19-02 |
| Overall Length (Decimal) | 3.64 |
| Overall Length (Metric) | 92.37 |
| Functional Length (Decimal) | 1.65 |
| Point Length (Decimal) | 0.02 |
| Point Length (Metric) | 0.39 |
| Functional Length (Metric) | 41.98 |
| Body Length (Decimal) | 1.17 |
| Body Length (Metric) | 29.67 |
| Usable Length (Decimal) | 1.06 |
| Usable Length (Metric) | 26.98 |
| Cutting Edge Angle | 79 degrees |
| Clamping Type Code | Screw/Clamp |
| Achievable Hole Tolerance Upper (Decimal) | 0.01 |
| Achievable Hole Tolerance Upper (Metric) | 0.25 |
| Usable Length Diameter Ratio | 2 |
| Torque | 0.6 Nm |
| Coolant Pressure | 145.038 lbf/in2 |
| Coolant Entry Style Code | 1: Axial Concentric Entry |
| Country of Origin | United States |
| Base Item Number | 2013 |
| Body Length (Inch) | 1.17 |
| Max. Adjustment Limit (Decimal) | 0.01 |
| Max. Adjustment Limit (Metric) | 0.25 |
| Max. Rotational Speed | 33000 1/min |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Weight | 0.322 LB |
| Height Packed Product Metric | 35 mm |
| Height Packed Product Imperial | 1.378 inch |
| ISO Code (packed) | A880-D0531LX19-02 |
| Length Packed Product Metric | 127 mm |
| Life Cycle State | 20 |
| ISO Code (unpacked) | A880-D0531LX19-02 |
| Length Packed Product Imperial | 5 inch |
