Sandvik Coromant
5723641
Sandvik Coromant 5723641
Specifications
| Shank Diameter (Metric) | 19.05 |
|---|---|
| Series | CoroMill 690 |
| Direction Of Hand | Right |
| Overall Length (Inch) | 2.99 |
| Material | Steel |
| Shank Diameter (Inch) | 0.75 |
| Cutting Diameter (Metric) | 50.8 |
| Cutting Diameter (Inch) | 2 |
| Overall Length (Metric) | 76 |

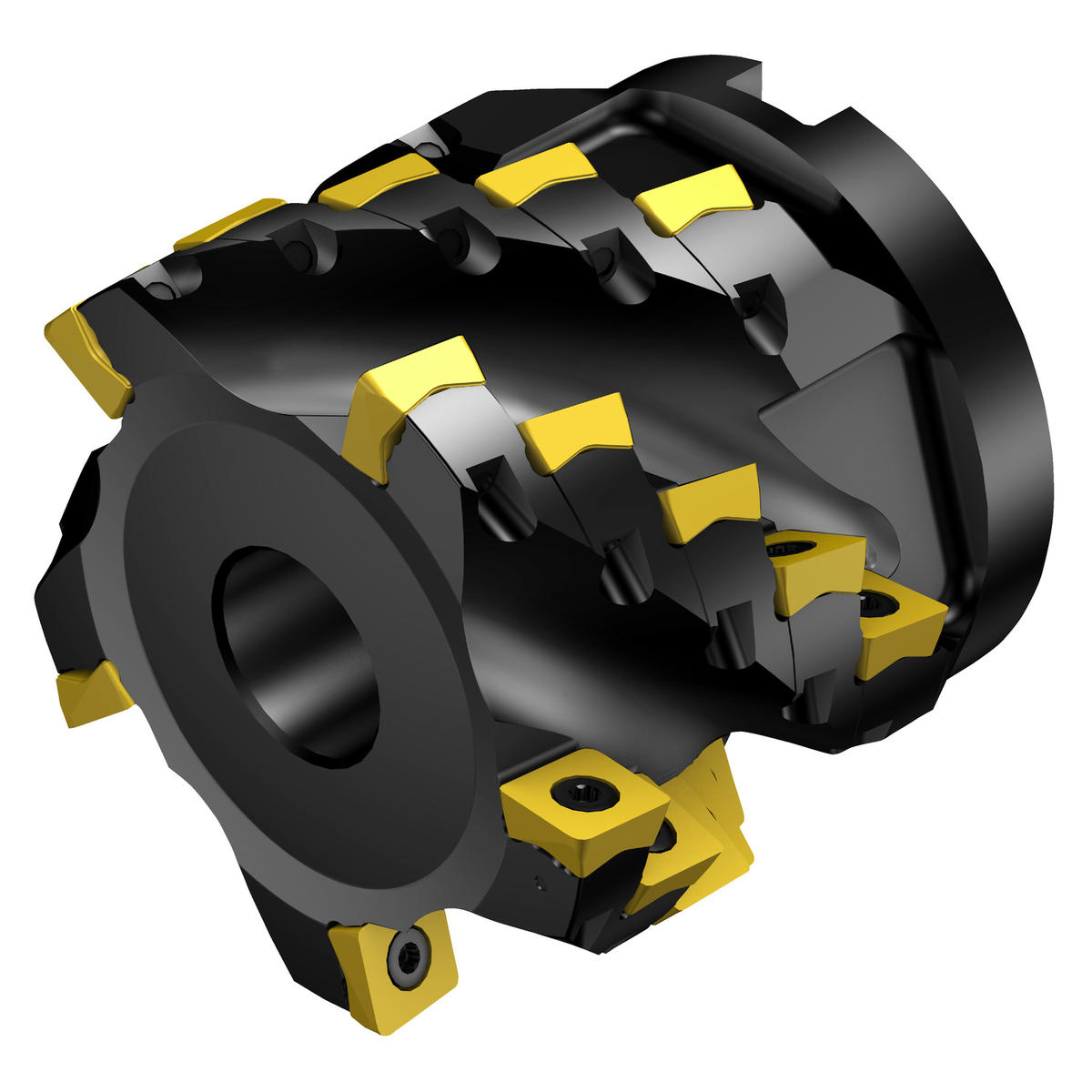

| Short Description | CoroMill® 690 long edge square shoulder milling cutter |
| Unit Of Measure | Imperial |
| Cutting Diameter | 2 Inch |
| Shank Diameter | 0.75 Inch |
| ANSI Code | A690-051R19-1046H |
| Coolant Through | No |
| Center Cutting Capability | No |
| Tool Cutting Edge Angle | 90 degrees |
| Clamping Type | Screw/Clamp |
| Torque | 3 Nm |
| Coolant Entry Style Code | 0: Without Coolant |
| Standard | A; ISO6462 |
| Cutting Pitch Differential | No |
| Damping Property | No |
| Country of Origin | United States |
| Base Item Number | 2008 |
| Max. Depth Of Cut | 1.81 Inch |
| Max. Depth Of Cut (Decimal) | 1.81 |
| Max. Depth Of Cut (Metric) | 46 |
| Max. Rotational Speed | 5000 1/min |
| Maximum Depth Of Cut (Inch) | 1.81 |
| Maximum Depth Of Cut (Metric) | 46 |
| Maximum Ramping Angle | 0 degrees |
| Number Of Inserts | 3 |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Weight | 2.205 LB |
