Sandvik Coromant
5723656
Sandvik Coromant 5723656
Specifications
| Shank Diameter (Metric) | 63 |
|---|---|
| Series | CoroMill 690 |
| Direction Of Hand | Right |
| Overall Length (Inch) | 4.02 |
| Material | Steel |
| Shank Diameter (Inch) | 2.48 |
| Cutting Diameter (Metric) | 63.5 |
| Cutting Diameter (Inch) | 2.5 |
| Overall Length (Metric) | 102 |

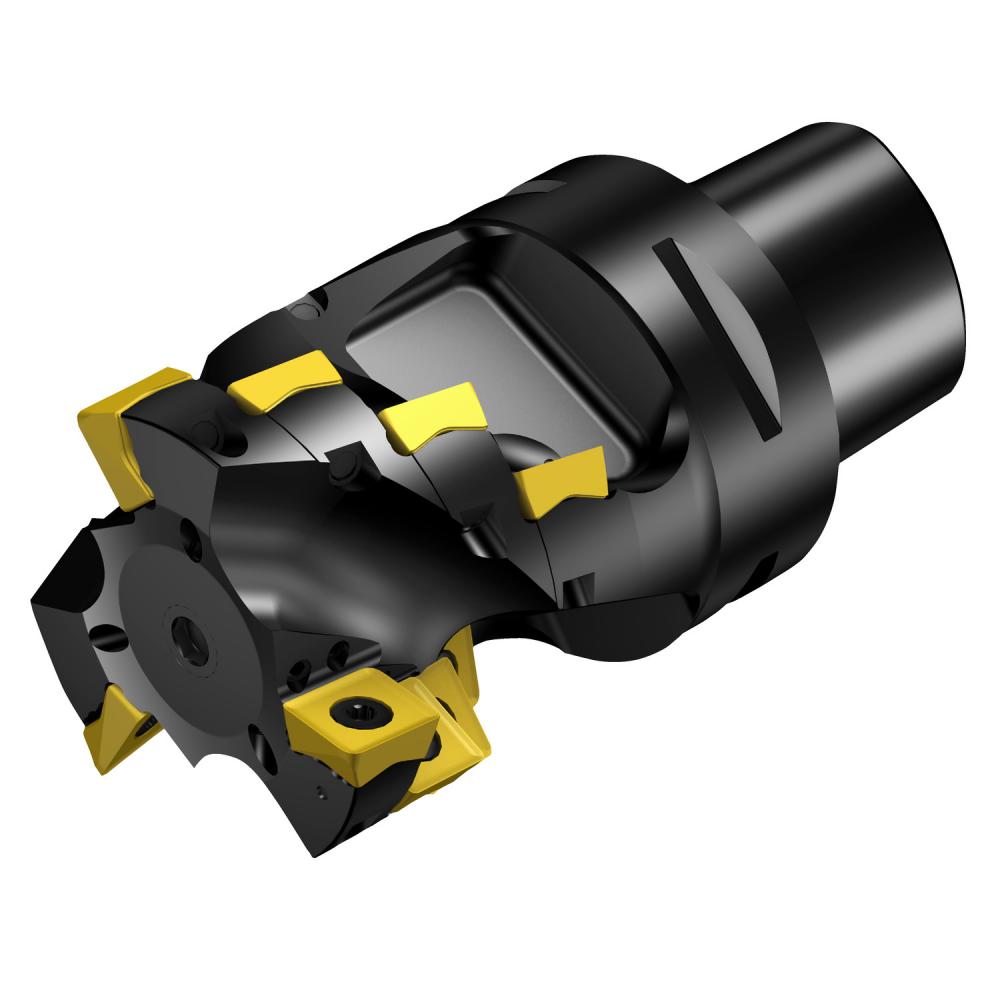

| Short Description | CoroMill® 690 long edge square shoulder milling cutter |
| Unit Of Measure | Imperial |
| Cutting Diameter | 2.5 Inch |
| Shank Diameter | 2.48 Inch |
| ANSI Code | A690-063C6-1461H |
| Coolant Through | Yes |
| Usable Length (Decimal) | 2.95 |
| Usable Length (Metric) | 75 |
| Connection Size | C6 |
| Functional Diameter (Decimal) | 1.73 |
| Functional Diameter (Metric) | 44 |
| Center Cutting Capability | No |
| Tool Cutting Edge Angle | 90 degrees |
| Clamping Type | Screw/Clamp |
| Torque | 5 Nm |
| Coolant Pressure | 145.038 lbf/in2 |
| Coolant Entry Style Code | 3: Axial Concentric and Radial Entry |
| Standard | ISO26623-1 |
| Cutting Pitch Differential | No |
| Damping Property | No |
| Country of Origin | United States |
| Base Item Number | 2008 |
| Max. Depth Of Cut | 2.4 Inch |
| Max. Depth Of Cut (Decimal) | 2.4 |
| Max. Depth Of Cut (Metric) | 61 |
| Max. Rotational Speed | 5000 1/min |
| Maximum Depth Of Cut (Inch) | 2.4 |
| Maximum Depth Of Cut (Metric) | 61 |
| Maximum Ramping Angle | 0 degrees |
| Number Of Inserts | 3 |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Weight | 3.64 LB |
