Sandvik Coromant
5724084

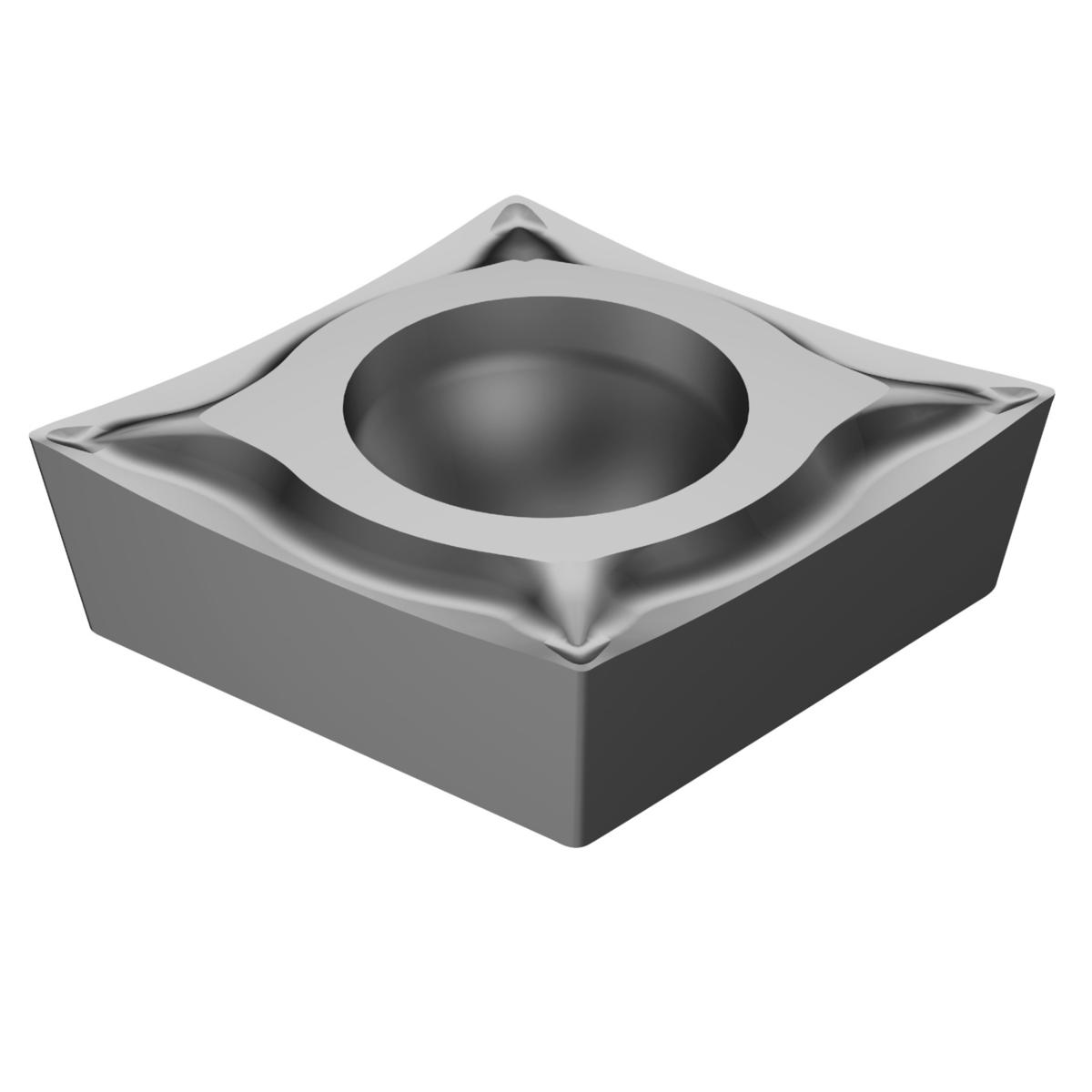

Sandvik Coromant 5724084
Specifications
| Coating/Finish | Uncoated |
|---|---|
| Thickness (Metric) | 3.97 |
| Corner Radius (Metric) | 0.1 |
| Material | Cermets |
| Size | 32.503 |
| Style | CCGT |
| Thickness (Inch) | 0.16 |
| Short Description | CoroTurn® 107 insert for turning |
| Grade | 5015 |
| Unit Of Measure | Metric |
| Inscribed Circle Diameter | 9.53 mm |
| Inscribed Circle Diameter (Decimal) | 0.38 |
| Inscribed Circle Diameter (Metric) | 9.53 |
| Clearance Angle Major | 7 degrees |
| Length (Decimal) | 0.38 |
| Length (Metric) | 9.57 |
| Shape | Diamond |
| Country of Origin | India |
| Series | CoroTurn 107 |
| Chip Breaker Type | UM |
| ANSI Code | CCGT 3(2.5)03-UM 5015 |
| ISO Code | CCGT 09 T3 01-UM 5015 |
| Hand of Insert | Neutral |
| Fixing Hole Diameter (Decimal) | 0.17 |
| Fixing Hole Diameter (Metric) | 4.4 |
| Coating Process Type | Uncoat |
| Operation Type | Medium |
| Mounting Style | Screw/Clamp |
| Substrate Type | Cermet |
| Number of Cutting Edges | 2 |
| Wiper Edge Property | No |
| Application | Turning, General |
| ISO Material Classification | PK |
| Base Item Number | 1053 |
| Length | 9.57 mm |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 0.006 LB |
| Height Packed Product Metric | 13.5 mm |
| Insert Style | CCGT |
| Height Packed Product Imperial | 0.531 inch |
| ISO Code (packed) | CCGT09T301-UM5015 |
| Insert Size | 32.503 |
| Length Packed Product Metric | 95 mm |
| Life Cycle State | 20 |
| ISO Code (unpacked) | CCGT 09 T3 01-UM 5015 |
| Length Packed Product Imperial | 3.74 inch |
