Sandvik Coromant
5726007

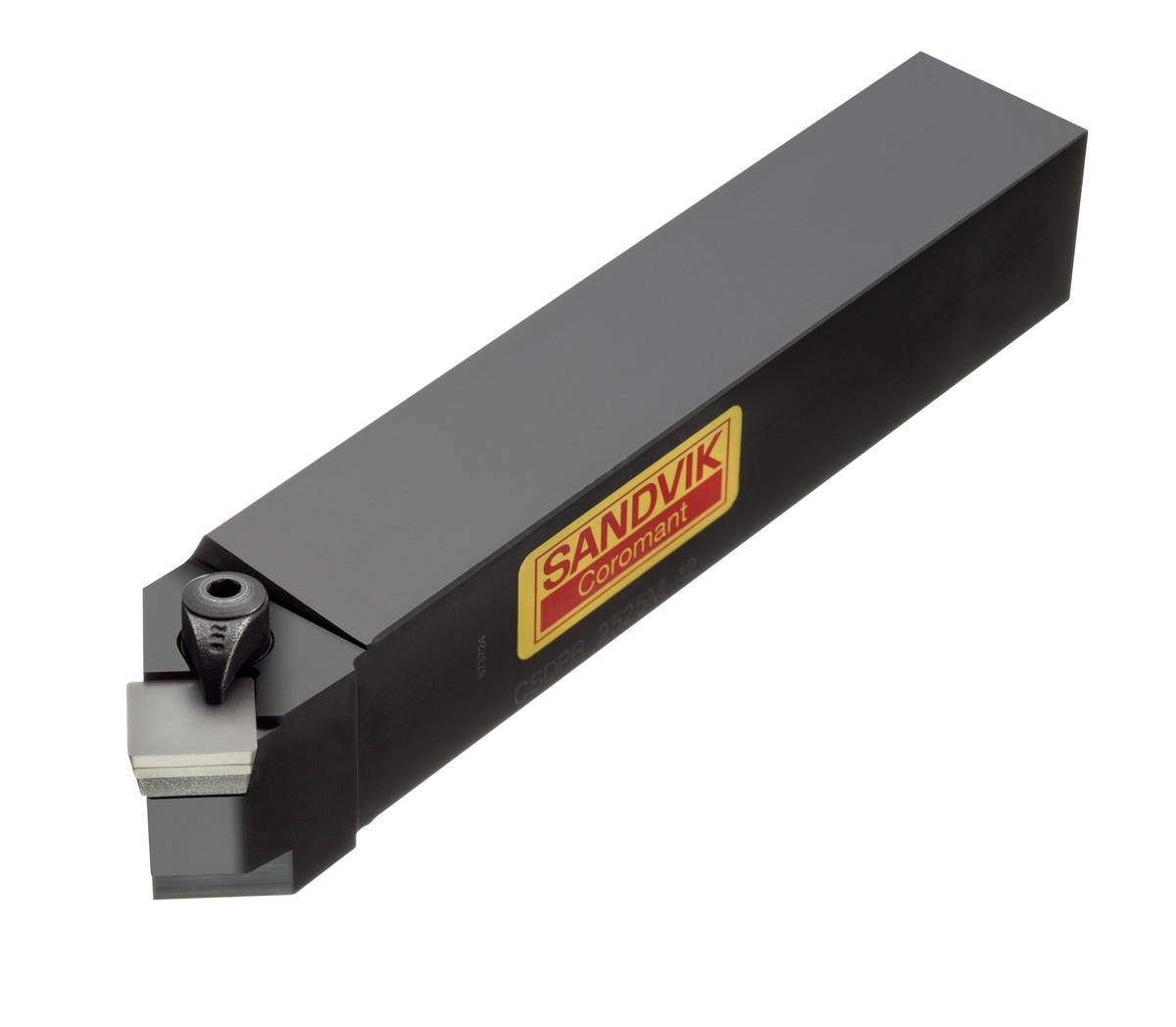

Sandvik Coromant 5726007
Specifications
| Overall Length (Metric) | 116.7 |
|---|---|
| Series | T-Max S |
| Tool Lead Angle | 45 degrees |
| Overall Length (Inch) | 4.59 |
| Insert Style | CSDPR/L |
| Short Description | T-Max® S shank tool for turning |
| Direction Of Hand | Right |
| Unit Of Measure | Metric |
| Material | Steel |
| Shank Width | 20 mm |
| Orthogonal Rake Angle | 6 degrees |
| Shank Width (Decimal) | 1.06 |
| Shank Width (Metric) | 20 |
| Shank Height (Metric) | 20 |
| Inclination Angle | 0 degrees |
| Protruding Length (Decimal) | 4.92 |
| Protruding Length (Metric) | 125.02 |
| Overall Height (Metric) | 20 |
| Overall Height (Decimal) | 0.79 |
| Overall Length | 116.7 mm |
| Insert Compatibility | SPUN 120308 |
| ANSI Code | CSDPR 2020K 12 |
| Coolant Through | No |
| Overall Width (Decimal) | 0.87 |
| Overall Width (Metric) | 22 |
| Shank Height (Decimal) | 0.79 |
| Clamping Type Code | Clamp |
| Torque | 5 Nm |
| Machine Side Body Angle | 0 degrees |
| Workpiece Side Body Angle | 0 degrees |
| Tool Cutting Edge Angle | 45 degrees |
| Coolant Entry Style Code | 0: Without Coolant |
| Coolant Exit Style Code | 0: No Coolant Exit |
| Country of Origin | Sweden |
| Base Item Number | 1057 |
| Max. Overhang (Decimal) | 0.74 |
| Max. Overhang (Metric) | 18.68 |
| Maximum Ramping Angle | 0 degrees |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 0.763 LB |
