Sandvik Coromant
5726080

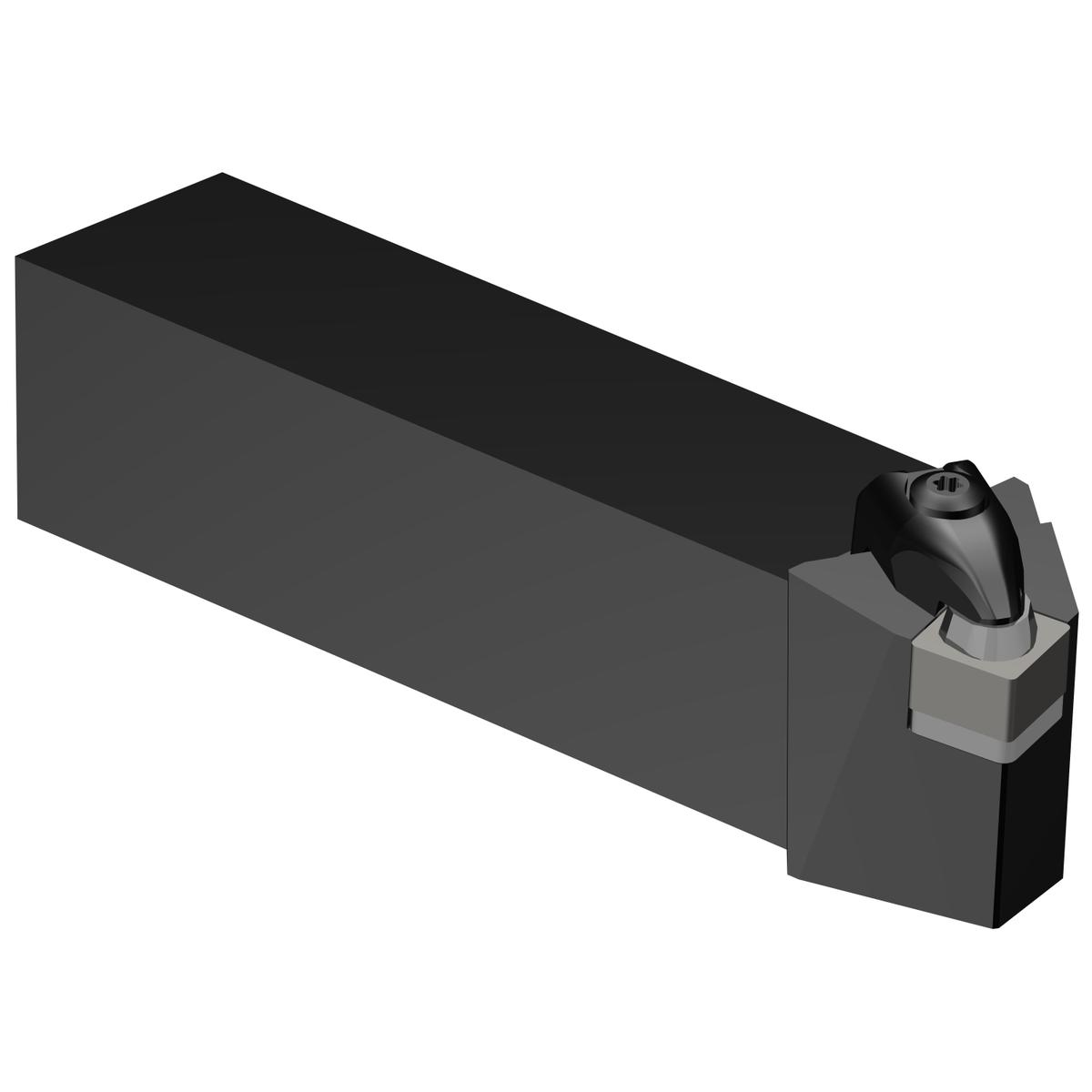

Sandvik Coromant 5726080
Specifications
| Overall Length (Metric) | 152.4 |
|---|---|
| Series | T-Max |
| Tool Lead Angle | 15 degrees |
| Overall Length (Inch) | 6 |
| Insert Style | CSRNR/L (INCH) |
| Short Description | T-Max® shank tool for turning |
| Direction Of Hand | Left |
| Unit Of Measure | Imperial |
| Material | Steel |
| Shank Width | 1.25 Inch |
| Orthogonal Rake Angle | -6 degrees |
| Shank Width (Decimal) | 1.06 |
| Shank Width (Metric) | 31.75 |
| Shank Height (Metric) | 31.75 |
| Inclination Angle | -6 degrees |
| Overall Height (Metric) | 31.75 |
| Overall Height (Decimal) | 1.25 |
| Overall Length | 6 Inch |
| Insert Compatibility | SNGN 120708 |
| ANSI Code | CSRNL 204DM1-4 |
| Coolant Through | No |
| Overall Width (Decimal) | 1.29 |
| Overall Width (Metric) | 32.82 |
| Shank Height (Decimal) | 1.25 |
| Clamping Type Code | Clamp |
| Torque | 3.9 Nm |
| Machine Side Body Angle | 0 degrees |
| Workpiece Side Body Angle | 0 degrees |
| Tool Cutting Edge Angle | 75 degrees |
| Coolant Entry Style Code | 0: Without Coolant |
| Coolant Exit Style Code | 0: No Coolant Exit |
| Country of Origin | Sweden |
| Base Item Number | 1026 |
| Max. Overhang (Decimal) | 1.35 |
| Max. Overhang (Metric) | 34.29 |
| Maximum Ramping Angle | 10 degrees |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Weight | 2.46 LB |
