Sandvik Coromant
5726301

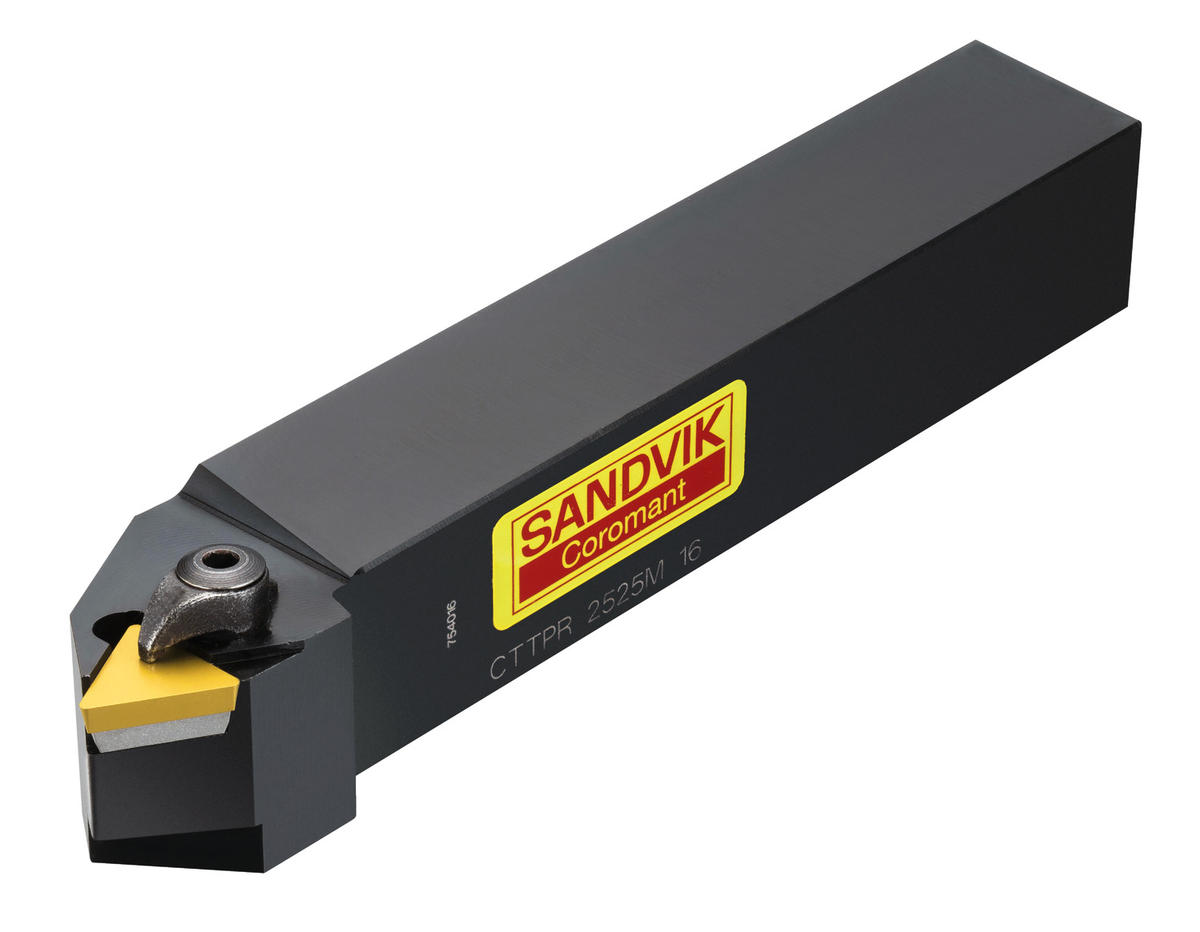

Sandvik Coromant 5726301
Specifications
| Overall Length (Metric) | 150 |
|---|---|
| Series | T-Max S |
| Tool Lead Angle | 30 degrees |
| Overall Length (Inch) | 5.91 |
| Insert Style | CTTPR/L |
| Short Description | T-Max® S shank tool for turning |
| Direction Of Hand | Left |
| Unit Of Measure | Metric |
| Material | Steel |
| Shank Width | 25 mm |
| Orthogonal Rake Angle | 6 degrees |
| Shank Width (Decimal) | 1.06 |
| Shank Width (Metric) | 25 |
| Shank Height (Metric) | 25 |
| Inclination Angle | 0 degrees |
| Overall Height (Metric) | 25 |
| Overall Height (Decimal) | 0.98 |
| Overall Length | 150 mm |
| Insert Compatibility | TPUN 160308 |
| ANSI Code | CTTPL 2525M 16 |
| Coolant Through | No |
| Overall Width (Decimal) | 0.87 |
| Overall Width (Metric) | 22 |
| Shank Height (Decimal) | 0.98 |
| Clamping Type Code | Clamp |
| Torque | 5 Nm |
| Machine Side Body Angle | 0 degrees |
| Workpiece Side Body Angle | 0 degrees |
| Tool Cutting Edge Angle | 60 degrees |
| Coolant Entry Style Code | 0: Without Coolant |
| Coolant Exit Style Code | 0: No Coolant Exit |
| Country of Origin | Sweden |
| Base Item Number | 1057 |
| Max. Overhang (Decimal) | 1.56 |
| Max. Overhang (Metric) | 39.6 |
| Maximum Ramping Angle | 30 degrees |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 1.609 LB |
