Sandvik Coromant
5726375
Sandvik Coromant 5726375
Specifications
| Coating/Finish | TiAlN+TiN |
|---|---|
| Overall Length (Metric) | 47.25 |
| Coolant Fed | No |
| Material | Carbide |
| Overall Length (Inch) | 1.86 |

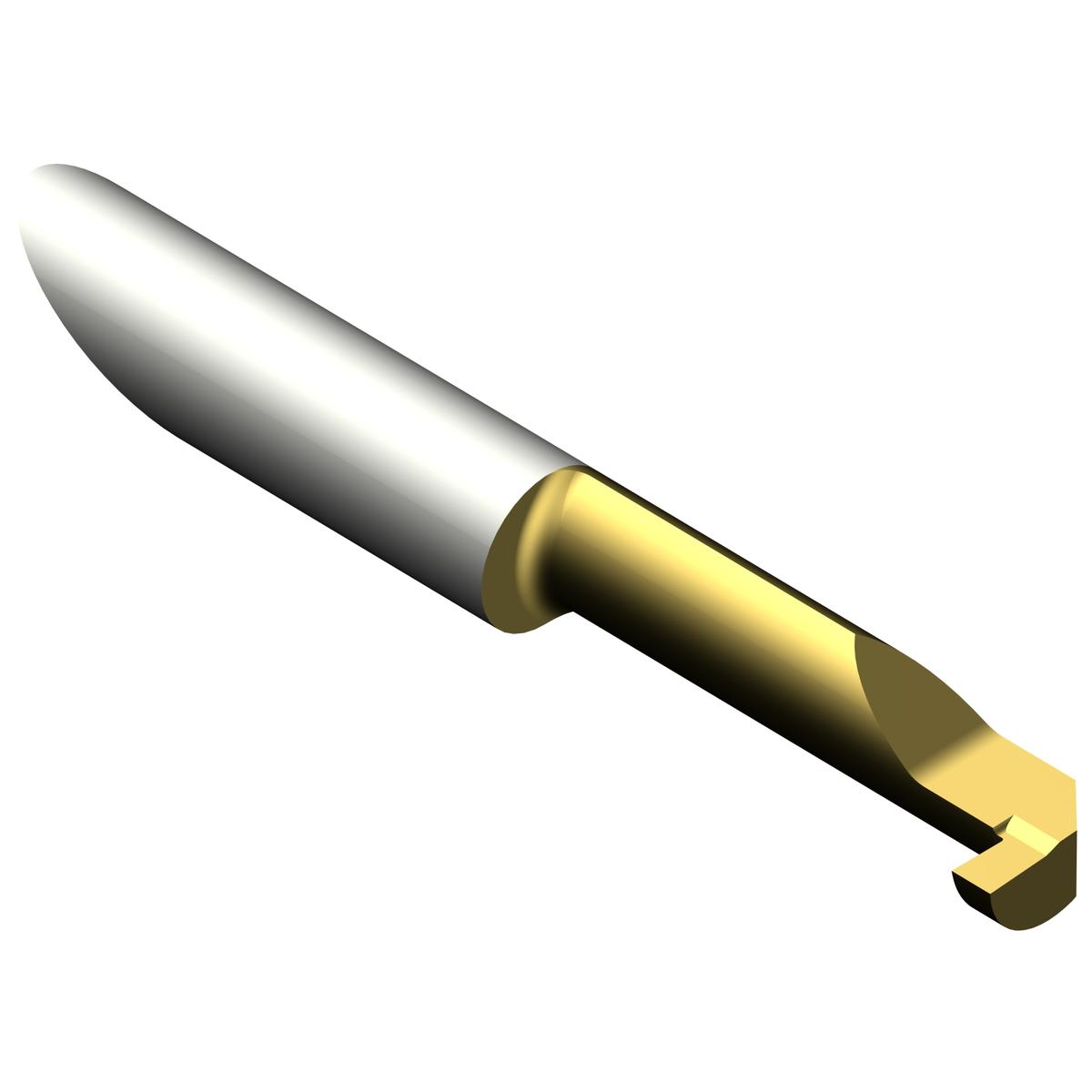

| Short Description | CoroTurn® XS solid carbide tool for grooving |
| Series | CoroTurn XS |
| Unit Of Measure | Metric |
| Direction Of Hand | Left |
| Min. Bore Diameter (Decimal) | 0.28 |
| Min. Bore Diameter (Metric) | 7.2 |
| Connection Diameter (Decimal) | 0.28 |
| Connection Diameter (Metric) | 7 |
| Usable Length (Decimal) | 0.98 |
| Usable Length (Metric) | 25 |
| Cutting Width | 2 mm |
| Cutting Width (Decimal) | 0.08 |
| ANSI Code | CXS-07G200-7225L 1025 |
| Body Width (Decimal) | 0.17 |
| Body Width (Metric) | 4.25 |
| Overall Width (Decimal) | 0.14 |
| Overall Width (Metric) | 3.45 |
| Coating Process Type | PVD |
| Grade | 1025 |
| ISO Material Classification Level All | PMKNS |
| Chamfer Width Left Hand (Decimal) | 0.002 |
| Chamfer Width Left Hand (Metric) | 0.04 |
| Chamfer Width Right Hand (Decimal) | 0.002 |
| Chamfer Width Right Hand (Metric) | 0.04 |
| Cutting Width Upper Tolerance (Decimal) | 0.001969 |
| Cutting Width Upper Tolerance (Metric) | 0.05 |
| Country of Origin | United Kingdom |
| Base Item Number | 1055 |
| Cutting Width (Inch) | 0.08 |
| Max. Cutting Depth (Decimal) | 0.1 |
| Max. Cutting Depth (Metric) | 2.5 |
| Max. Overhang (Decimal) | 1.1 |
| Max. Overhang (Metric) | 28 |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 0.053 LB |
