Sandvik Coromant
5726429

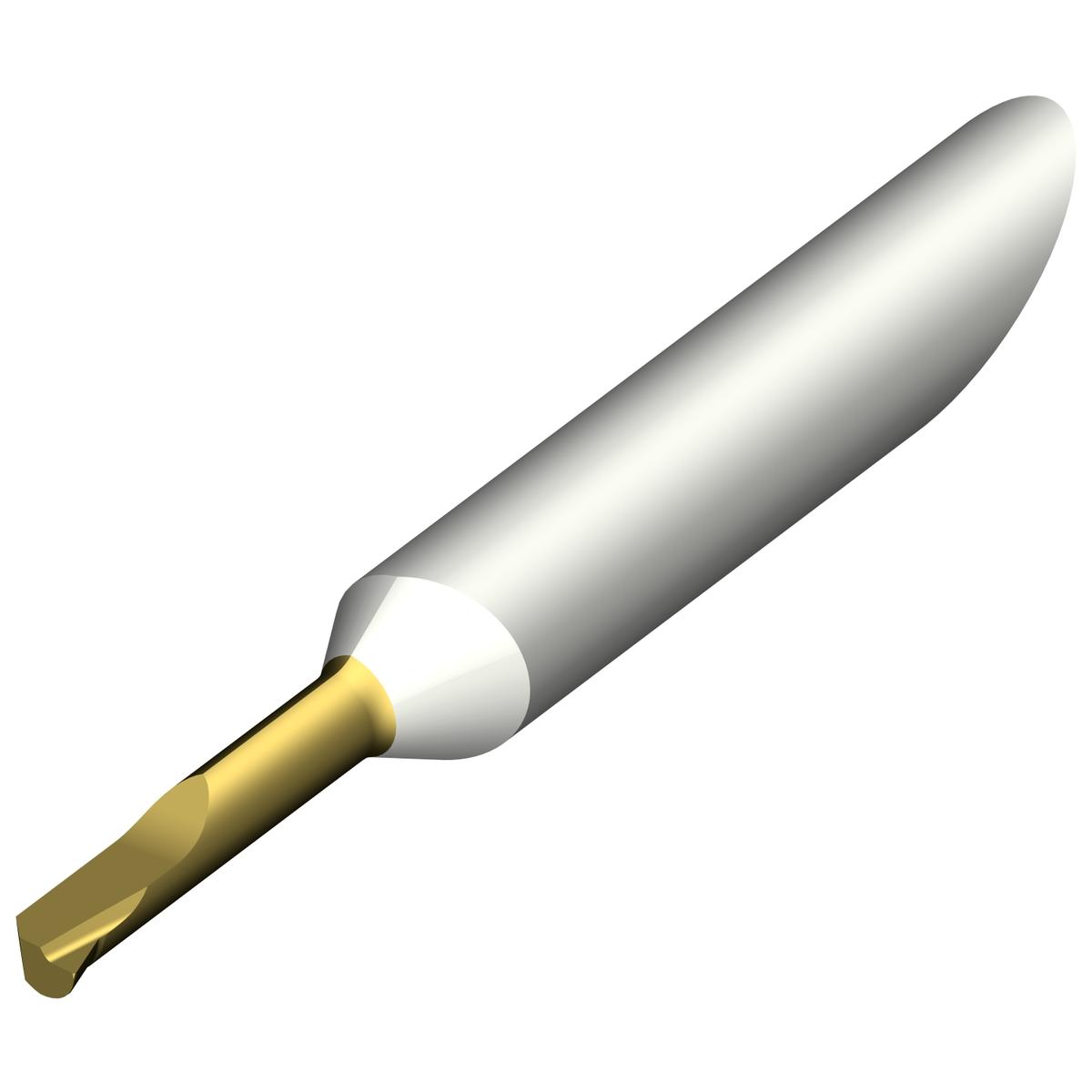

Sandvik Coromant 5726429
Specifications
| Overall Length (Metric) | 26.25 |
|---|---|
| Series | CoroTurn XS |
| Tool Lead Angle | -8 degrees |
| Overall Length (Inch) | 1.03 |
| Short Description | CoroTurn® XS solid carbide tool for turning |
| Direction Of Hand | Right |
| Unit Of Measure | Metric |
| Material | Carbide |
| Connection Diameter (Decimal) | 0.16 |
| Connection Diameter (Metric) | 4 |
| Min. Bore Diameter (Decimal) | 0.09 |
| Min. Bore Diameter (Metric) | 2.2 |
| Usable Length (Metric) | 9 |
| Usable Length (Decimal) | 0.35 |
| ANSI Code | CXS-04T098-05-2209R 1025 |
| Coolant Through | No |
| Overall Width (Decimal) | 0.04 |
| Overall Width (Metric) | 0.95 |
| Body Width (Decimal) | 0.06 |
| Body Width (Metric) | 1.55 |
| Tool Cutting Edge Angle | 98 degrees |
| Coolant Entry Style Code | 0: Without Coolant |
| Coolant Exit Style Code | 0: No Coolant Exit |
| Country of Origin | United Kingdom |
| Corner Radius | 0.05 mm |
| Corner Radius (Decimal) | 0.002 |
| Body Material | Carbide |
| Coating Process Type | PVD |
| Grade | 1025 |
| ISO Material Classification Level All | PMKNS |
| Base Item Number | 1055 |
| Coating/Finish | TiAlN+TiN |
| Max. Depth Of Cut (Decimal) | 0.01 |
| Max. Depth Of Cut (Metric) | 0.2 |
| Max. Overhang (Decimal) | 0.47 |
| Max. Overhang (Metric) | 12 |
| Maximum Depth Of Cut (Inch) | 0.01 |
| Maximum Depth Of Cut (Metric) | 0.2 |
| Maximum Ramping Angle | 17 degrees |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 0.004 LB |
| Height Packed Product Metric | 18 mm |
| Height Packed Product Imperial | 0.709 inch |
| ISO Code (packed) | CXS-04T098-05-2209R1025 |
| Insert Size | 04 |
| Length Packed Product Metric | 18 mm |
| Life Cycle State | 20 |
| ISO Code (unpacked) | CXS-04T098-05-2209R 1025 |
| Length Packed Product Imperial | 0.709 inch |
| Substrate Type | Carbide |
