Sandvik Coromant
5726481

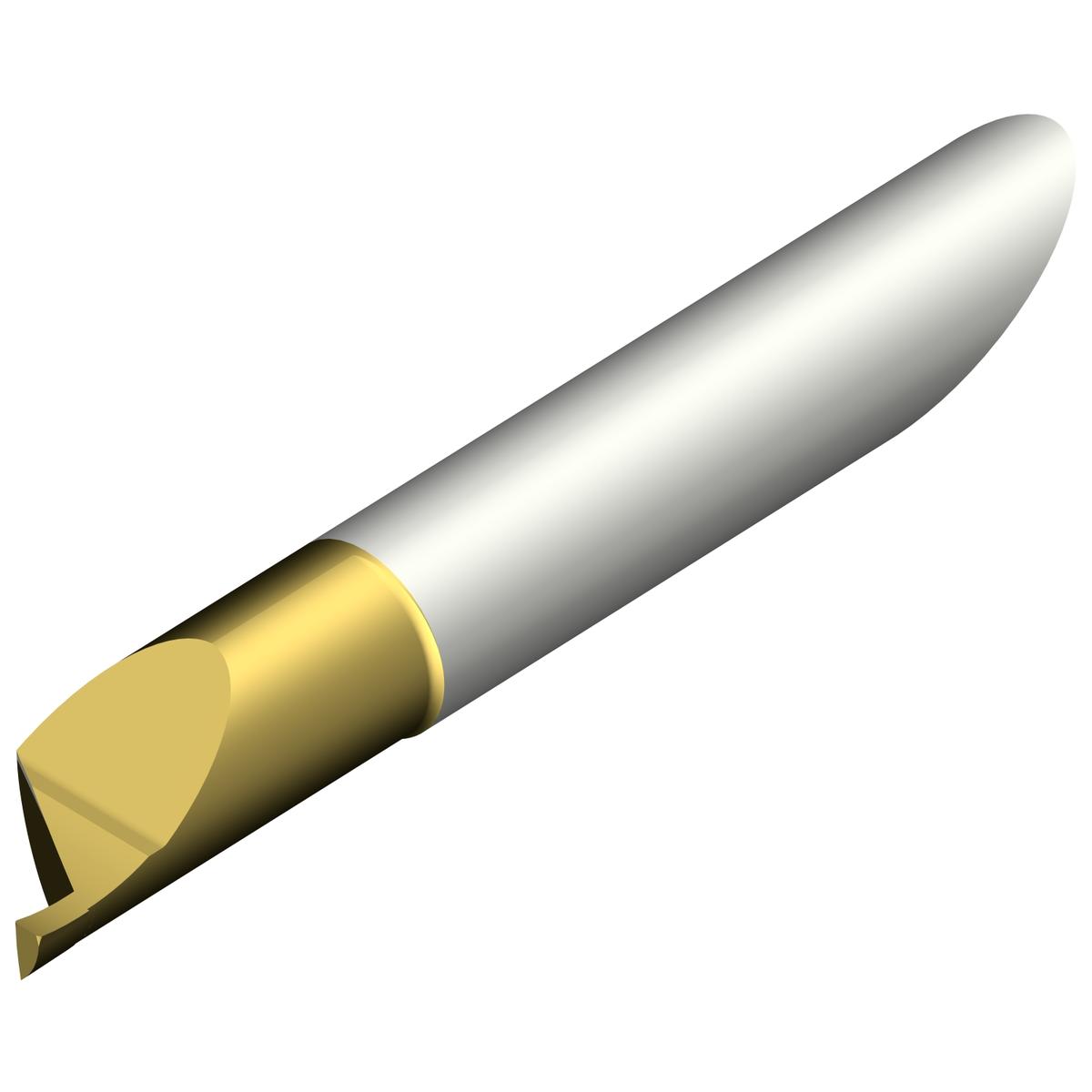

Sandvik Coromant 5726481
Specifications
| Coating/Finish | TiAlN+TiN |
|---|---|
| Overall Length (Metric) | 37.3 |
| Coolant Fed | No |
| Material | Carbide |
| Overall Length (Inch) | 1.47 |
| Short Description | CoroTurn® XS solid carbide tool for face grooving |
| Series | CoroTurn XS |
| Unit Of Measure | Metric |
| Direction Of Hand | Right |
| Connection Diameter (Decimal) | 0.24 |
| Connection Diameter (Metric) | 6 |
| Cutting Width | 1 mm |
| Cutting Width (Decimal) | 0.04 |
| ANSI Code | CXS-06F100-6215AR 1025 |
| Overall Width (Decimal) | 0.12 |
| Overall Width (Metric) | 2.95 |
| Coating Process Type | PVD |
| Grade | 1025 |
| Corner Radius Left (Decimal) | 0.01 |
| Corner Radius Left (Metric) | 0.15 |
| Corner Radius Right (Decimal) | 0.01 |
| Corner Radius Right (Metric) | 0.15 |
| ISO Material Classification Level All | PMKNS |
| Cutting Width Upper Tolerance (Decimal) | 0.001969 |
| Cutting Width Upper Tolerance (Metric) | 0.05 |
| Corner Radius Lower Tolerance (Decimal) | -0.000787 |
| Corner Radius Lower Tolerance (Metric) | -0.02 |
| Corner Radius Upper Tolerance (Decimal) | 0.000787 |
| Corner Radius Upper Tolerance (Metric) | 0.02 |
| Application | Turning, Parting/Grooving, Light |
| Country of Origin | United Kingdom |
| Base Item Number | 1055 |
| Cutting Width (Inch) | 0.04 |
| Max. Cutting Depth (Decimal) | 0.08 |
| Max. Cutting Depth (Metric) | 2 |
| Max. Overhang (Decimal) | 0.71 |
| Max. Overhang (Metric) | 18 |
| Min. Axial Groove Inside Diameter (Decimal) | 0.17 |
| Min. Axial Groove Inside Diameter (Metric) | 4.2 |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 0.037 LB |
