Sandvik Coromant
5727062
Sandvik Coromant 5727062
Specifications
| Center to Cutting Edge (Inch) | 0.87 |
|---|---|
| Material | Steel |
| Coolant Fed | Yes |
| Size | C3 |
| Series | T-Max |
| Center to Cutting Edge (Metric) | 22 |

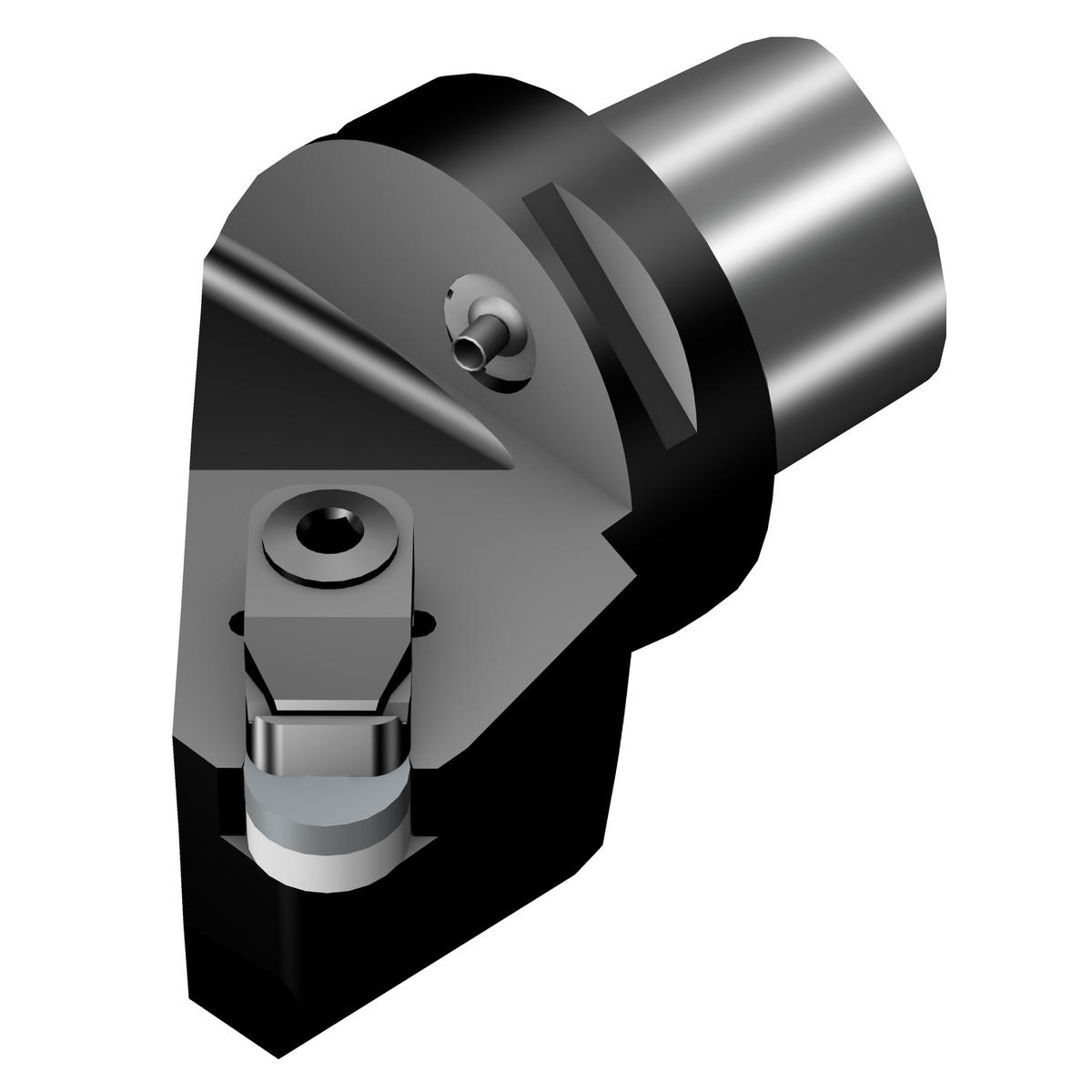

| Short Description | T-Max® cutting unit for turning |
| Direction Of Hand | Left |
| Unit Of Measure | Metric |
| Center to Cutting Edge | 22 mm |
| Insert Style | RNGN 090300 |
| ANSI Code | C3-CRSNL-22040-09ID |
| Connection Diameter (Decimal) | 1.26 |
| Connection Diameter (Metric) | 32 |
| Clamping Type Code | Clamp |
| Coolant Pressure | 580.151 lbf/in2 |
| Torque | 7.5 Nm |
| Machine Side Body Angle | 0 degrees |
| Workpiece Side Body Angle | 0 degrees |
| Inclination Angle | -6 degrees |
| Orthogonal Rake Angle | -6 degrees |
| Coolant Entry Style Code | 3: Axial Concentric and Radial Entry |
| Coolant Exit Style Code | 6: Decentral Exit With Nozzles, Adjustable |
| Country of Origin | Sweden |
| Base Item Number | 1026 |
| Max. Hole Depth | 40 mm |
| Max. Hole Depth (Decimal) | 1.58 |
| Max. Hole Depth (Metric) | 40 |
| Max. Overhang (Decimal) | 1.58 |
| Max. Overhang (Metric) | 40 |
| Maximum Ramping Angle | 7 degrees |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 0.573 LB |
