Sandvik Coromant
5727285
Sandvik Coromant 5727285
Specifications
| Center to Cutting Edge (Inch) | 1.06 |
|---|---|
| Material | Steel |
| Coolant Fed | Yes |
| Bore Diameter (Inch) | 4.33 |
| Size | C4 |
| Series | T-Max |
| Bore Diameter (Metric) | 110 |
| Center to Cutting Edge (Metric) | 27 |

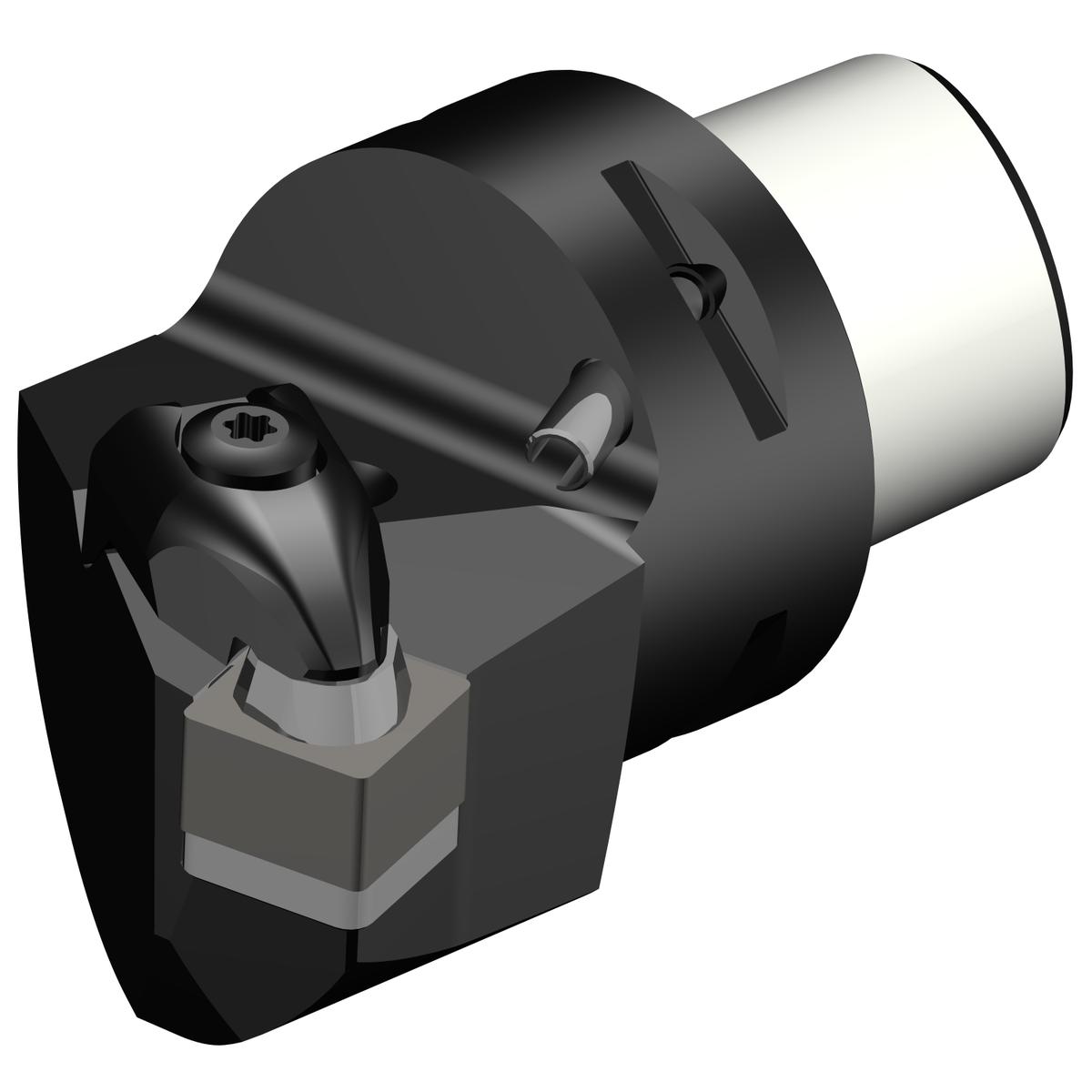

| Short Description | T-Max® cutting unit for turning |
| Direction Of Hand | Right |
| Unit Of Measure | Metric |
| Center to Cutting Edge | 27 mm |
| Insert Style | SNGN 120708 |
| ANSI Code | C4-CSKNR-27050-12-4 |
| Connection Diameter (Decimal) | 1.58 |
| Connection Diameter (Metric) | 40 |
| Clamping Type Code | Clamp |
| Coolant Pressure | 580.151 lbf/in2 |
| Torque | 3.9 Nm |
| Machine Side Body Angle | 0 degrees |
| Workpiece Side Body Angle | 0 degrees |
| Inclination Angle | -6 degrees |
| Orthogonal Rake Angle | -6 degrees |
| Tool Cutting Edge Angle | 75 degrees |
| Tool Lead Angle | 15 degrees |
| Protruding Length (Decimal) | 2.09 |
| Protruding Length (Metric) | 53.05 |
| Coolant Entry Style Code | 2: Radial Entry |
| Coolant Exit Style Code | 3: Axial Inclined Exit |
| Country of Origin | Sweden |
| Base Item Number | 1026 |
| Max. Hole Depth | 50 mm |
| Max. Hole Depth (Decimal) | 1.97 |
| Max. Hole Depth (Metric) | 50 |
| Max. Overhang (Decimal) | 1.97 |
| Max. Overhang (Metric) | 50 |
| Maximum Ramping Angle | 10 degrees |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 0.882 LB |
