Sandvik Coromant
5727607
Sandvik Coromant 5727607
Specifications
| Minimum Bore Diameter (Metric) | 32.51 |
|---|---|
| Minimum Bore Diameter (Inch) | 1.28 |
| Shank Diameter (Metric) | 25.4 |
| Direction Of Hand | Right |
| Overall Length (Metric) | 304.8 |
| Shank Diameter (Inch) | 1 |
| Overall Length (Inch) | 12 |

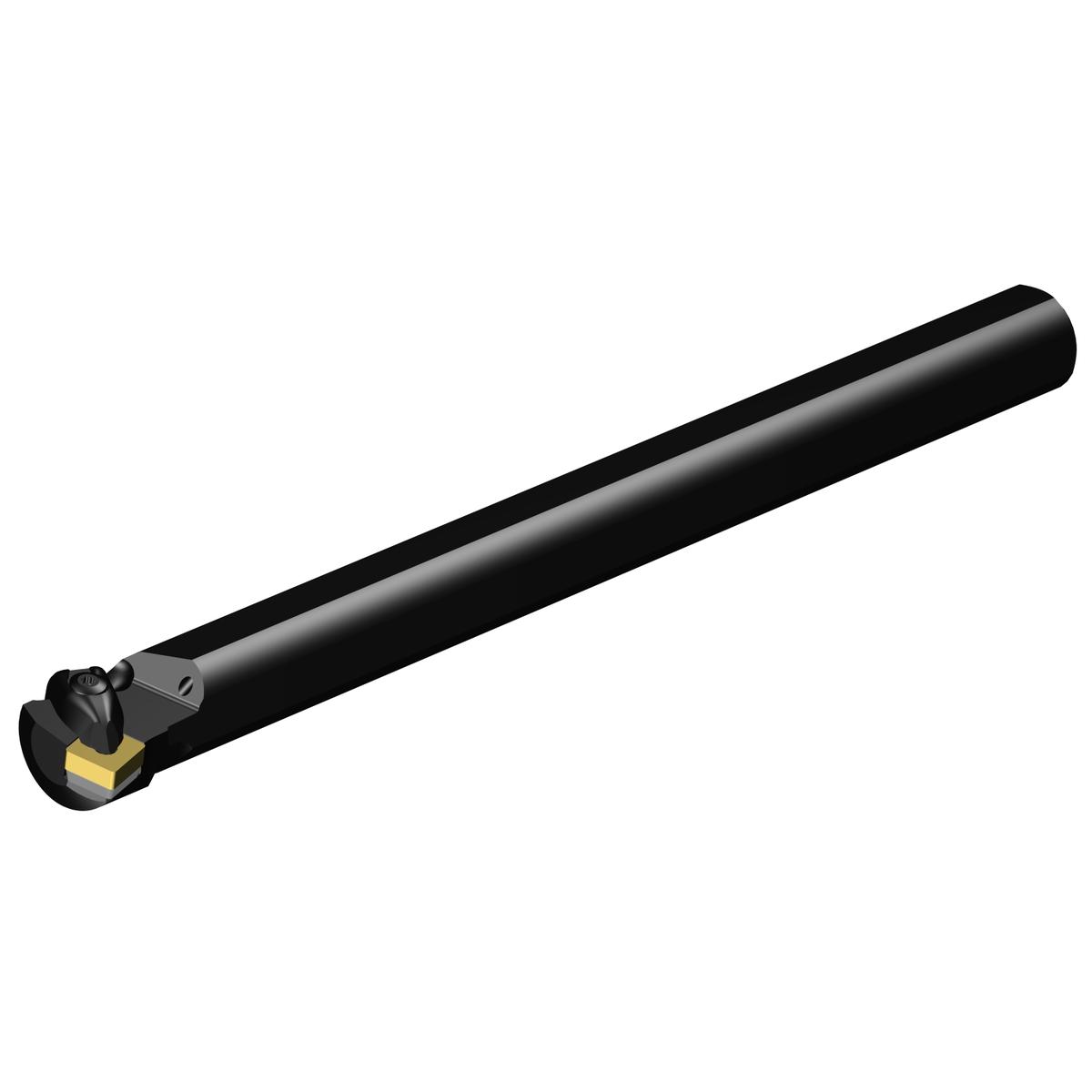

| Short Description | T-Max® P boring bar for turning |
| Unit Of Measure | Imperial |
| Series | T-Max P |
| Shank Height (Metric) | 23 |
| Shank Height (Decimal) | 0.91 |
| Orthogonal Rake Angle | -6 degrees |
| Overall Length | 12 Inch |
| Shank Diameter | 1 Inch |
| Coolant Through | Yes |
| Tool Lead Angle | 15 degrees |
| ANSI Code | A16T-DSKNR 4 |
| Body Material | Steel |
| Machine Side Body Angle | 0 degrees |
| Workpiece Side Body Angle | 0 degrees |
| Tool Cutting Edge Angle | 75 degrees |
| Body Diameter (Decimal) | 1 |
| Body Diameter (Metric) | 25.4 |
| Coolant Pressure | 580.151 lbf/in2 |
| Overall Width (Decimal) | 0.64 |
| Overall Width (Metric) | 16.26 |
| Inclination Angle | -11 degrees |
| Protruding Length (Decimal) | 12.12 |
| Protruding Length (Metric) | 307.85 |
| Clamping Type Code | Clamp |
| Torque | 3.9 Nm |
| Coolant Entry Style Code | 1: Axial Concentric Entry |
| Coolant Exit Style Code | 3: Axial Inclined Exit |
| Country of Origin | Sweden |
| Base Item Number | 1049 |
| Max. Overhang (Decimal) | 4 |
| Max. Overhang (Metric) | 101.6 |
| Maximum Ramping Angle | 0 degrees |
| Min Bore Diameter | 1.28 Inch |
| Min. Overhang (Decimal) | 1.5 |
| Min. Overhang (Metric) | 38.1 |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Weight | 2.196 LB |
| Height Packed Product Metric | 35 mm |
| Height Packed Product Imperial | 1.378 inch |
| ISO Code (packed) | A16T-DSKNR4 |
| Length Packed Product Metric | 310 mm |
| Life Cycle State | 20 |
| ISO Code (unpacked) | A16T-DSKNR 4 |
| Length Packed Product Imperial | 12.205 inch |
