Sandvik Coromant
5727743

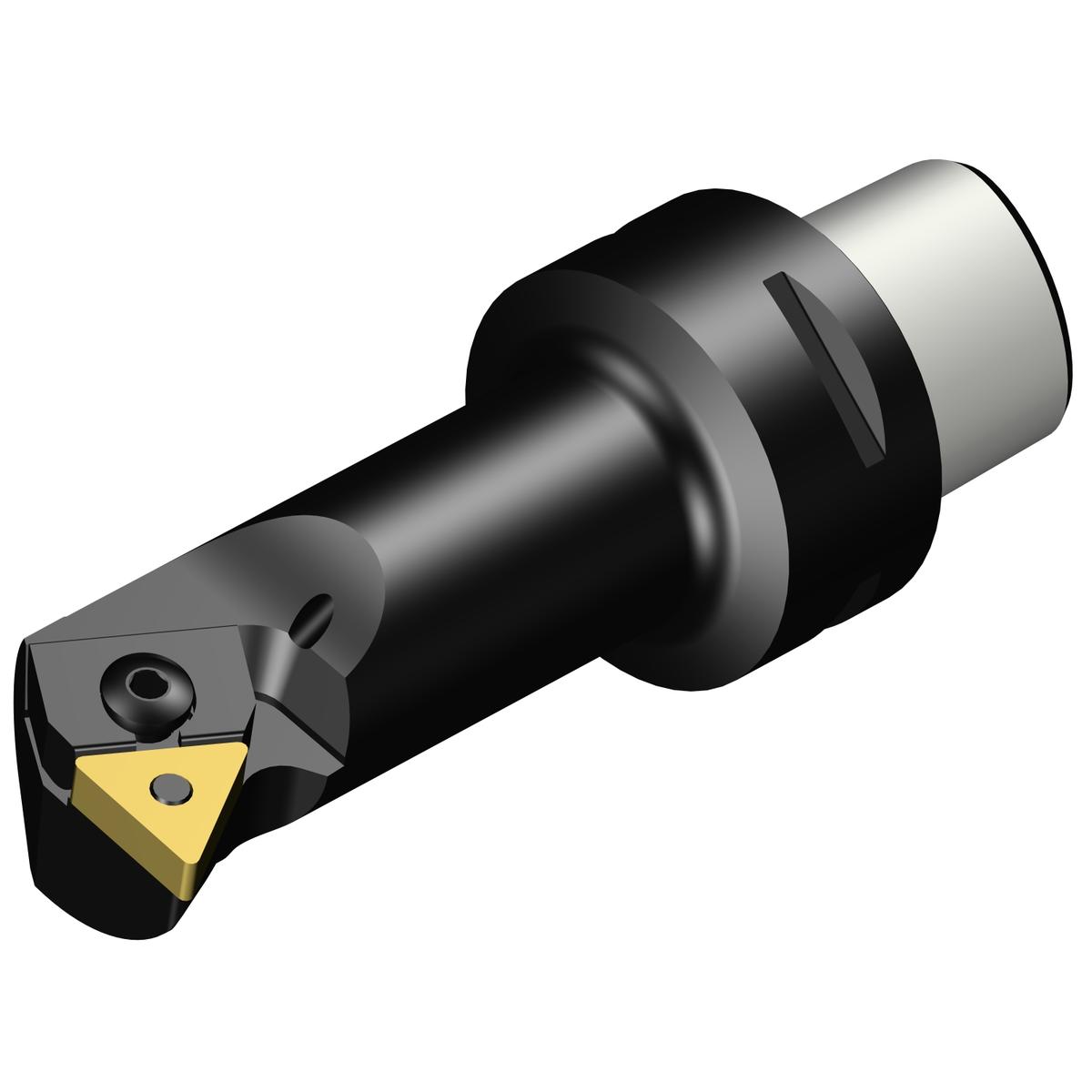

Sandvik Coromant 5727743
Specifications
| Center to Cutting Edge (Inch) | 0.67 |
|---|---|
| Material | Steel |
| Coolant Fed | Yes |
| Bore Diameter (Inch) | 1.26 |
| Size | C4 |
| Series | T-Max P |
| Bore Diameter (Metric) | 32 |
| Center to Cutting Edge (Metric) | 17 |
| Short Description | T-Max® P cutting unit for turning |
| Direction Of Hand | Right |
| Unit Of Measure | Metric |
| Center to Cutting Edge | 17 mm |
| Insert Style | TNMG 160408 |
| ANSI Code | C4-PTFNR-17090-16W |
| Connection Diameter (Decimal) | 1.58 |
| Connection Diameter (Metric) | 40 |
| Clamping Type Code | Wedge Clamp |
| Coolant Pressure | 145.038 lbf/in2 |
| Torque | 2 Nm |
| Machine Side Body Angle | 0 degrees |
| Workpiece Side Body Angle | 0 degrees |
| Inclination Angle | -13 degrees |
| Orthogonal Rake Angle | -6 degrees |
| Tool Cutting Edge Angle | 91 degrees |
| Tool Lead Angle | -1 degrees |
| Usable Length (Decimal) | 2.72 |
| Usable Length (Metric) | 69 |
| Body Diameter (Decimal) | 0.98 |
| Body Diameter (Metric) | 25 |
| Coolant Entry Style Code | 3: Axial Concentric and Radial Entry |
| Coolant Exit Style Code | 3: Axial Inclined Exit |
| Country of Origin | Sweden |
| Base Item Number | 1049 |
| Max. Hole Depth | 90 mm |
| Max. Hole Depth (Decimal) | 3.54 |
| Max. Hole Depth (Metric) | 90 |
| Max. Overhang (Decimal) | 3.54 |
| Max. Overhang (Metric) | 90 |
| Maximum Ramping Angle | 0 degrees |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 1.146 LB |
