Sandvik Coromant
5727801

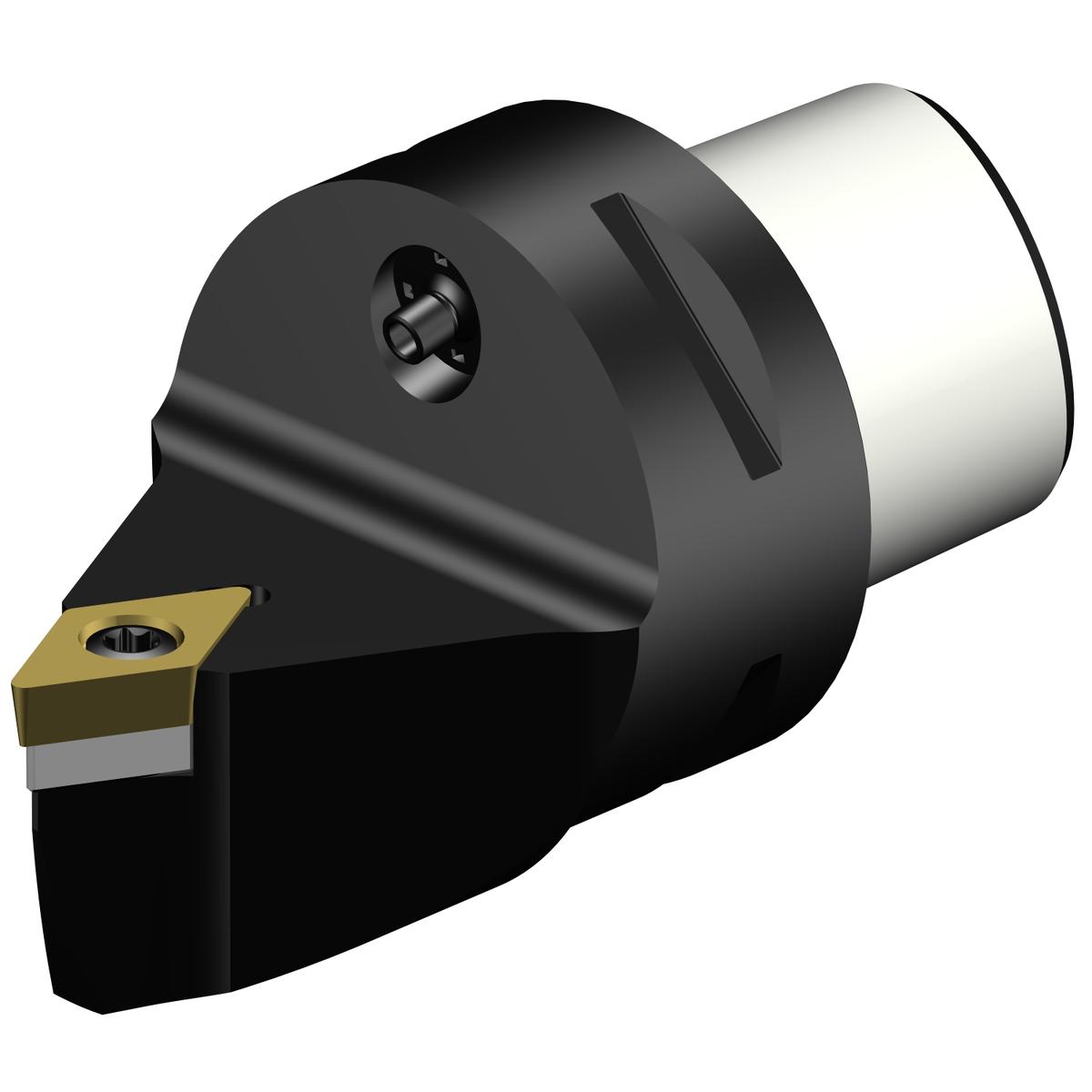

Sandvik Coromant 5727801
Specifications
| Center to Cutting Edge (Inch) | 0.02 |
|---|---|
| Material | Steel |
| Coolant Fed | Yes |
| Bore Diameter (Inch) | 5.51 |
| Size | C4 |
| Series | CoroTurn 107 |
| Bore Diameter (Metric) | 140 |
| Center to Cutting Edge (Metric) | 0.5 |
| Short Description | CoroTurn® 107 cutting unit for turning |
| Direction Of Hand | Neutral |
| Unit Of Measure | Metric |
| Center to Cutting Edge | 0.5 mm |
| Insert Style | DCMT 11T308 |
| ANSI Code | C4-SDNCN-00050-11 |
| Connection Diameter (Decimal) | 1.58 |
| Connection Diameter (Metric) | 40 |
| Clamping Type Code | Screw/Clamp |
| Coolant Pressure | 580.151 lbf/in2 |
| Torque | 3 Nm |
| Machine Side Body Angle | 0 degrees |
| Workpiece Side Body Angle | 0 degrees |
| Inclination Angle | 0 degrees |
| Orthogonal Rake Angle | 0 degrees |
| Tool Cutting Edge Angle | 62.5 degrees |
| Tool Lead Angle | 27.5 degrees |
| Coolant Entry Style Code | 2: Radial Entry |
| Coolant Exit Style Code | 6: Decentral Exit With Nozzles, Adjustable |
| Country of Origin | Sweden |
| Base Item Number | 1053 |
| Max. Hole Depth | 50 mm |
| Max. Hole Depth (Decimal) | 1.97 |
| Max. Hole Depth (Metric) | 50 |
| Max. Overhang (Decimal) | 1.97 |
| Max. Overhang (Metric) | 50 |
| Maximum Ramping Angle | 57 degrees |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 0.675 LB |
