Sandvik Coromant
5728203
Sandvik Coromant 5728203
Specifications
| Shank Diameter (Metric) | 50 |
|---|---|
| Material | Steel |
| Shank Diameter (Inch) | 1.97 |

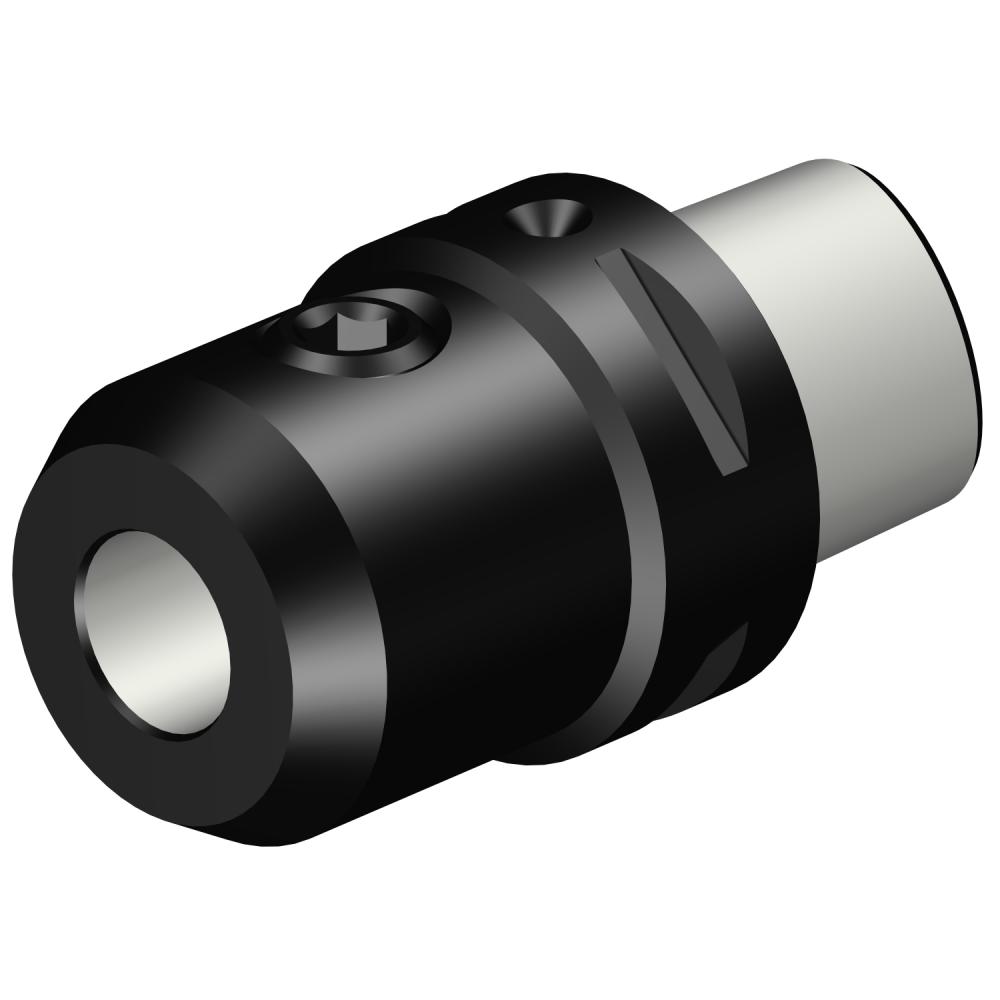

| Short Description | Coromant Capto® to Weldon adaptor |
| Unit Of Measure | Imperial |
| Shank Diameter | 1.97 Inch |
| Overall Length | 2.36 Inch |
| Overall Length (Decimal) | 2.36 |
| Overall Length (Metric) | 60 |
| ANSI Code | C5-A391.20-19 060 |
| Coolant Through | Yes |
| Connection Size | C5 |
| Body Diameter (Decimal) | 1.75 |
| Body Diameter (Metric) | 44.5 |
| Body Length (Decimal) | 0.30 |
| Body Length (Metric) | 7.5 |
| Functional Diameter (Decimal) | 1.38 |
| Functional Diameter (Metric) | 35 |
| Clamping Length (Decimal) | 2.13 |
| Clamping Length (Metric) | 54 |
| Body Half Taper Angle | 30 degrees |
| Torque (ft lbf) | 14.751 |
| Torque (NM) | 20 |
| Coolant Pressure (Bar) | 20 |
| Coolant Entry Style Code | 3: axial concentric and radial entry |
| Coolant Exit Style Code | 1: axial concentric exit |
| Standard | ISO26623-1 |
| Balanced by Design | Yes |
| Data Chip Provision | No |
| Damping Property | No |
| Country of Origin | Germany |
| Base Item Number | 2099 |
| Body Length (Inch) | 0.3 |
| Coolant Pressure (lbf/in2) | 290.075 |
| Kappa (Z-Axis Rot) | 0 degrees |
| Max. Rotational Speed | 28000 1/min |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Weight | 1.676 LB |
