Sandvik Coromant
5728390
Sandvik Coromant 5728390
Specifications
| Center to Cutting Edge (Inch) | 1.06 |
|---|---|
| Coolant Fed | Yes |
| Size | C4 |
| Series | T-Max Q-Cut |
| Center to Cutting Edge (Metric) | 27 |

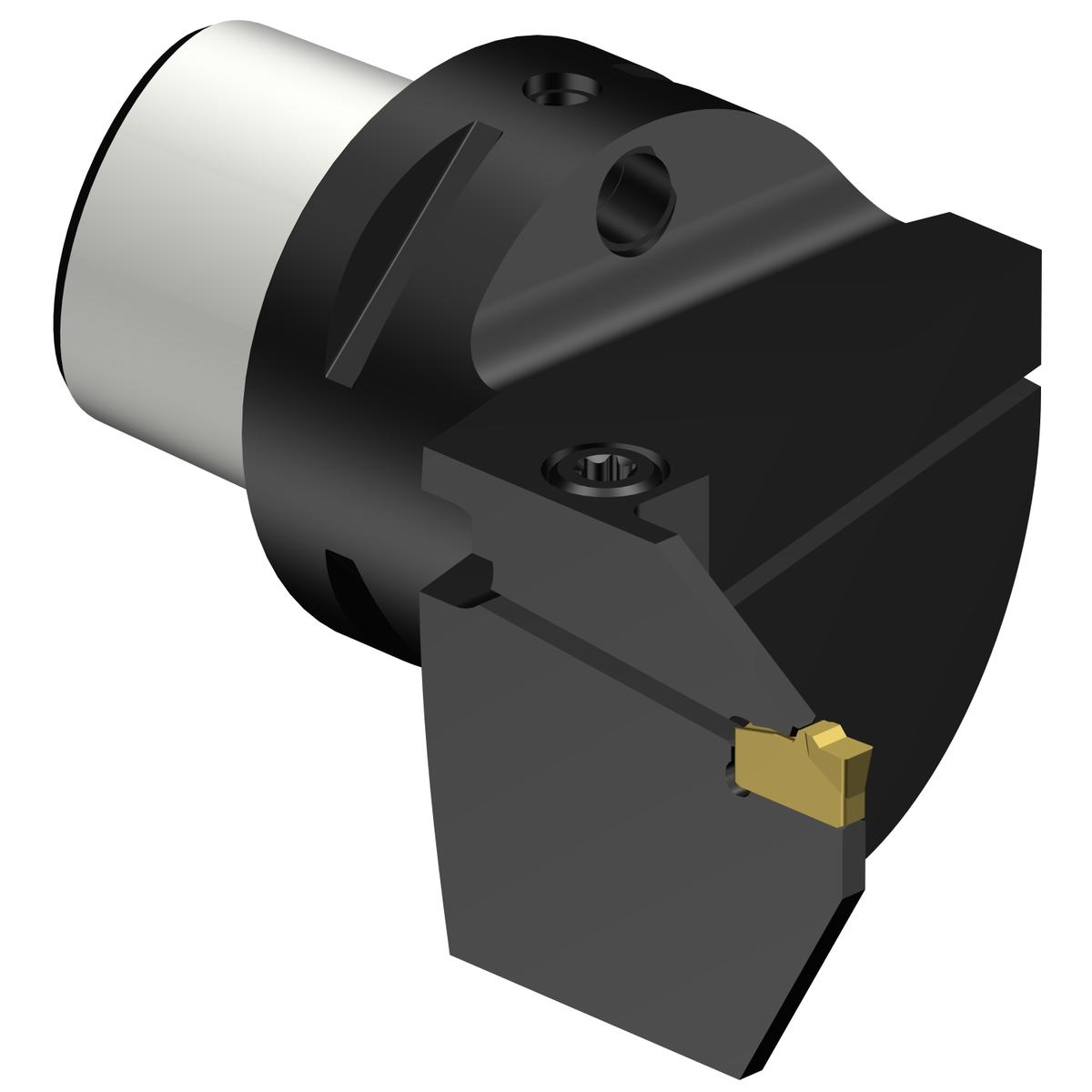

| Short Description | T-Max® Q-Cut cutting unit for parting and grooving |
| Direction Of Hand | Left |
| Unit Of Measure | Metric |
| Center to Cutting Edge | 27 mm |
| Insert Style | N151.2-250-5E |
| ANSI Code | C4-LF151.23-27060-25 |
| Connection Diameter (Decimal) | 1.58 |
| Connection Diameter (Metric) | 40 |
| Clamping Type Code | Clamp |
| Coolant Pressure | 145.038 lbf/in2 |
| Torque | 3 Nm |
| Workpiece Side Body Angle | 0 degrees |
| Coolant Entry Style Code | 3: Axial Concentric and Radial Entry |
| Coolant Exit Style Code | 5: Axial Inclined Exit With Nozzle, Adjustable |
| Insert Seat Size Code | 25 |
| Country of Origin | Sweden |
| Base Item Number | 1060 |
| Max. Cutting Depth (Decimal) | 0.79 |
| Max. Cutting Depth (Metric) | 20 |
| Max. Hole Depth | 60 mm |
| Max. Hole Depth (Decimal) | 2.36 |
| Max. Hole Depth (Metric) | 60 |
| Max. Overhang (Decimal) | 2.36 |
| Max. Overhang (Metric) | 60 |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 0.919 LB |
| Height Packed Product Metric | 60 mm |
| Height Packed Product Imperial | 2.362 inch |
| ISO Code (packed) | C4-LF151.23-27060-25 |
| Length Packed Product Metric | 94 mm |
| Life Cycle State | 20 |
| ISO Code (unpacked) | C4-LF151.23-27060-25 |
| Length Packed Product Imperial | 3.701 inch |
