Sandvik Coromant
5728429

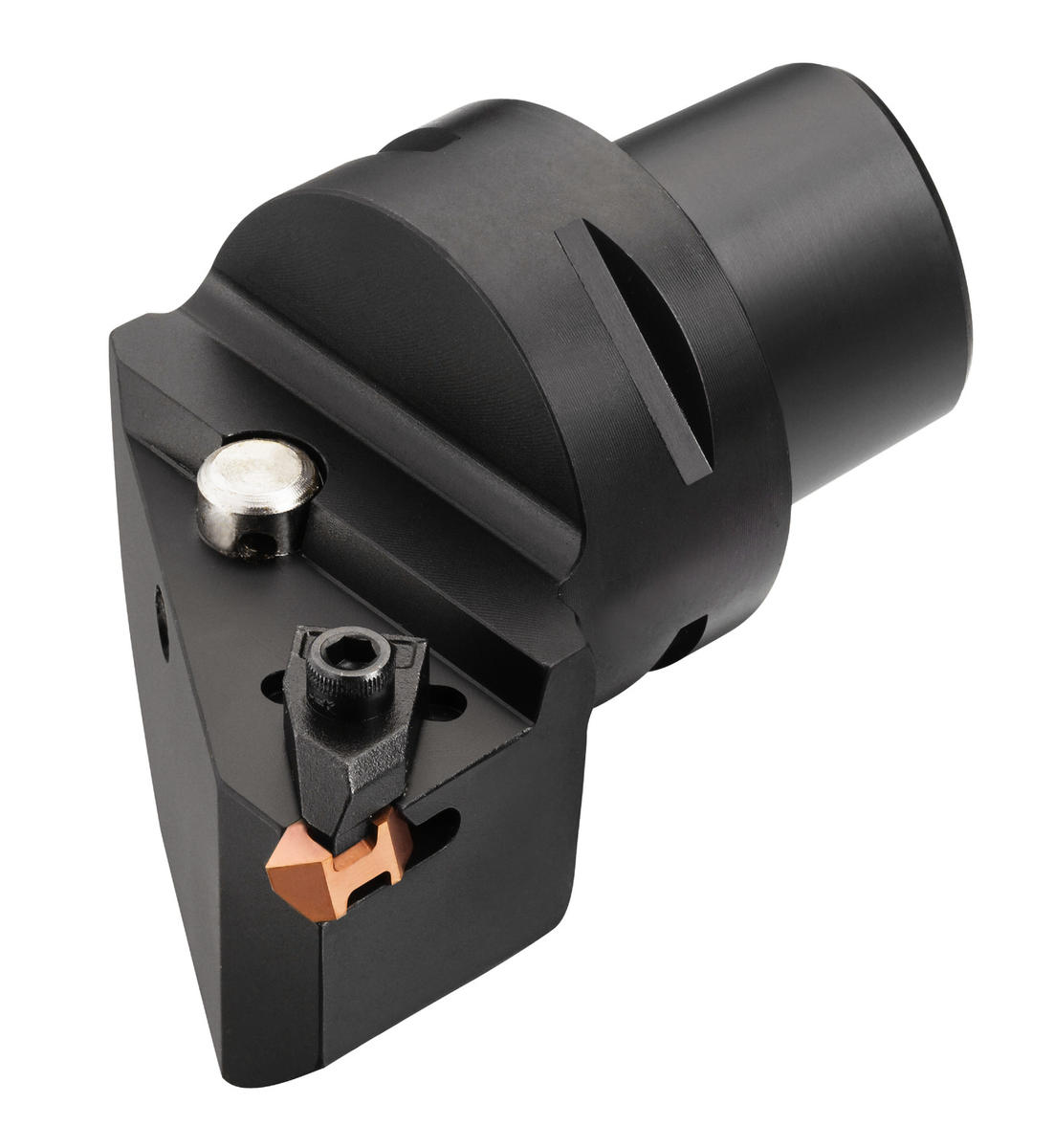

Sandvik Coromant 5728429
Specifications
| Center to Cutting Edge (Inch) | 1.06 |
|---|---|
| Coolant Fed | Yes |
| Size | C4 |
| Series | Top Lok |
| Center to Cutting Edge (Metric) | 27 |
| Short Description | Top Lok cutting unit for parting and grooving |
| Direction Of Hand | Right |
| Unit Of Measure | Imperial |
| Center to Cutting Edge | 1.06 Inch |
| Insert Style | TLG2R |
| ANSI Code | C4-TLSR-27050-2 |
| Connection Diameter (Decimal) | 1.58 |
| Connection Diameter (Metric) | 40 |
| Clamping Type Code | Clamp |
| Coolant Pressure | 145.038 lbf/in2 |
| Torque | 3 Nm |
| Workpiece Side Body Angle | 0 degrees |
| Coolant Entry Style Code | 3: Axial Concentric and Radial Entry |
| Coolant Exit Style Code | 5: Axial Inclined Exit With Nozzle, Adjustable |
| Insert Seat Size Code | 2 |
| Country of Origin | United States |
| Base Item Number | 2017 |
| Max. Cutting Depth (Decimal) | 0.11 |
| Max. Cutting Depth (Metric) | 2.8 |
| Max. Hole Depth | 1.97 Inch |
| Max. Hole Depth (Decimal) | 1.97 |
| Max. Hole Depth (Metric) | 50.04 |
| Max. Overhang (Decimal) | 1.97 |
| Max. Overhang (Metric) | 50.038 |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Weight | 0.93 LB |
| Height Packed Product Metric | 50 mm |
| Height Packed Product Imperial | 1.969 inch |
| ISO Code (packed) | C4-TLSR-27050-2 |
| Length Packed Product Metric | 50 mm |
| Life Cycle State | 20 |
| ISO Code (unpacked) | C4-TLSR-27050-2 |
| Length Packed Product Imperial | 1.969 inch |
