Sandvik Coromant
5728852
Sandvik Coromant 5728852
Specifications
| Center to Cutting Edge (Inch) | 1.77 |
|---|---|
| Material | Steel |
| Coolant Fed | Yes |
| Bore Diameter (Inch) | 4.92; 7.48 |
| Size | C6 |
| Series | T-Max P |
| Bore Diameter (Metric) | 125; 190 |
| Center to Cutting Edge (Metric) | 45 |

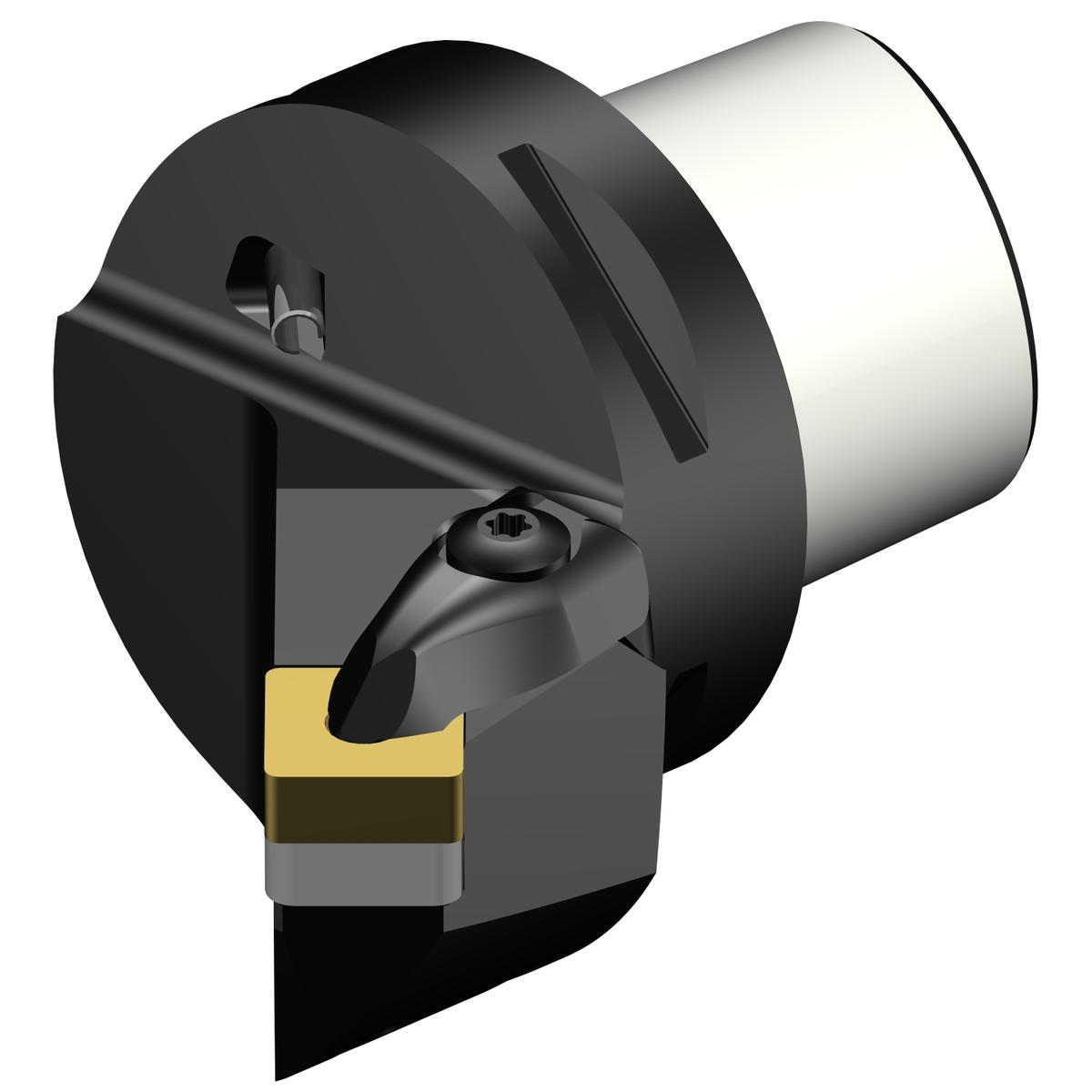

| Short Description | T-Max® P cutting unit for turning |
| Direction Of Hand | Right |
| Unit Of Measure | Metric |
| Center to Cutting Edge | 45 mm |
| Insert Style | SNMG 150612 |
| ANSI Code | C6-DSSNR-45054-15 |
| Connection Diameter (Decimal) | 2.48 |
| Connection Diameter (Metric) | 63 |
| Clamping Type Code | Clamp |
| Coolant Pressure | 580.151 lbf/in2 |
| Torque | 6.4 Nm |
| Machine Side Body Angle | 0 degrees |
| Workpiece Side Body Angle | 0 degrees |
| Inclination Angle | 0 degrees |
| Orthogonal Rake Angle | -8 degrees |
| Tool Cutting Edge Angle | 45 degrees |
| Tool Lead Angle | 45 degrees |
| Protruding Length (Decimal) | 2.53 |
| Protruding Length (Metric) | 64.24 |
| Coolant Entry Style Code | 3: Axial Concentric and Radial Entry |
| Coolant Exit Style Code | 3: Axial Inclined Exit |
| Country of Origin | Sweden |
| Base Item Number | 1049 |
| Max. Hole Depth | 54 mm |
| Max. Hole Depth (Decimal) | 2.13 |
| Max. Hole Depth (Metric) | 54 |
| Max. Overhang (Decimal) | 2.13 |
| Max. Overhang (Metric) | 54 |
| Maximum Ramping Angle | 0 degrees |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 2.187 LB |
