Sandvik Coromant
5728870
Sandvik Coromant 5728870
Specifications
| Material | Steel |
|---|---|
| Series | Coromant Capto |

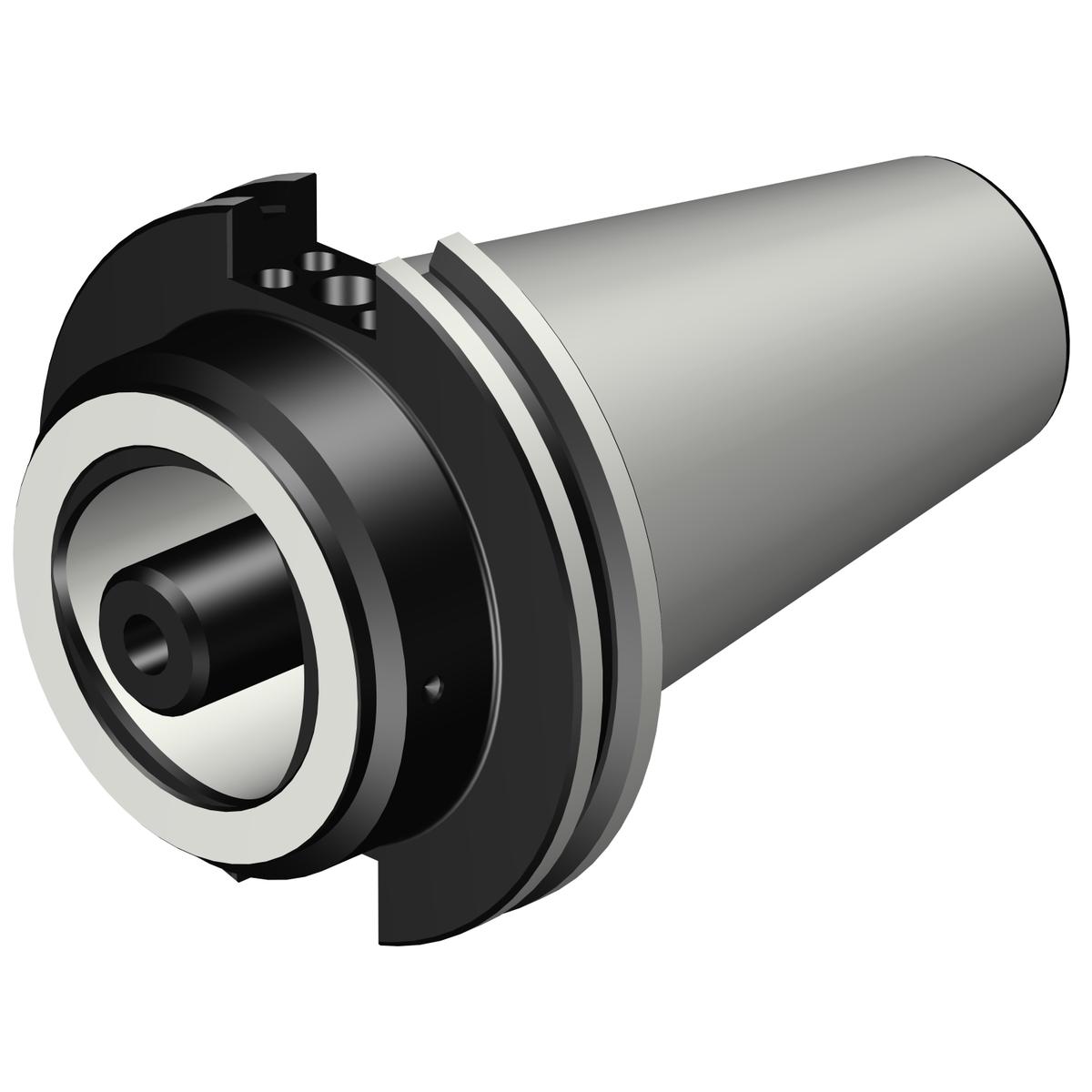

| Short Description | CAT-V to Coromant Capto® adaptor |
| Unit Of Measure | Imperial |
| Overall Length | 1.58 Inch |
| Overall Length (Decimal) | 1.58 |
| Overall Length (Metric) | 40.01 |
| ANSI Code | C6-A390.45-50 040 |
| Coolant Through | Yes |
| Body Diameter (Decimal) | 2.48 |
| Body Diameter (Metric) | 63 |
| Body Length (Decimal) | 0.12 |
| Body Length (Metric) | 3 |
| Functional Diameter (Decimal) | 2.75 |
| Functional Diameter (Metric) | 69.85 |
| Connection Retention Knob Thread Size | 1-8 |
| Body Half Taper Angle | 0 degrees |
| Torque (ft lbf) | 47.942 |
| Torque (NM) | 65 |
| Coolant Pressure (Bar) | 80 |
| Coolant Entry Style Code | 1: axial concentric entry |
| Coolant Exit Style Code | 1: axial concentric exit |
| Balanced by Design | No |
| Data Chip Provision | No |
| Damping Property | No |
| Country of Origin | Germany |
| Base Item Number | 1147 |
| Body Length (Inch) | 0.12 |
| Coolant Pressure (lbf/in2) | 1160.3 |
| Kappa (Z-Axis Rot) | 0 degrees |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Weight | 6.494 LB |
