Sandvik Coromant
5729007

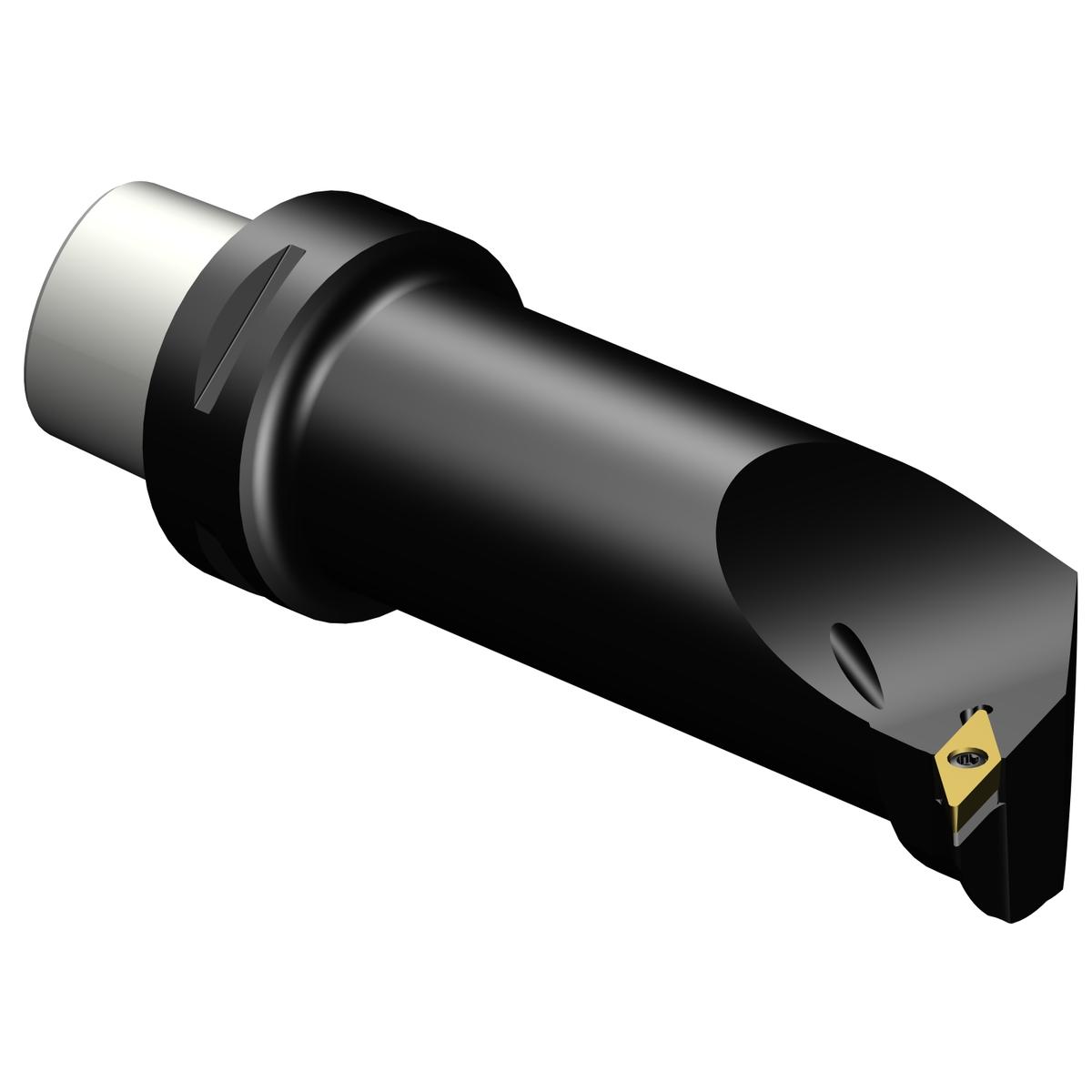

Sandvik Coromant 5729007
Specifications
| Center to Cutting Edge (Inch) | 1.38 |
|---|---|
| Material | Steel |
| Coolant Fed | Yes |
| Bore Diameter (Inch) | 2.48 |
| Size | C6 |
| Series | CoroTurn 107 |
| Bore Diameter (Metric) | 63 |
| Center to Cutting Edge (Metric) | 35 |
| Short Description | CoroTurn® 107 cutting unit for turning |
| Direction Of Hand | Left |
| Unit Of Measure | Metric |
| Center to Cutting Edge | 35 mm |
| Insert Style | VBMT 160408/VCMT 160408 |
| ANSI Code | C6-SVQBL-35175-16 |
| Connection Diameter (Decimal) | 2.48 |
| Connection Diameter (Metric) | 63 |
| Clamping Type Code | Screw/Clamp |
| Coolant Pressure | 580.151 lbf/in2 |
| Torque | 3 Nm |
| Machine Side Body Angle | 0 degrees |
| Workpiece Side Body Angle | 0 degrees |
| Inclination Angle | -5.382 degrees |
| Orthogonal Rake Angle | 0 degrees |
| Tool Cutting Edge Angle | 107.5 degrees |
| Tool Lead Angle | -17.5 degrees |
| Usable Length (Decimal) | 5.95 |
| Usable Length (Metric) | 151 |
| Body Diameter (Decimal) | 1.97 |
| Body Diameter (Metric) | 50 |
| Coolant Entry Style Code | 3: Axial Concentric and Radial Entry |
| Coolant Exit Style Code | 3: Axial Inclined Exit |
| Country of Origin | Sweden |
| Base Item Number | 1053 |
| Max. Hole Depth | 175 mm |
| Max. Hole Depth (Decimal) | 6.89 |
| Max. Hole Depth (Metric) | 175 |
| Max. Overhang (Decimal) | 6.89 |
| Max. Overhang (Metric) | 175 |
| Maximum Ramping Angle | 35 degrees |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 5.734 LB |
