Sandvik Coromant
5729092

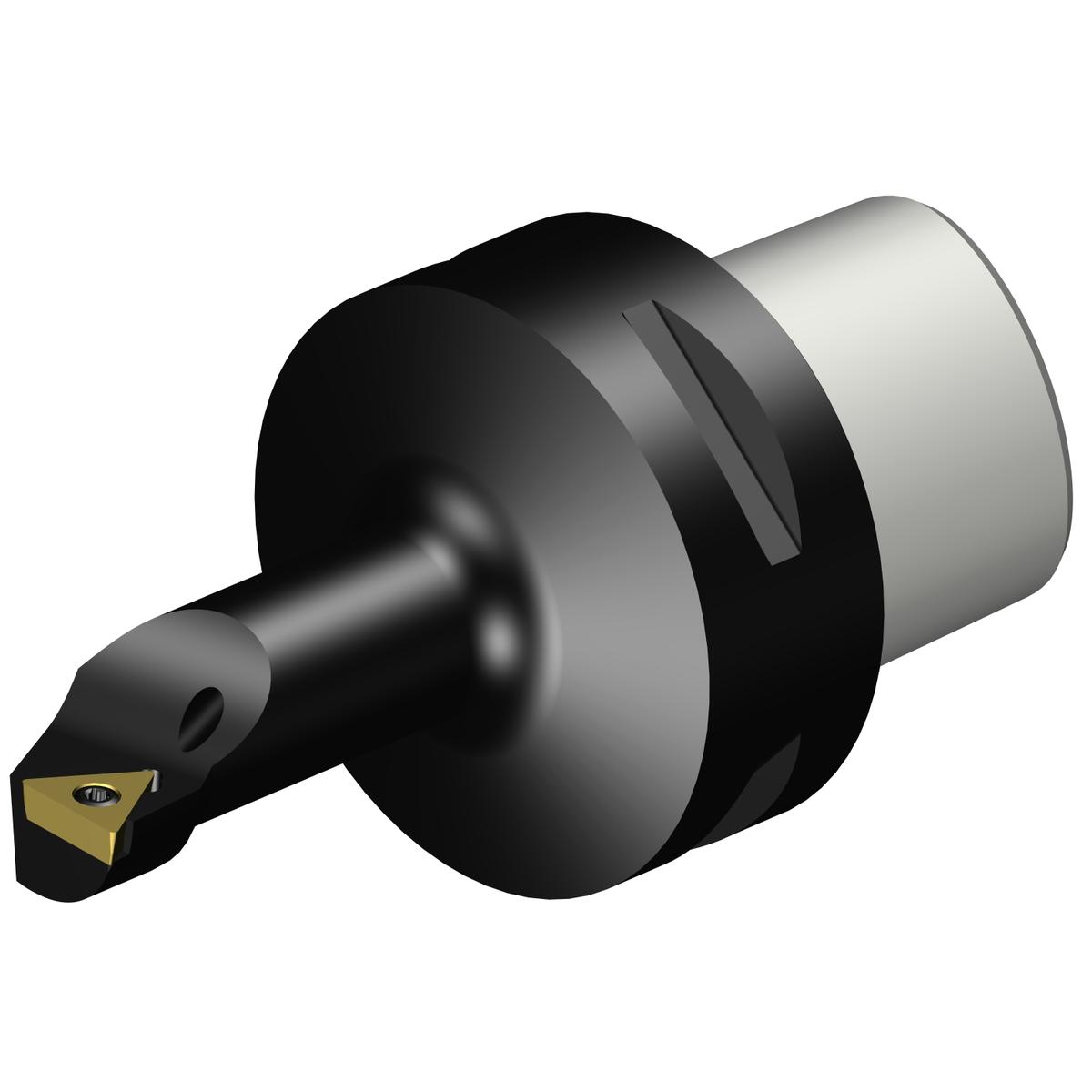

Sandvik Coromant 5729092
Specifications
| Center to Cutting Edge (Inch) | 0.43 |
|---|---|
| Material | Steel |
| Coolant Fed | Yes |
| Bore Diameter (Inch) | 0.79 |
| Size | C5 |
| Series | CoroTurn 107 |
| Bore Diameter (Metric) | 20 |
| Center to Cutting Edge (Metric) | 11 |
| Short Description | CoroTurn® 107 cutting unit for turning |
| Direction Of Hand | Right |
| Unit Of Measure | Metric |
| Center to Cutting Edge | 11 mm |
| Insert Style | TCMT 110304 |
| ANSI Code | C5-STFCR-11070-11-B1 |
| Connection Diameter (Decimal) | 1.97 |
| Connection Diameter (Metric) | 50 |
| Clamping Type Code | Screw/Clamp |
| Coolant Pressure | 580.151 lbf/in2 |
| Torque | 0.9 Nm |
| Machine Side Body Angle | 0 degrees |
| Workpiece Side Body Angle | 0 degrees |
| Inclination Angle | -4.871 degrees |
| Orthogonal Rake Angle | 0 degrees |
| Tool Cutting Edge Angle | 91 degrees |
| Tool Lead Angle | -1 degrees |
| Usable Length (Decimal) | 1.81 |
| Usable Length (Metric) | 46 |
| Body Diameter (Decimal) | 0.63 |
| Body Diameter (Metric) | 16 |
| Coolant Entry Style Code | 3: Axial Concentric and Radial Entry |
| Coolant Exit Style Code | 3: Axial Inclined Exit |
| Country of Origin | Sweden |
| Base Item Number | 1053 |
| Max. Hole Depth | 70 mm |
| Max. Hole Depth (Decimal) | 2.76 |
| Max. Hole Depth (Metric) | 70 |
| Max. Overhang (Decimal) | 2.76 |
| Max. Overhang (Metric) | 70 |
| Maximum Ramping Angle | 0 degrees |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 1.093 LB |
