Sandvik Coromant
5729889
Sandvik Coromant 5729889
Specifications
| Shank Diameter (Metric) | 63 |
|---|---|
| Material | Steel |
| Shank Diameter (Inch) | 2.48 |
| Series | Coromant Capto |

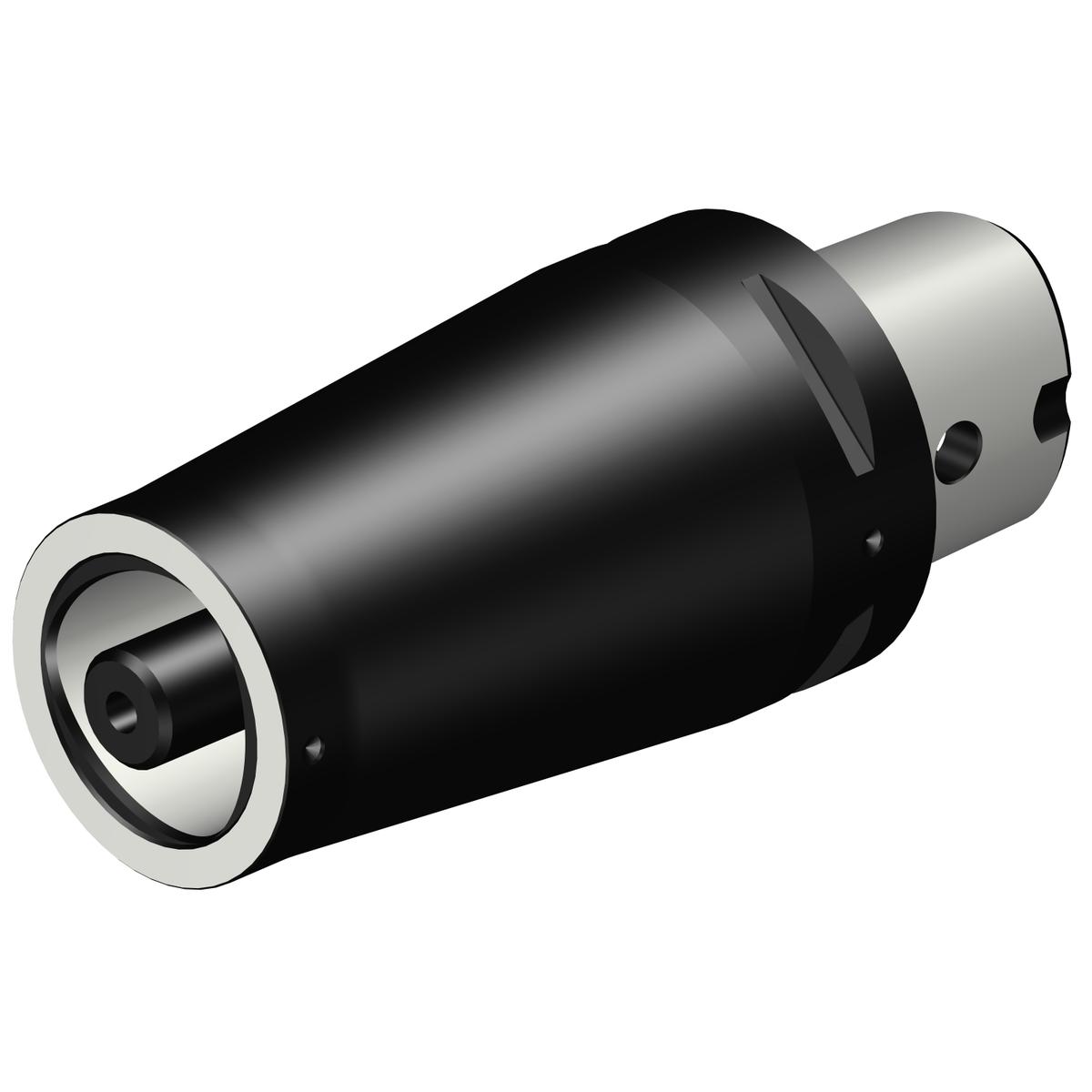

| Short Description | Coromant Capto® reduction adaptor |
| Unit Of Measure | Metric |
| Shank Diameter | 63 mm |
| Overall Length | 110 mm |
| Overall Length (Decimal) | 4.33 |
| Overall Length (Metric) | 110 |
| ANSI Code | C6-391.02-50 110A |
| Coolant Through | Yes |
| Connection Size | C6 |
| Body Diameter (Decimal) | 1.97 |
| Body Diameter (Metric) | 50 |
| Body Length (Decimal) | 0.39 |
| Body Length (Metric) | 10 |
| Functional Diameter (Decimal) | 1.73 |
| Functional Diameter (Metric) | 44 |
| Body Half Taper Angle | 0 degrees |
| Torque (ft lbf) | 70.068 |
| Torque (NM) | 95 |
| Coolant Pressure (Bar) | 80 |
| Coolant Entry Style Code | 3: axial concentric and radial entry |
| Coolant Exit Style Code | 1: axial concentric exit |
| Standard | ISO26623-1 |
| Balanced by Design | No |
| Data Chip Provision | No |
| Damping Property | No |
| Country of Origin | Japan |
| Base Item Number | 1147 |
| Body Length (Inch) | 0.39 |
| Coolant Pressure (lbf/in2) | 1160.3 |
| Kappa (Z-Axis Rot) | 0 degrees |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 4.751 LB |
