Sandvik Coromant
5730261
Sandvik Coromant 5730261
Specifications
| Shank Diameter (Metric) | 80 |
|---|---|
| Material | Steel |
| Shank Diameter (Inch) | 3.15 |

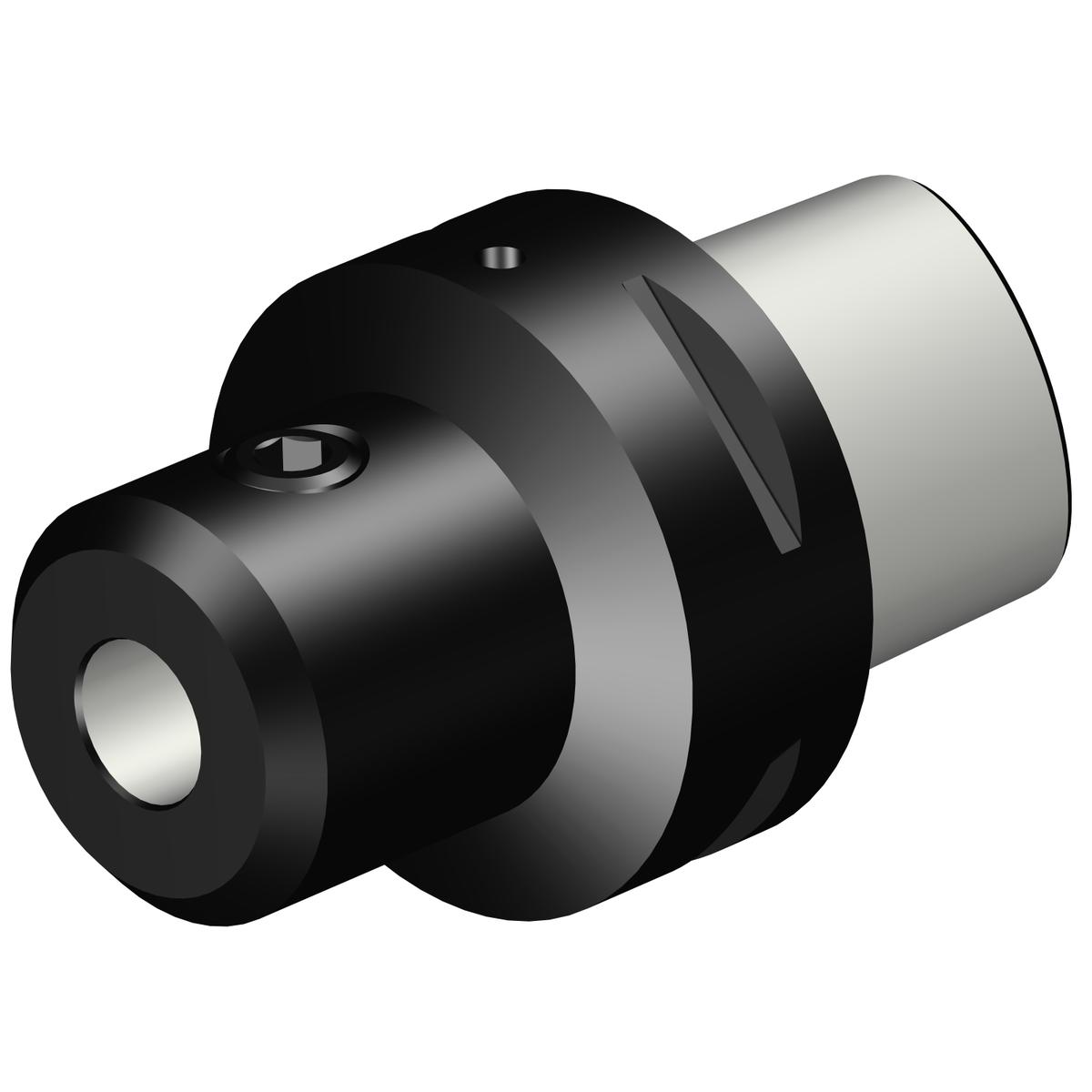

| Short Description | Coromant Capto® to Whistle Notch adaptor |
| Unit Of Measure | Metric |
| Shank Diameter | 80 mm |
| Overall Length | 80 mm |
| Overall Length (Decimal) | 3.15 |
| Overall Length (Metric) | 80 |
| ANSI Code | C8-391.21-20 080 |
| Coolant Through | Yes |
| Connection Size | C8 |
| Body Diameter (Decimal) | 2.05 |
| Body Diameter (Metric) | 52 |
| Body Length (Decimal) | 0.20 |
| Body Length (Metric) | 5 |
| Functional Diameter (Decimal) | 2.17 |
| Functional Diameter (Metric) | 55 |
| Body Half Taper Angle | 45 degrees |
| Torque (ft lbf) | 14.751 |
| Torque (NM) | 20 |
| Coolant Pressure (Bar) | 20 |
| Coolant Entry Style Code | 3: axial concentric and radial entry |
| Coolant Exit Style Code | 1: axial concentric exit |
| Standard | ISO26623-1 |
| Balanced by Design | No |
| Data Chip Provision | No |
| Damping Property | No |
| Country of Origin | Germany |
| Base Item Number | 2099 |
| Body Length (Inch) | 0.2 |
| Coolant Pressure (lbf/in2) | 290.075 |
| Kappa (Z-Axis Rot) | 0 degrees |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 5.373 LB |
