Sandvik Coromant
5730416

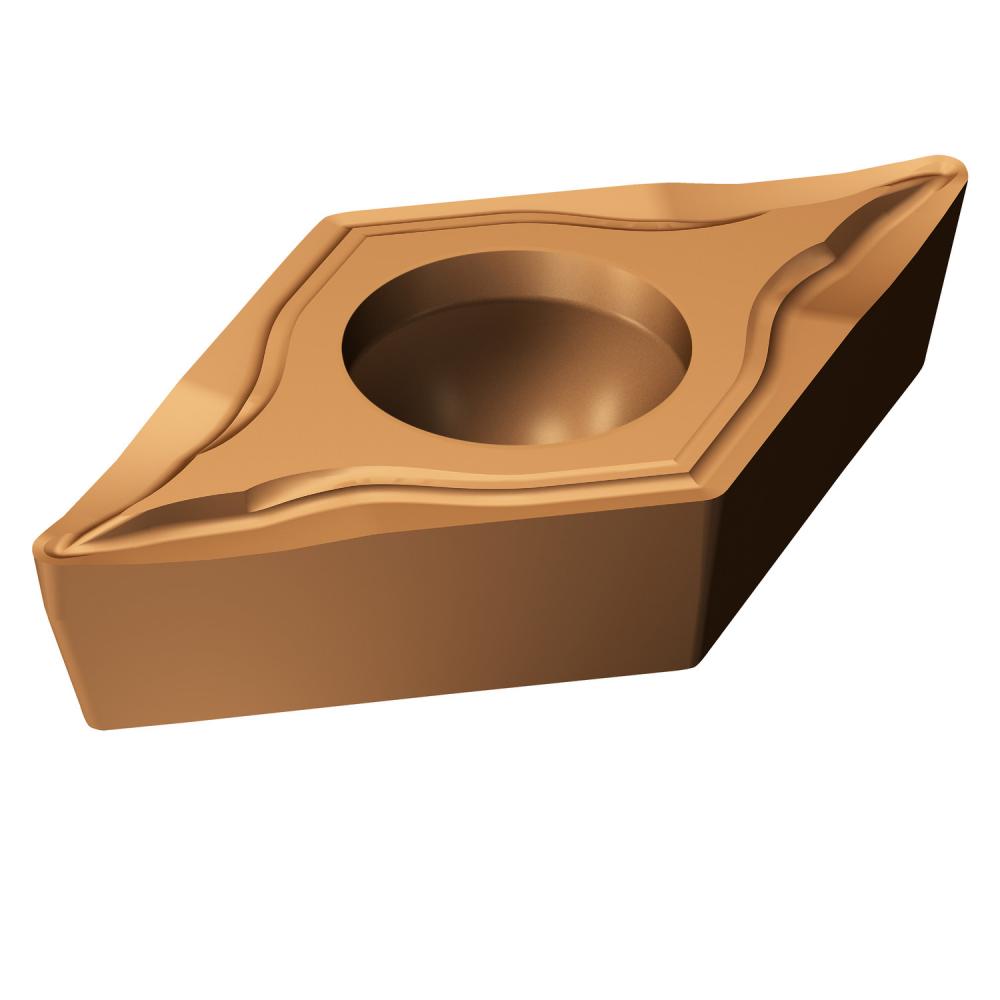

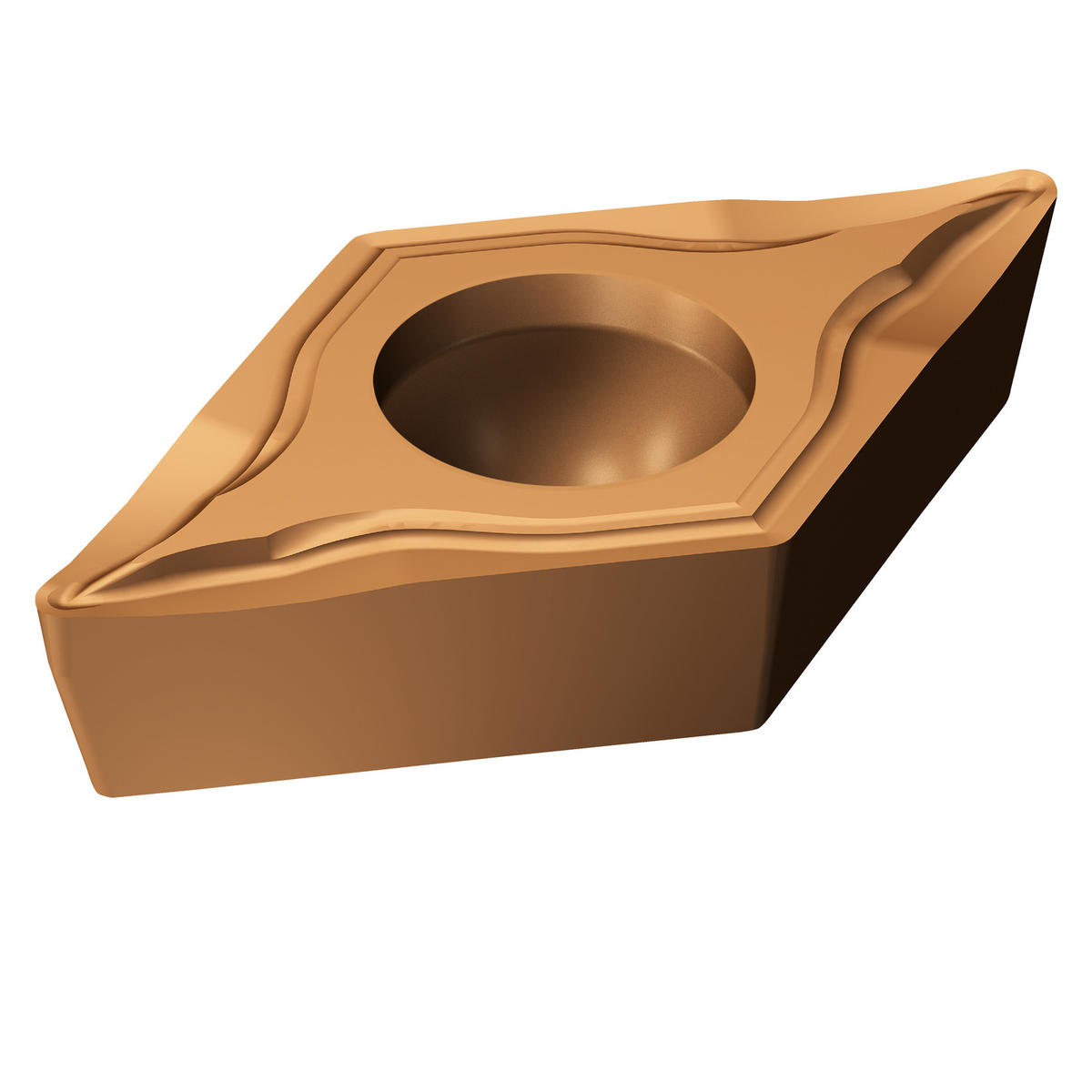

Sandvik Coromant 5730416
Specifications
| Coating/Finish | TiAlN+TiAlN |
|---|---|
| Thickness (Metric) | 3.97 |
| Corner Radius (Metric) | 0.2 |
| Material | WC or Cermet |
| Size | 32.5 |
| Corner Radius (Inch) | 0.01 |
| Style | DCGT |
| Thickness (Inch) | 0.16 |
| Short Description | CoroTurn® 107 insert for turning |
| Grade | 1125 |
| Unit Of Measure | Metric |
| Inscribed Circle Diameter | 9.53 mm |
| Inscribed Circle Diameter (Decimal) | 0.38 |
| Inscribed Circle Diameter (Metric) | 9.53 |
| Clearance Angle Major | 7 degrees |
| Length (Decimal) | 0.45 |
| Length (Metric) | 11.43 |
| Shape | Diamond |
| Country of Origin | Japan |
| Series | CoroTurn 107 |
| Chip Breaker Type | UM |
| ANSI Code | DCGT 3(2.5)0-UM 1125 |
| ISO Code | DCGT 11 T3 02-UM 1125 |
| Hand of Insert | Neutral |
| Fixing Hole Diameter (Decimal) | 0.17 |
| Fixing Hole Diameter (Metric) | 4.4 |
| Coating Process Type | PVD |
| Operation Type | Medium |
| Mounting Style | Screw/Clamp |
| Substrate Type | Carbide |
| Number of Cutting Edges | 2 |
| Wiper Edge Property | No |
| Application | Turning, General |
| ISO Material Classification | PMNS |
| Base Item Number | 1053 |
| Length | 11.43 mm |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 0.01 LB |
| Height Packed Product Metric | 13.5 mm |
| Insert Style | DCGT |
| Height Packed Product Imperial | 0.531 inch |
| ISO Code (packed) | DCGT11T302-UM1125 |
| Insert Size | 32.50 |
| Length Packed Product Metric | 129 mm |
| Life Cycle State | 20 |
| ISO Code (unpacked) | DCGT 11 T3 02-UM 1125 |
| Length Packed Product Imperial | 5.079 inch |
