Sandvik Coromant
5730809
Sandvik Coromant 5730809
Specifications
| Overall Length (Metric) | 250 |
|---|---|
| Series | T-Max P |
| Tool Lead Angle | -5 degrees |
| Overall Length (Inch) | 9.84 |
| Insert Style | DCLNR/L |

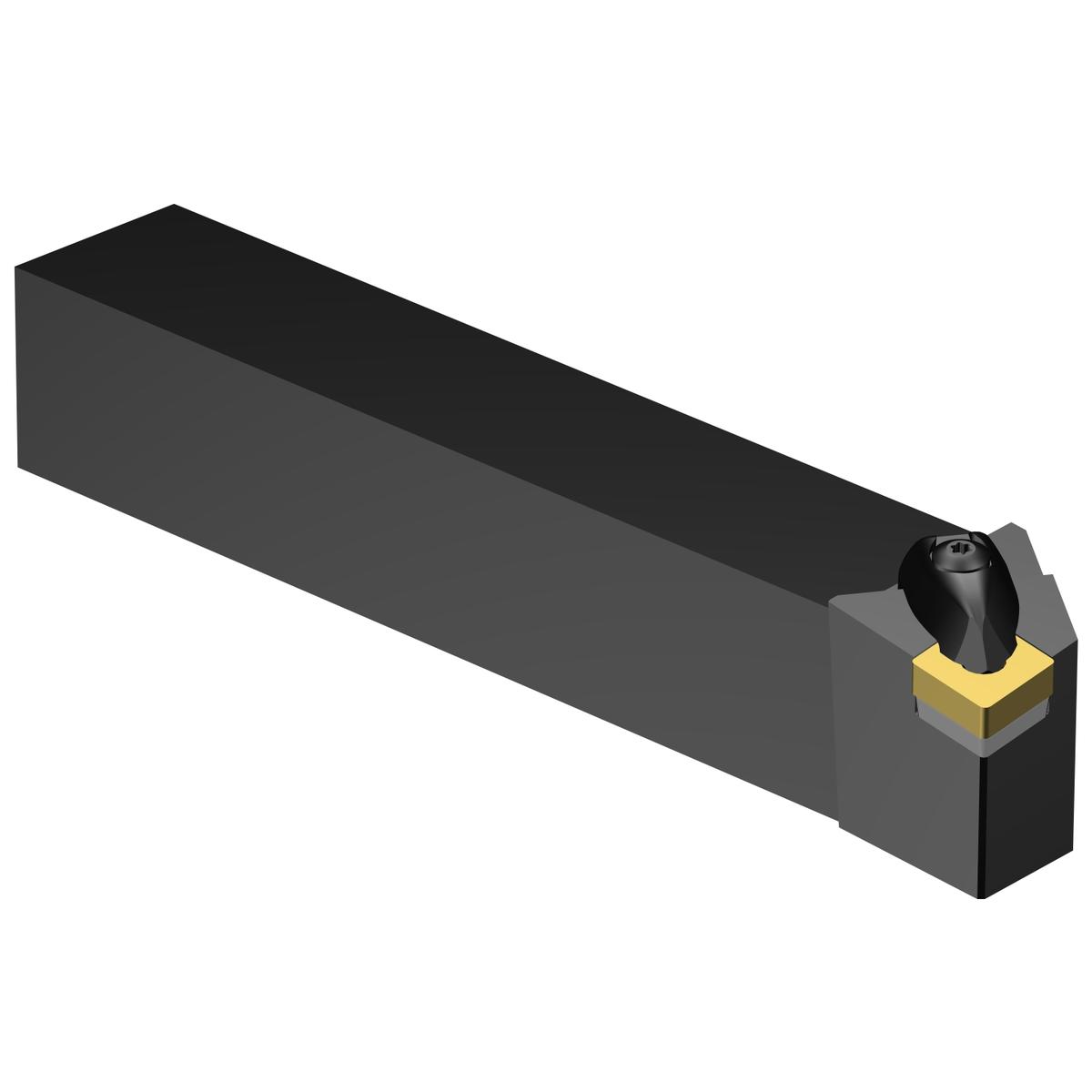

| Short Description | T-Max® P shank tool for turning |
| Direction Of Hand | Left |
| Unit Of Measure | Metric |
| Material | Steel |
| Shank Width | 40 mm |
| Orthogonal Rake Angle | -6 degrees |
| Shank Width (Decimal) | 1.06 |
| Shank Width (Metric) | 40 |
| Shank Height (Metric) | 40 |
| Inclination Angle | -6 degrees |
| Overall Height (Metric) | 40 |
| Overall Height (Decimal) | 1.58 |
| Overall Length | 250 mm |
| Insert Compatibility | CNMG 190612 |
| ANSI Code | DCLNL 4040S 19 |
| Coolant Through | No |
| Overall Width (Decimal) | 1.97 |
| Overall Width (Metric) | 50 |
| Shank Height (Decimal) | 1.58 |
| Clamping Type Code | Clamp |
| Torque | 6.4 Nm |
| Machine Side Body Angle | 0 degrees |
| Workpiece Side Body Angle | 0 degrees |
| Tool Cutting Edge Angle | 95 degrees |
| Coolant Entry Style Code | 0: Without Coolant |
| Coolant Exit Style Code | 0: No Coolant Exit |
| Country of Origin | India |
| Base Item Number | 1049 |
| Max. Overhang (Decimal) | 1.71 |
| Max. Overhang (Metric) | 43.4 |
| Maximum Ramping Angle | 0 degrees |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 6.656 LB |
