Sandvik Coromant
5730868

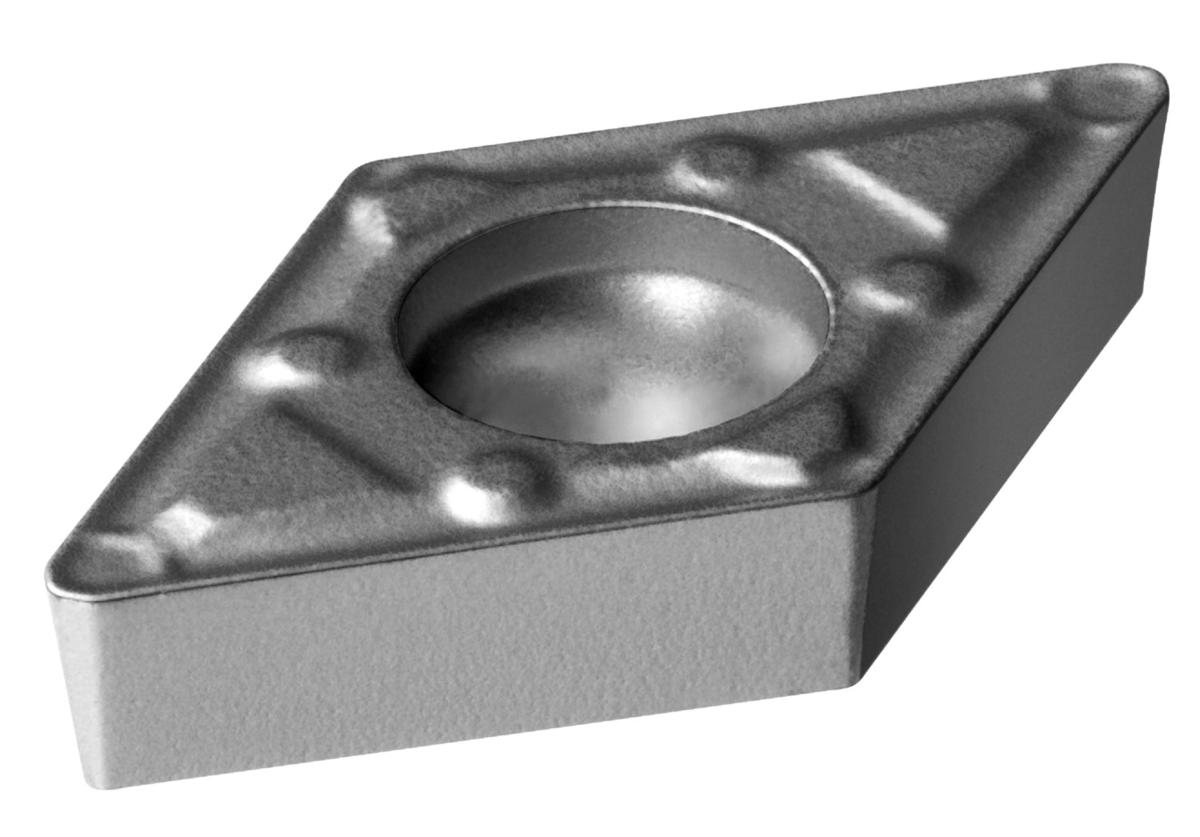

Sandvik Coromant 5730868
Specifications
| Coating/Finish | Uncoated |
|---|---|
| Thickness (Metric) | 3.97 |
| Corner Radius (Metric) | 0.79 |
| Material | Cermets |
| Size | 32.52 |
| Corner Radius (Inch) | 0.03 |
| Style | DCMX |
| Thickness (Inch) | 0.16 |
| Short Description | CoroTurn® 107 insert for turning |
| Grade | 5015 |
| Unit Of Measure | Metric |
| Inscribed Circle Diameter | 9.53 mm |
| Inscribed Circle Diameter (Decimal) | 0.38 |
| Inscribed Circle Diameter (Metric) | 9.53 |
| Clearance Angle Major | 7 degrees |
| Length (Decimal) | 0.43 |
| Length (Metric) | 10.83 |
| Shape | Diamond |
| Country of Origin | Sweden |
| Series | CoroTurn 107 |
| Chip Breaker Type | WF |
| ANSI Code | DCMX 3(2.5)2-WF 5015 |
| ISO Code | DCMX 11 T3 08-WF 5015 |
| Hand of Insert | Neutral |
| Fixing Hole Diameter (Decimal) | 0.17 |
| Fixing Hole Diameter (Metric) | 4.4 |
| Coating Process Type | Uncoat |
| Operation Type | Finishing |
| Mounting Style | Screw/Clamp |
| Substrate Type | Cermet |
| Number of Cutting Edges | 2 |
| Major Cutting Edge Angle | 93 degrees |
| Wiper Edge Property | Yes |
| Application | Turning, General |
| ISO Material Classification | PK |
| Base Item Number | 1053 |
| Length | 10.83 mm |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 0.005 LB |
| Height Packed Product Metric | 11 mm |
| Insert Style | DCMX |
| Height Packed Product Imperial | 0.433 inch |
| ISO Code (packed) | DCMX11T308-WF5015 |
| Insert Size | 32.52 |
| Length Packed Product Metric | 95 mm |
| Life Cycle State | 20 |
| ISO Code (unpacked) | DCMX 11 T3 08-WF 5015 |
| Length Packed Product Imperial | 3.74 inch |
