Sandvik Coromant
5730975

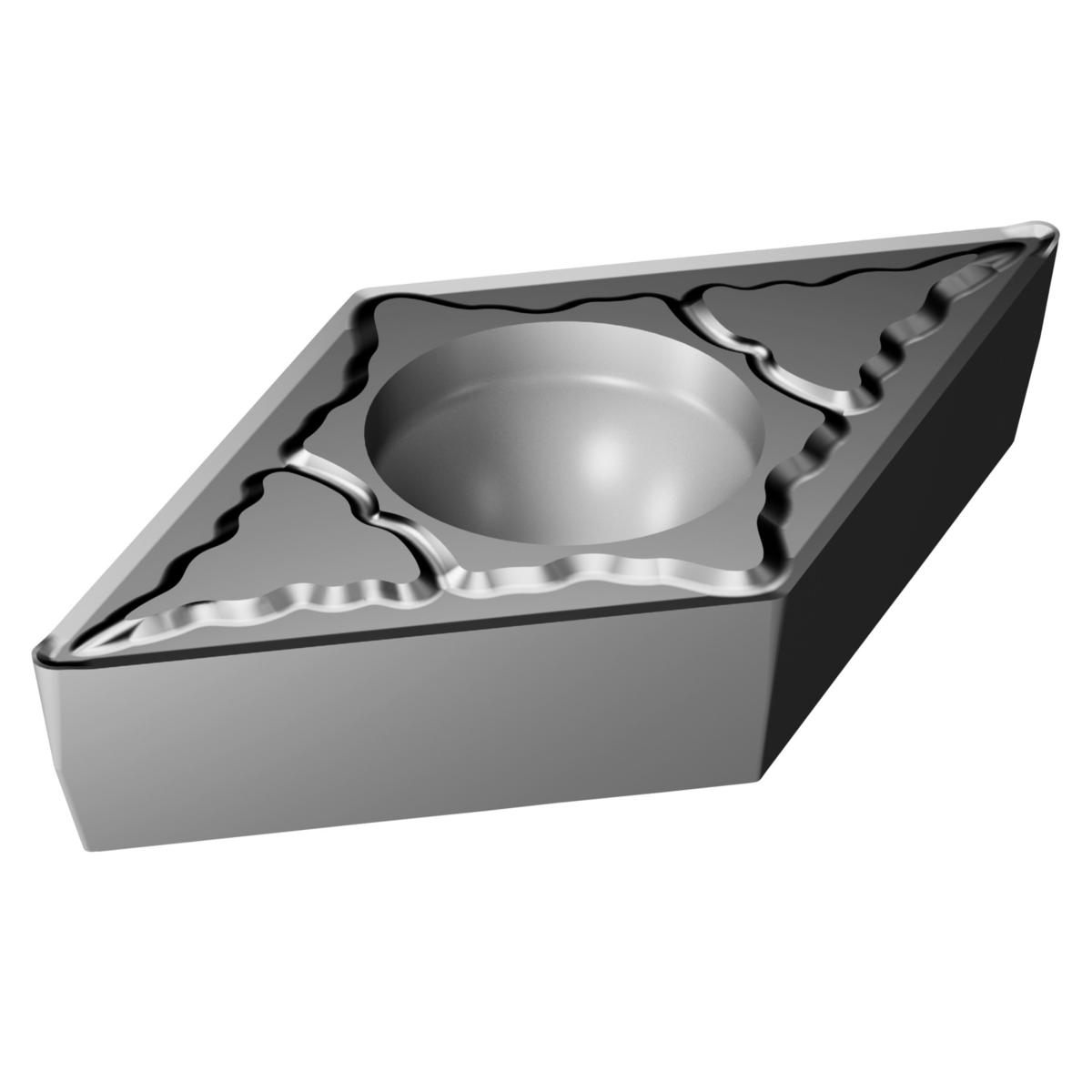

Sandvik Coromant 5730975
Specifications
| Coating/Finish | TiAlN |
|---|---|
| Thickness (Metric) | 3.97 |
| Corner Radius (Metric) | 0.4 |
| Material | WC or Cermet |
| Size | 32.51 |
| Corner Radius (Inch) | 0.02 |
| Style | DCMT |
| Thickness (Inch) | 0.16 |
| Short Description | CoroTurn® 107 insert for turning |
| Grade | 1105 |
| Unit Of Measure | Metric |
| Inscribed Circle Diameter | 9.53 mm |
| Inscribed Circle Diameter (Decimal) | 0.38 |
| Inscribed Circle Diameter (Metric) | 9.53 |
| Clearance Angle Major | 7 degrees |
| Length (Decimal) | 0.44 |
| Length (Metric) | 11.23 |
| Shape | Diamond |
| Country of Origin | India |
| Series | CoroTurn 107 |
| Chip Breaker Type | MM |
| ANSI Code | DCMT 3(2.5)1-MM 1105 |
| ISO Code | DCMT 11 T3 04-MM 1105 |
| Hand of Insert | Neutral |
| Fixing Hole Diameter (Decimal) | 0.17 |
| Fixing Hole Diameter (Metric) | 4.4 |
| Coating Process Type | PVD |
| Operation Type | Medium |
| Mounting Style | Screw/Clamp |
| Substrate Type | Carbide |
| Number of Cutting Edges | 2 |
| Wiper Edge Property | No |
| Application | Turning, General |
| ISO Material Classification | PMS |
| Base Item Number | 1053 |
| Length | 11.23 mm |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 0.011 LB |
| Height Packed Product Metric | 11 mm |
| Insert Style | DCMT |
| Height Packed Product Imperial | 0.433 inch |
| ISO Code (packed) | DCMT11T304-MM1105 |
| Insert Size | 32.51 |
| Length Packed Product Metric | 95 mm |
| Life Cycle State | 30 |
| ISO Code (unpacked) | DCMT 11 T3 04-MM 1105 |
| Length Packed Product Imperial | 3.74 inch |
