Sandvik Coromant
5731232

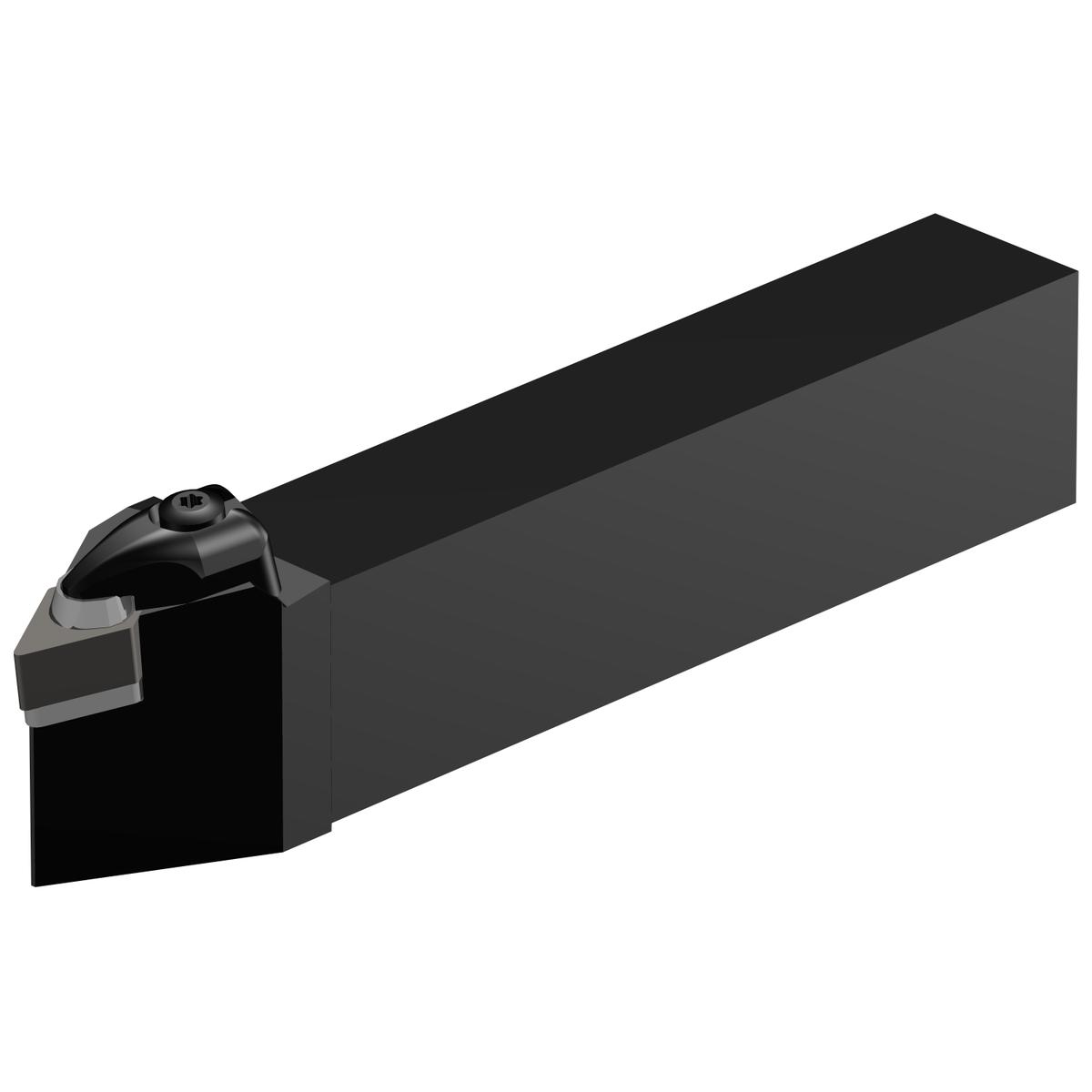

Sandvik Coromant 5731232
Specifications
| Overall Length (Metric) | 170 |
|---|---|
| Series | T-Max P |
| Tool Lead Angle | 27.5 degrees |
| Overall Length (Inch) | 6.69 |
| Insert Style | DDNNR/L..-3 |
| Short Description | T-Max® shank tool for turning |
| Direction Of Hand | Right |
| Unit Of Measure | Metric |
| Material | Steel |
| Shank Width | 25 mm |
| Orthogonal Rake Angle | -6 degrees |
| Shank Width (Decimal) | 0.02 |
| Shank Width (Metric) | 25 |
| Shank Height (Metric) | 32 |
| Inclination Angle | -7 degrees |
| Overall Height (Metric) | 32 |
| Overall Height (Decimal) | 1.26 |
| Overall Length | 170 mm |
| Insert Compatibility | DNGQ 150708 |
| ANSI Code | DDNNR 3225P 15-2 |
| Coolant Through | No |
| Overall Width (Decimal) | 0.51 |
| Overall Width (Metric) | 13 |
| Shank Height (Decimal) | 1.26 |
| Clamping Type Code | Clamp |
| Torque | 3.9 Nm |
| Machine Side Body Angle | 0 degrees |
| Workpiece Side Body Angle | 0 degrees |
| Tool Cutting Edge Angle | 62.5 degrees |
| Coolant Entry Style Code | 0: Without Coolant |
| Coolant Exit Style Code | 0: No Coolant Exit |
| Country of Origin | Sweden |
| Base Item Number | 1049 |
| Max. Overhang (Decimal) | 1.62 |
| Max. Overhang (Metric) | 41.2 |
| Maximum Ramping Angle | 57 degrees |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 2.145 LB |
