Sandvik Coromant
5731575

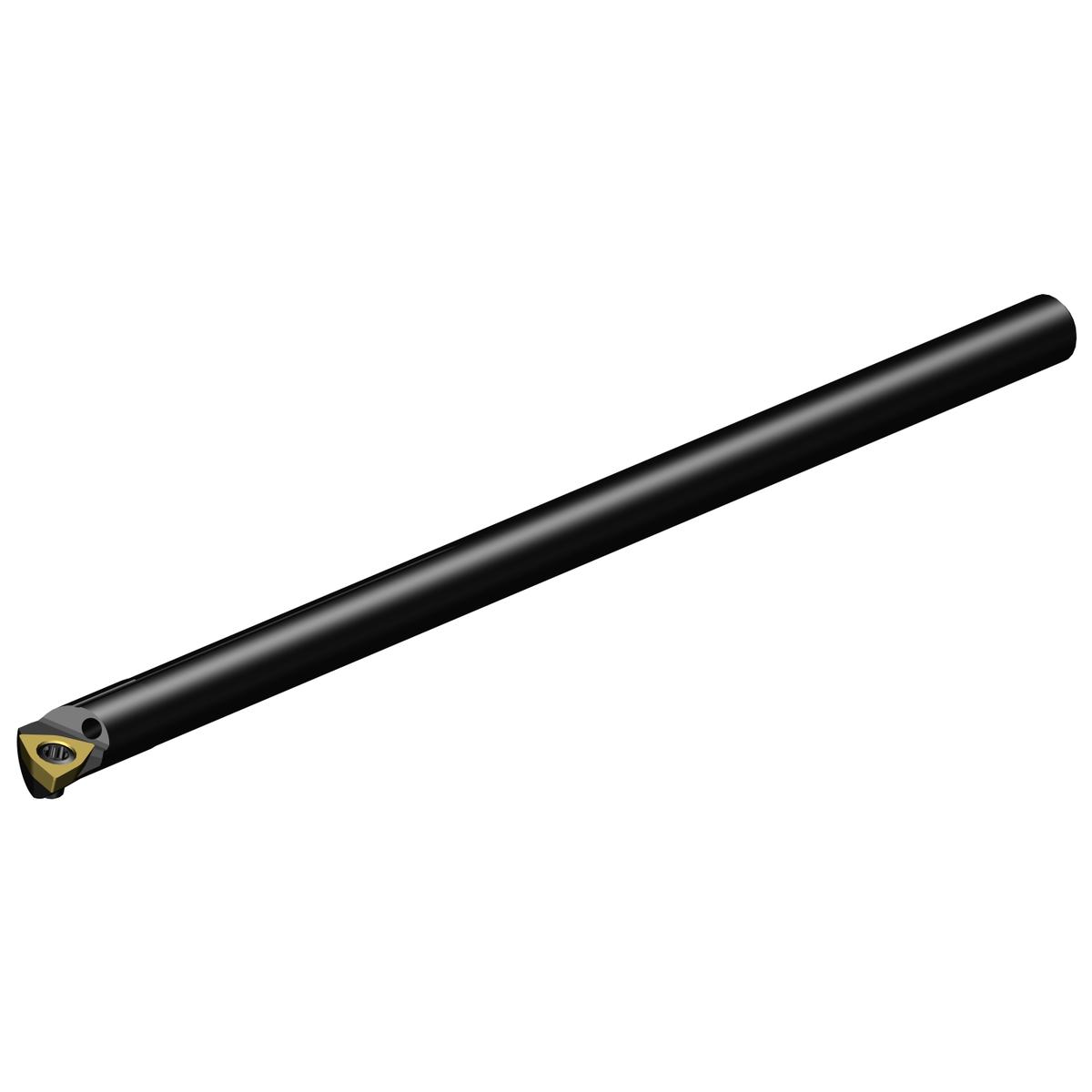

Sandvik Coromant 5731575
Specifications
| Minimum Bore Diameter (Metric) | 7 |
|---|---|
| Minimum Bore Diameter (Inch) | 0.28 |
| Shank Diameter (Metric) | 5 |
| Direction Of Hand | Right |
| Overall Length (Metric) | 100 |
| Shank Diameter (Inch) | 0.2 |
| Overall Length (Inch) | 3.94 |
| Short Description | CoroTurn® 111 solid carbide boring bar for turning |
| Unit Of Measure | Metric |
| Series | CoroTurn 111 |
| Orthogonal Rake Angle | 0 degrees |
| Overall Length | 100 mm |
| Shank Diameter | 5 mm |
| Coolant Through | Yes |
| Tool Lead Angle | -5 degrees |
| ANSI Code | E05H-SWLPR 02-R |
| Body Material | Carbide |
| Machine Side Body Angle | 0 degrees |
| Workpiece Side Body Angle | 0 degrees |
| Tool Cutting Edge Angle | 95 degrees |
| Body Diameter (Decimal) | 0.2 |
| Body Diameter (Metric) | 5 |
| Coolant Pressure | 145.038 lbf/in2 |
| Overall Width (Decimal) | 0.16 |
| Overall Width (Metric) | 4 |
| Inclination Angle | -14 degrees |
| Clamping Type Code | Screw/Clamp |
| Torque | 0.6 Nm |
| Coolant Entry Style Code | 1: Axial Concentric Entry |
| Coolant Exit Style Code | 3: Axial Inclined Exit |
| Country of Origin | United States |
| Base Item Number | 1054 |
| Max. Overhang (Decimal) | 1.18 |
| Max. Overhang (Metric) | 30 |
| Maximum Ramping Angle | 0 degrees |
| Min Bore Diameter | 7 mm |
| Min. Overhang (Decimal) | 0.43 |
| Min. Overhang (Metric) | 11 |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 0.031 LB |
| Height Packed Product Metric | 40 mm |
| Height Packed Product Imperial | 1.575 inch |
| ISO Code (packed) | E05H-SWLPR02-R |
| Length Packed Product Metric | 108 mm |
| Life Cycle State | 20 |
| ISO Code (unpacked) | E05H-SWLPR 02-R |
| Length Packed Product Imperial | 4.252 inch |
