Sandvik Coromant
5732336

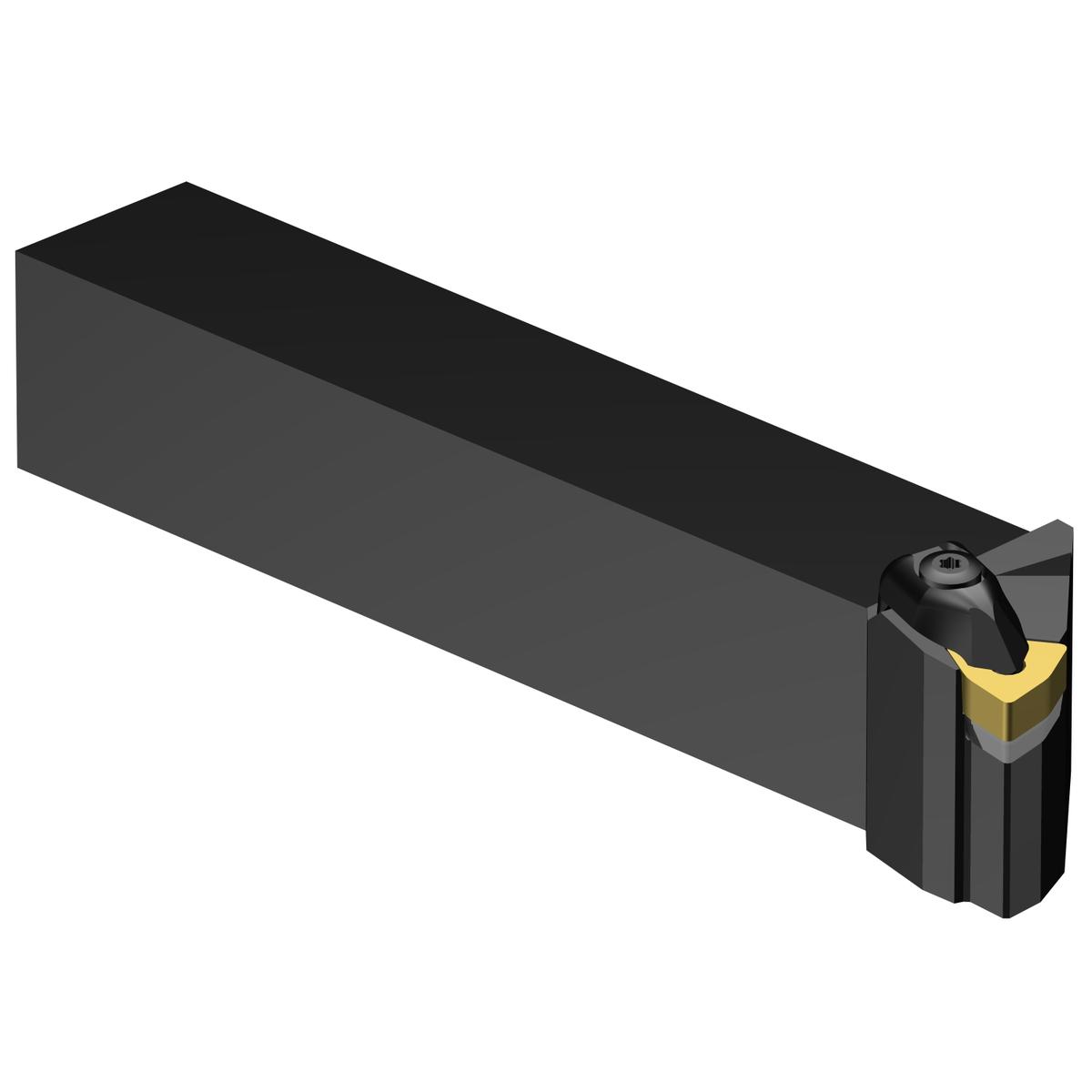

Sandvik Coromant 5732336
Specifications
| Overall Length (Metric) | 152.4 |
|---|---|
| Series | T-Max P |
| Tool Lead Angle | -5 degrees |
| Overall Length (Inch) | 6 |
| Insert Style | DWLNR/L (INCH) |
| Short Description | T-Max® P shank tool for turning |
| Direction Of Hand | Left |
| Unit Of Measure | Imperial |
| Material | Steel |
| Shank Width | 1 Inch |
| Orthogonal Rake Angle | -6 degrees |
| Shank Width (Decimal) | 1.77 |
| Shank Width (Metric) | 25.4 |
| Shank Height (Metric) | 25.4 |
| Inclination Angle | -6 degrees |
| Overall Height (Metric) | 25.4 |
| Overall Height (Decimal) | 1 |
| Overall Length | 6 Inch |
| Insert Compatibility | WNMG 060408 |
| ANSI Code | DWLNL 16 3D |
| Coolant Through | No |
| Overall Width (Decimal) | 1.25 |
| Overall Width (Metric) | 31.75 |
| Shank Height (Decimal) | 1 |
| Clamping Type Code | Clamp |
| Torque | 1.7 Nm |
| Machine Side Body Angle | 0 degrees |
| Workpiece Side Body Angle | 0 degrees |
| Tool Cutting Edge Angle | 95 degrees |
| Coolant Entry Style Code | 0: Without Coolant |
| Coolant Exit Style Code | 0: No Coolant Exit |
| Country of Origin | Sweden |
| Base Item Number | 1049 |
| Max. Overhang (Decimal) | 1.95 |
| Max. Overhang (Metric) | 49.53 |
| Maximum Ramping Angle | 0 degrees |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Weight | 1.614 LB |
