Sandvik Coromant
5732462
Sandvik Coromant 5732462
Specifications
| Overall Length (Metric) | 152.4 |
|---|---|
| Series | T-Max P |
| Tool Lead Angle | 17.5 degrees |
| Overall Length (Inch) | 6 |
| Insert Style | DVVNN (INCH) |

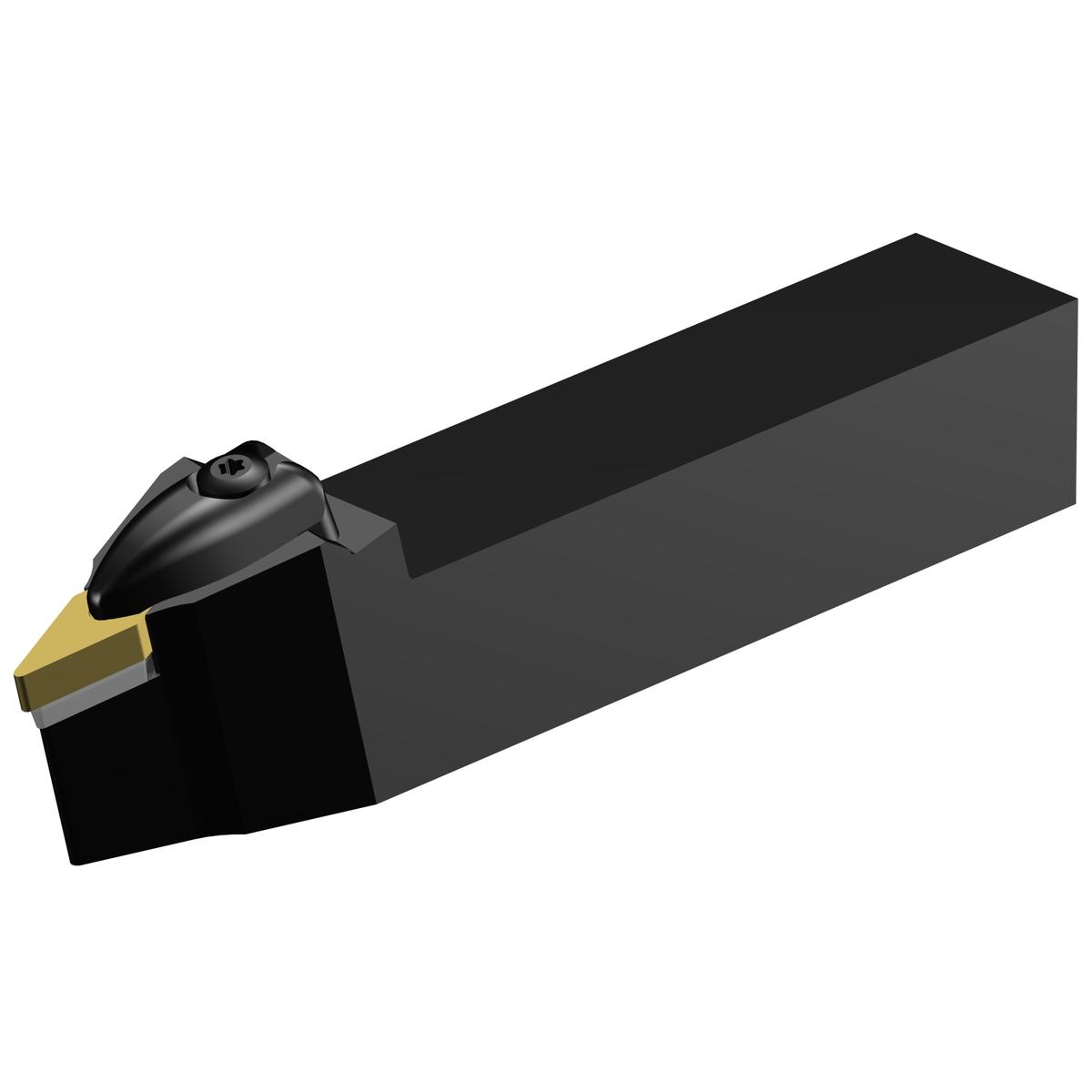

| Short Description | T-Max® P shank tool for turning |
| Direction Of Hand | Neutral |
| Unit Of Measure | Imperial |
| Material | Steel |
| Shank Width | 1 Inch |
| Orthogonal Rake Angle | -4 degrees |
| Shank Width (Decimal) | 1.38 |
| Shank Width (Metric) | 25.4 |
| Shank Height (Metric) | 25.4 |
| Inclination Angle | -13 degrees |
| Overall Height (Metric) | 25.4 |
| Overall Height (Decimal) | 1 |
| Overall Length | 6 Inch |
| Insert Compatibility | VNMG 160408 |
| ANSI Code | DVVNN 16 3D |
| Coolant Through | No |
| Overall Width (Decimal) | 0.52 |
| Overall Width (Metric) | 13.31 |
| Shank Height (Decimal) | 1 |
| Clamping Type Code | Clamp |
| Torque | 3 Nm |
| Machine Side Body Angle | 0 degrees |
| Workpiece Side Body Angle | 0 degrees |
| Tool Cutting Edge Angle | 72.5 degrees |
| Coolant Entry Style Code | 0: Without Coolant |
| Coolant Exit Style Code | 0: No Coolant Exit |
| Country of Origin | Sweden |
| Base Item Number | 1049 |
| Max. Overhang (Decimal) | 1.88 |
| Max. Overhang (Metric) | 47.75 |
| Maximum Ramping Angle | 70 degrees |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Weight | 1.493 LB |
