Sandvik Coromant
5732468

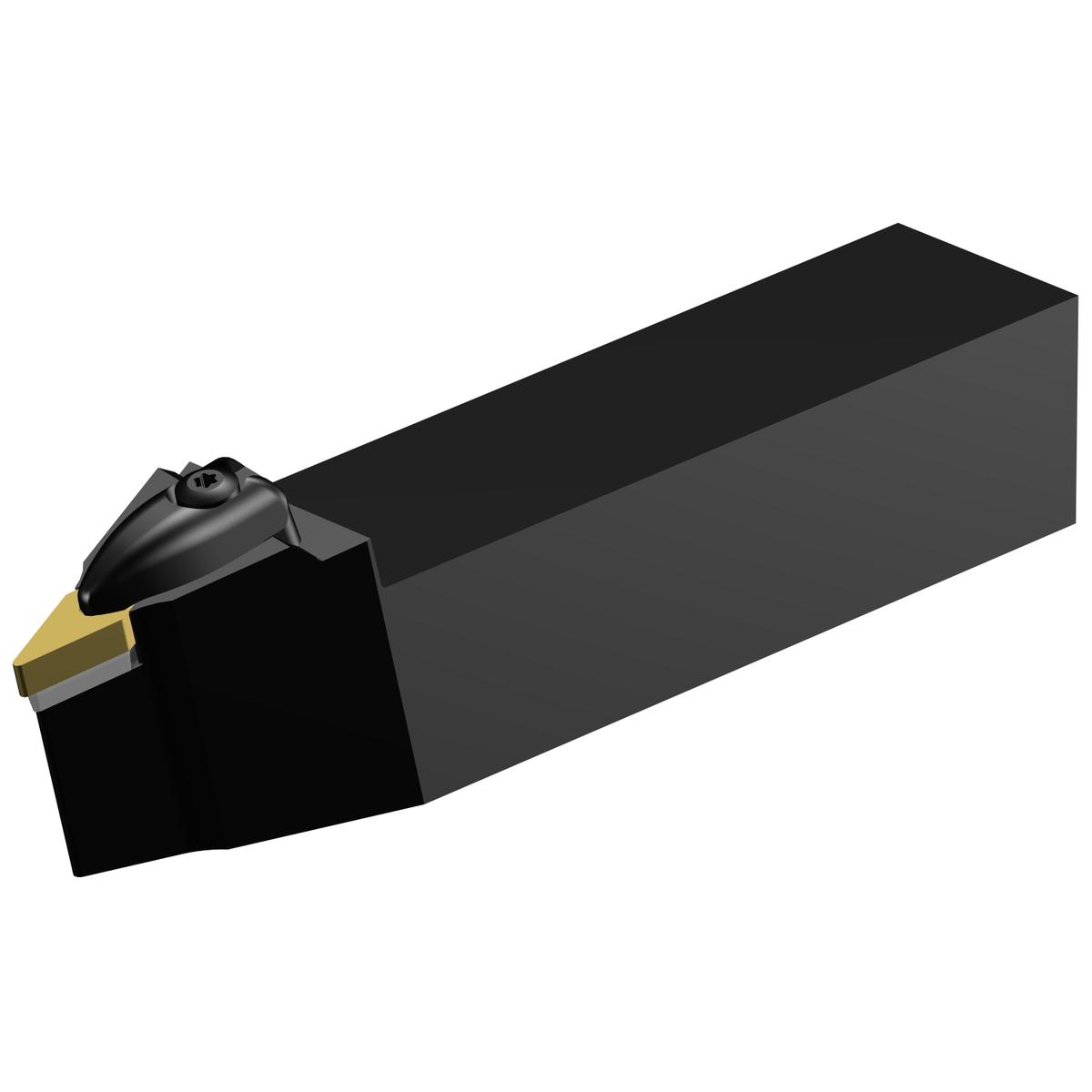

Sandvik Coromant 5732468
Specifications
| Overall Length (Metric) | 170 |
|---|---|
| Series | T-Max P |
| Tool Lead Angle | 17.5 degrees |
| Overall Length (Inch) | 6.69 |
| Insert Style | DVVNN |
| Short Description | T-Max® P shank tool for turning |
| Direction Of Hand | Neutral |
| Unit Of Measure | Metric |
| Material | Steel |
| Shank Width | 32 mm |
| Orthogonal Rake Angle | -4 degrees |
| Shank Width (Decimal) | 1.06 |
| Shank Width (Metric) | 32 |
| Shank Height (Metric) | 32 |
| Inclination Angle | -13 degrees |
| Overall Height (Metric) | 32 |
| Overall Height (Decimal) | 1.26 |
| Overall Length | 170 mm |
| Insert Compatibility | VNMG 160408 |
| ANSI Code | DVVNN 3232P 16 |
| Coolant Through | No |
| Overall Width (Decimal) | 0.65 |
| Overall Width (Metric) | 16.6 |
| Shank Height (Decimal) | 1.26 |
| Clamping Type Code | Clamp |
| Torque | 3 Nm |
| Machine Side Body Angle | 0 degrees |
| Workpiece Side Body Angle | 0 degrees |
| Tool Cutting Edge Angle | 72.5 degrees |
| Coolant Entry Style Code | 0: Without Coolant |
| Coolant Exit Style Code | 0: No Coolant Exit |
| Country of Origin | Sweden |
| Base Item Number | 1049 |
| Max. Overhang (Decimal) | 1.88 |
| Max. Overhang (Metric) | 47.8 |
| Maximum Ramping Angle | 70 degrees |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 2.579 LB |
