Sandvik Coromant
5732485

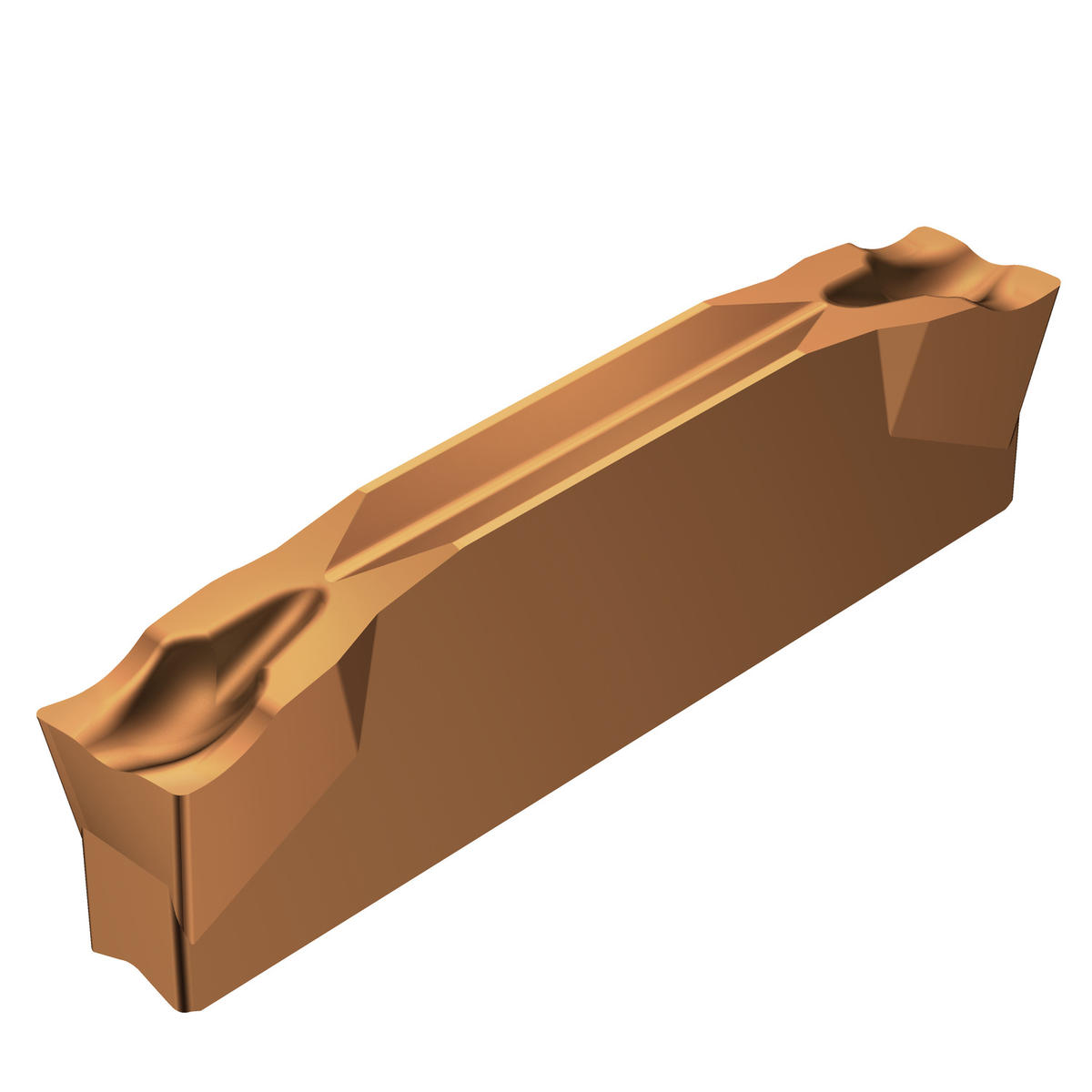

Sandvik Coromant 5732485
Specifications
| Coating/Finish | TiAlN+TiAlN |
|---|---|
| Series | CoroCut 1-2 |
| Insert Size | G2 |
| Material | WC or Cermet |
| Short Description | CoroCutĀ® 1-2 insert for parting |
| Unit Of Measure | Metric |
| Style | L123 |
| Grade | 1145 |
| Cutting Width | 3 mm |
| Chip Breaker Type | CM |
| Cutting Width (Decimal) | 0.118 |
| Cutting Width (Metric) | 3 |
| ANSI Code | L123G2-0300-0502-CM 1145 |
| ISO Code | L123G2-0300-0502-CM 1145 |
| Insert Seat Size Code | G |
| Hand of Insert | Left |
| Coating Process Type | PVD |
| Operation Type | Medium |
| Mounting Style | Clamp |
| Substrate Type | Carbide |
| Number of Cutting Edges | 2 |
| Clearance Angle Major | 7 degrees |
| Machine Side Body Angle | 0 degrees |
| Major Left Hand Cutting Edge Angle | 5 degrees |
| Insert Gauge Length (Decimal) | 0.78 |
| Insert Gauge Length (Metric) | 19.92 |
| Corner Radius Left (Decimal) | 0.008 |
| Corner Radius Left (Metric) | 0.2 |
| Corner Radius Right (Decimal) | 0.008 |
| Corner Radius Right (Metric) | 0.2 |
| Corner Radius Lower Tolerance (Decimal) | -0.003937 |
| Corner Radius Lower Tolerance (Metric) | -0.1 |
| Corner Radius Upper Tolerance (Decimal) | 0.003937 |
| Corner Radius Upper Tolerance (Metric) | 0.1 |
| Cutting Width Upper Tolerance (Decimal) | 0.003937 |
| Cutting Width Upper Tolerance (Metric) | 0.1 |
| Application | Turning, Parting/Grooving |
| ISO Material Classification | PMS |
| Country of Origin | Sweden |
| Base Item Number | 1073 |
| Cutting Width (Inch) | 0.118 |
| Max. Cutting Depth (Decimal) | 0.74 |
| Max. Cutting Depth (Metric) | 18.8 |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 0.007 LB |
| Insert Style | L123 |
| ISO Code (packed) | L123G2-0300-0502-CM1145 |
| Life Cycle State | 30 |
| ISO Code (unpacked) | L123G2-0300-0502-CM 1145 |
