Sandvik Coromant
5732882
Sandvik Coromant 5732882
Specifications
| Overall Length (Metric) | 150 |
|---|---|
| Overall Length (Inch) | 5.91 |
| Shank Width (Inch) | 0.98 |
| Shank Width (Metric) | 25 |
| Insert Style | R/LF123..C |
| Base Item Number | 1073 |
| Max. Cutting Depth | 8 mm |
| Max. Cutting Depth (Decimal) | 0.32 |
| Max. Cutting Depth (Metric) | 8 |
| Max. Overhang (Decimal) | 2.17 |
| Max. Overhang (Metric) | 55 |
| Min. Overhang (Decimal) | 1.18 |
| Min. Overhang (Metric) | 30 |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 1.552 LB |

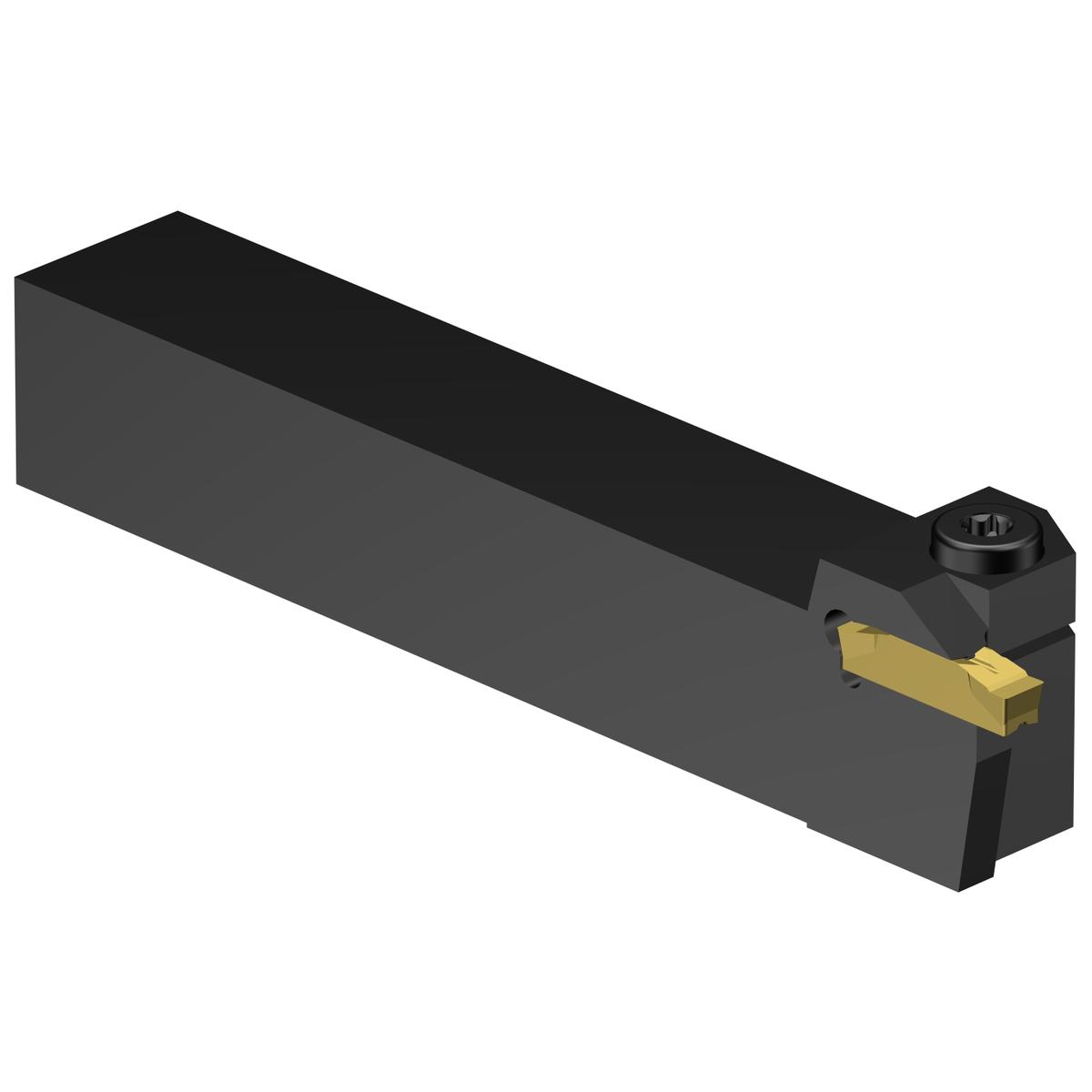

| Short Description | CoroCut® 1-2 shank tool for shallow grooving |
| Series | CoroCut 1-2 |
| Direction Of Hand | Left |
| Unit Of Measure | Metric |
| Insert Compatibility | N123K2-0600-0004-TF |
| Shank Height | 25 mm |
| Shank Width | 25 mm |
| Shank Height (Decimal) | 0.98 |
| Shank Height (Metric) | 25 |
| ANSI Code | LF123K08-2525CM |
| Coolant Through | No |
| Overall Width (Decimal) | 1.02 |
| Overall Width (Metric) | 26 |
| Overall Height (Decimal) | 0.98 |
| Overall Height (Metric) | 25 |
| Insert Seat Size Code | K |
| Workpiece Side Body Angle | 0 degrees |
| Clamping Type Code | Clamp |
| Torque | 4.5 Nm |
| Coolant Entry Style Code | 0: Without Coolant |
| Coolant Exit Style Code | 0: No Coolant Exit |
| Country of Origin | Sweden |
