Sandvik Coromant
5733099
Sandvik Coromant 5733099
Specifications
| Overall Length (Metric) | 152.4 |
|---|---|
| Series | CoroCut 1-2 |
| Overall Length (Inch) | 6 |
| Insert Style | R/LG123..BM (INCH) |

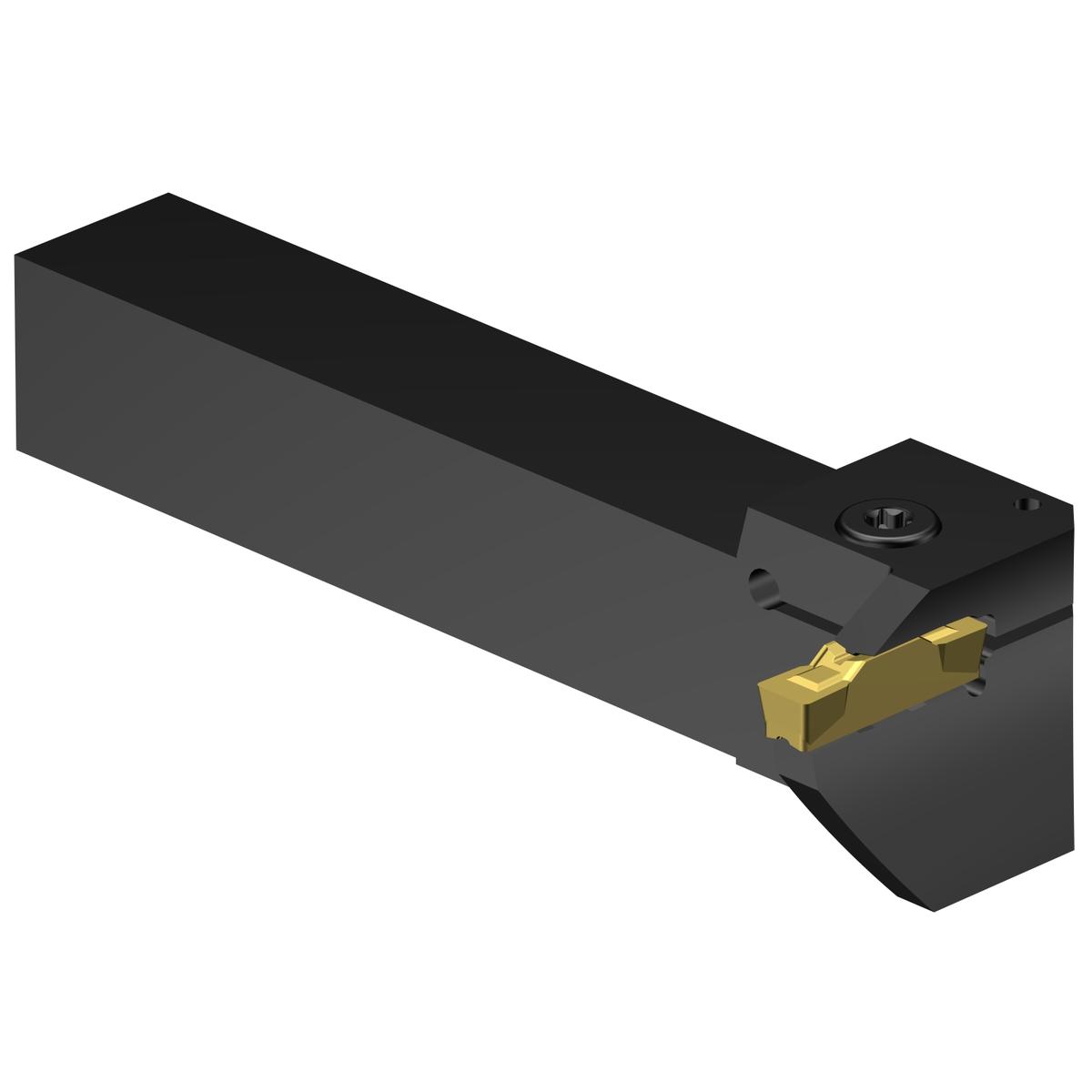

| Short Description | CoroCut® 1-2 shank tool for face grooving |
| Direction Of Hand | Left |
| Unit Of Measure | Imperial |
| Shank Width | 1 Inch |
| Shank Width (Decimal) | 1.38 |
| Shank Width (Metric) | 25.4 |
| Shank Height (Metric) | 25.4 |
| Overall Height (Metric) | 25.4 |
| Overall Height (Decimal) | 1 |
| Overall Length | 6 Inch |
| Insert Compatibility | N123L2-0800-0008-TF |
| ANSI Code | LG123L079-16B-050BM |
| Coolant Through | No |
| Overall Width (Decimal) | 1.85 |
| Overall Width (Metric) | 46.99 |
| Shank Height (Decimal) | 1 |
| Clamping Type Code | Clamp |
| Torque | 5 Nm |
| Workpiece Side Body Angle | 90 degrees |
| Coolant Entry Style Code | 0: Without Coolant |
| Coolant Exit Style Code | 0: No Coolant Exit |
| Country of Origin | India |
| Base Item Number | 1073 |
| Max. Axial Groove Outside Diameter (Decimal) | 3.15 |
| Max. Axial Groove Outside Diameter (Metric) | 80 |
| Max. Cutting Depth (Decimal) | 0.79 |
| Max. Cutting Depth (Metric) | 20.07 |
| Max. Overhang (Decimal) | 1.47 |
| Max. Overhang (Metric) | 37.4 |
| Min. Axial Groove Inside Diameter (Decimal) | 1.97 |
| Min. Axial Groove Inside Diameter (Metric) | 50 |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Weight | 1.861 LB |
