Sandvik Coromant
5733267

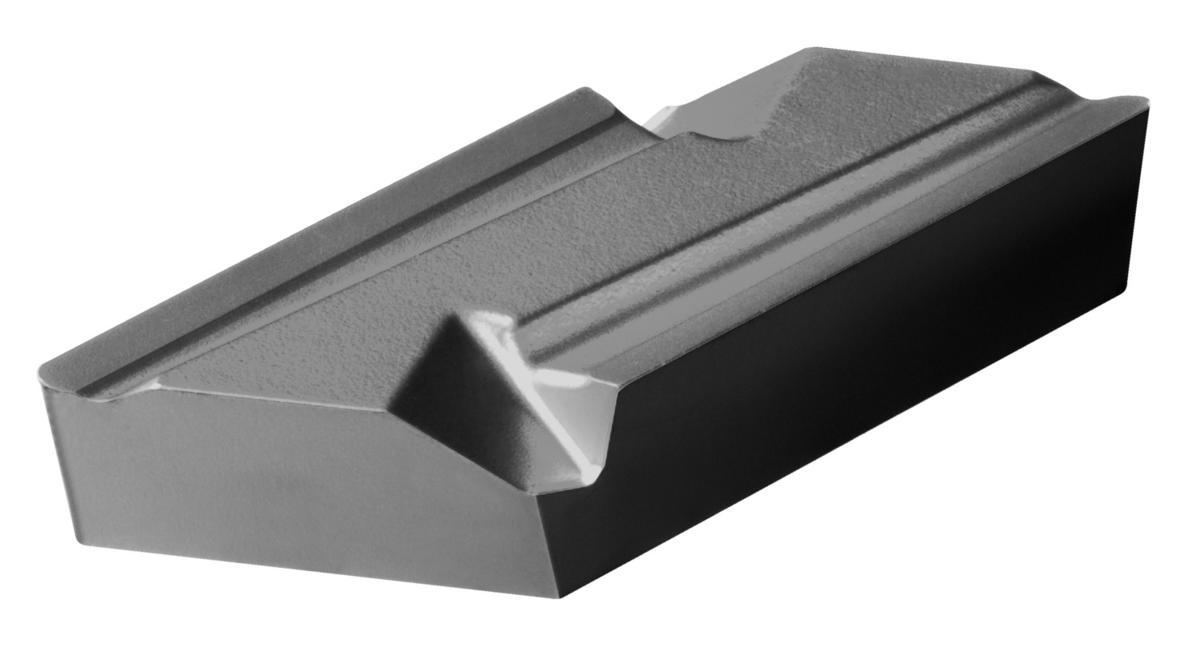

Sandvik Coromant 5733267
Specifications
| Coating/Finish | Uncoated |
|---|---|
| Thickness (Metric) | 4.76 |
| Corner Radius (Metric) | 1 |
| Material | WC |
| Size | 1604 |
| Corner Radius (Inch) | 0.04 |
| Style | KNUX |
| Thickness (Inch) | 0.19 |
| Short Description | T-Max® insert for turning |
| Grade | H13A |
| Unit Of Measure | Metric |
| Clearance Angle Major | 0 degrees |
| Width (Decimal) | 0.38 |
| Width (Metric) | 9.53 |
| Length (Decimal) | 0.61 |
| Length (Metric) | 15.5 |
| Shape | Parallelogram |
| Country of Origin | India |
| Series | T-Max |
| Chip Breaker Type | 12 |
| ANSI Code | KNUX 16 04 10L12 H13A |
| ISO Code | KNUX 16 04 10L12 H13A |
| Hand of Insert | Left |
| Coating Process Type | Uncoat |
| Operation Type | Finishing |
| Mounting Style | Clamp |
| Substrate Type | Carbide |
| Number of Cutting Edges | 2 |
| Wiper Edge Property | No |
| Application | Turning, General |
| ISO Material Classification | PMKNS |
| Base Item Number | 1026 |
| Length | 15.5 mm |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 0.028 LB |
| Width | 9.53 mm |
| Height Packed Product Metric | 13.5 mm |
| Insert Style | KNUX |
| Height Packed Product Imperial | 0.531 inch |
| ISO Code (packed) | KNUX160410L12H13A |
| Insert Size | 1604 |
| Length Packed Product Metric | 129 mm |
| Life Cycle State | 20 |
| ISO Code (unpacked) | KNUX 16 04 10L12 H13A |
| Length Packed Product Imperial | 5.079 inch |
