Sandvik Coromant
5733449

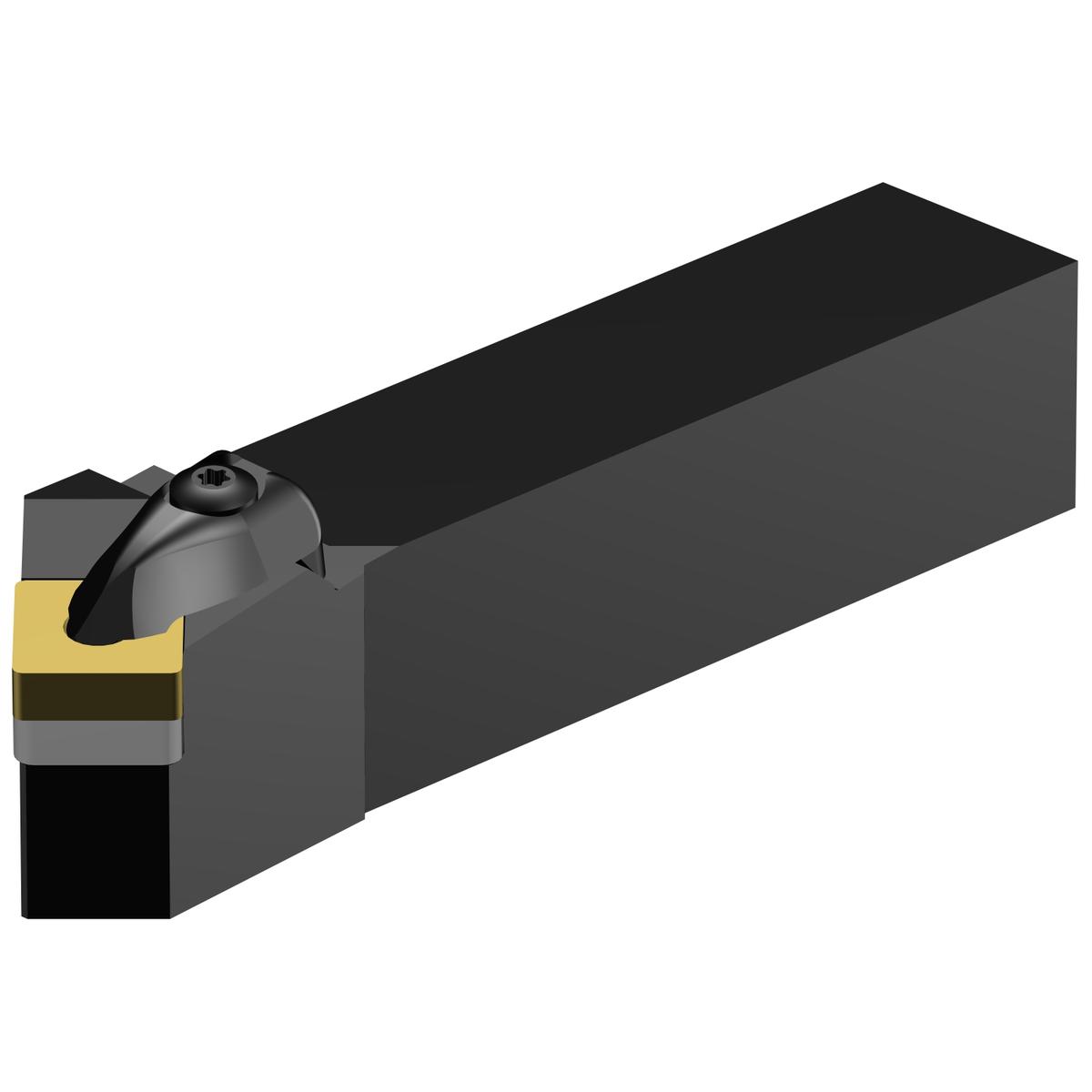

Sandvik Coromant 5733449
Specifications
| Overall Length (Metric) | 152.4 |
|---|---|
| Series | T-Max P |
| Tool Lead Angle | 45 degrees |
| Overall Length (Inch) | 6 |
| Insert Style | DSSNR/L (INCH) |
| Short Description | T-Max® P shank tool for turning |
| Direction Of Hand | Right |
| Unit Of Measure | Imperial |
| Material | Steel |
| Shank Width | 1.25 Inch |
| Orthogonal Rake Angle | -8 degrees |
| Shank Width (Decimal) | 2.17 |
| Shank Width (Metric) | 31.75 |
| Shank Height (Metric) | 31.75 |
| Inclination Angle | 0 degrees |
| Protruding Length (Decimal) | 6.49 |
| Protruding Length (Metric) | 164.88 |
| Overall Height (Metric) | 31.75 |
| Overall Height (Decimal) | 1.25 |
| Overall Length | 6 Inch |
| Insert Compatibility | SNMG 190612 |
| ANSI Code | DSSNR 20 6D |
| Coolant Through | No |
| Overall Width (Decimal) | 1.5 |
| Overall Width (Metric) | 38.1 |
| Shank Height (Decimal) | 1.25 |
| Clamping Type Code | Clamp |
| Torque | 6.4 Nm |
| Machine Side Body Angle | 0 degrees |
| Workpiece Side Body Angle | 0 degrees |
| Tool Cutting Edge Angle | 45 degrees |
| Coolant Entry Style Code | 0: Without Coolant |
| Coolant Exit Style Code | 0: No Coolant Exit |
| Country of Origin | Sweden |
| Base Item Number | 1049 |
| Max. Overhang (Decimal) | 1.41 |
| Max. Overhang (Metric) | 35.89 |
| Maximum Ramping Angle | 0 degrees |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Weight | 2.657 LB |
