Sandvik Coromant
5733666
Sandvik Coromant 5733666
Specifications
| Corner Radius (Metric) | 0.8 |
|---|---|
| Type | Asymmetrical Point |
| Series | Coromant U |
| Coating/Finish | TiCN+TiN |
| Material | WC or Cermet |
| Corner Radius (Inch) | 0.03 |
| Chip Breaker Type | 53 |
| Unit Of Measure | Metric |
| Style | LCMX |
| Thickness | 3.18 mm |
| Grade | 235 |
| Thickness (Metric) | 3.18 |

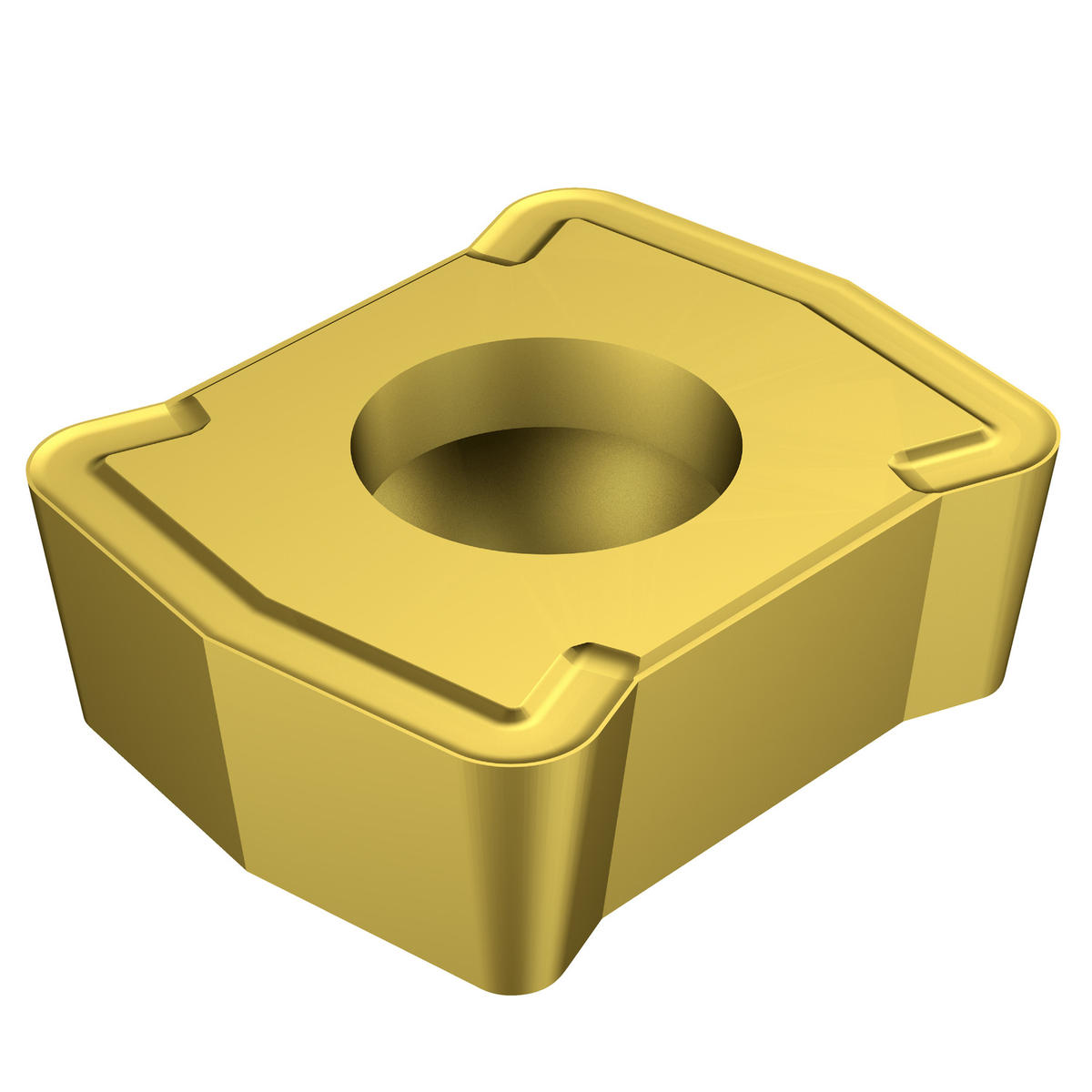

| Short Description | Coromant U insert for drilling |
| Size | 40308 |
| Corner Radius | 0.8 mm |
| Thickness (Decimal) | 0.13 |
| ANSI Code | LCMX 04 03 08-53 235 |
| ISO Code | LCMX 04 03 08-53 235 |
| Fixing Hole Diameter (Decimal) | 0.11 |
| Fixing Hole Diameter (Metric) | 2.8 |
| Coating Process Type | CVD |
| Operation Type | Medium Feed |
| Mounting Style | Screw/Clamp |
| Rake Angle | 18 degrees |
| Substrate Type | Carbide |
| Number of Cutting Edges | 2 |
| Wiper Edge Property | No |
| Insert Usage Code | Peripheral+Central |
| Application | Drilling, Indexable |
| ISO Material Classification | PM |
| Country of Origin | India |
| Base Item Number | 1102 |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 0.006 LB |
| Height Packed Product Metric | 11 mm |
| Insert Style | LCMX |
| Height Packed Product Imperial | 0.433 inch |
| ISO Code (packed) | LCMX040308-53235 |
| Insert Size | 040308 |
| Length Packed Product Metric | 95 mm |
| Life Cycle State | 20 |
| ISO Code (unpacked) | LCMX 04 03 08-53 235 |
| Length Packed Product Imperial | 3.74 inch |
