Sandvik Coromant
5733711
Sandvik Coromant 5733711
Specifications
| Minimum Bore Diameter (Metric) | 60 |
|---|---|
| Minimum Bore Diameter (Inch) | 2.36 |
| Shank Diameter (Metric) | 50 |
| Direction Of Hand | Left |
| Overall Length (Metric) | 350 |
| Shank Diameter (Inch) | 1.97 |
| Overall Length (Inch) | 13.78 |

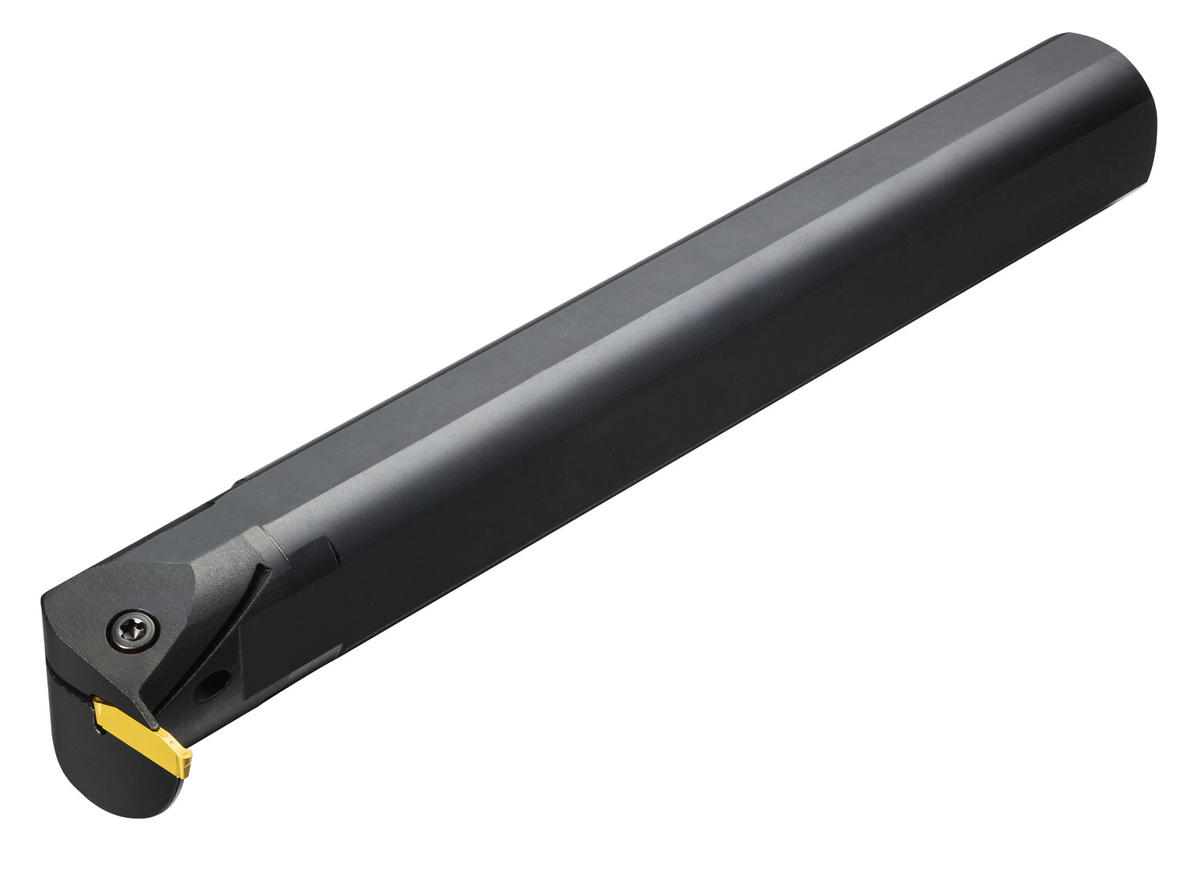

| Short Description | CoroCutĀ® 1-2 boring bar for grooving |
| Unit Of Measure | Metric |
| Series | CoroCut 1-2 |
| Shank Height (Metric) | 47 |
| Shank Height (Decimal) | 1.85 |
| Overall Length | 350 mm |
| Shank Diameter | 50 mm |
| Coolant Through | Yes |
| ANSI Code | LAG123K13-50B |
| Workpiece Side Body Angle | 90 degrees |
| Body Diameter (Decimal) | 1.97 |
| Body Diameter (Metric) | 50 |
| Coolant Pressure | 580.151 lbf/in2 |
| Overall Width (Decimal) | 1.51 |
| Overall Width (Metric) | 38.25 |
| Clamping Type Code | Clamp |
| Torque | 5.5 Nm |
| Coolant Entry Style Code | 1: Axial Concentric Entry |
| Coolant Exit Style Code | 3: Axial Inclined Exit |
| Country of Origin | Italy |
| Base Item Number | 1073 |
| Max. Cutting Depth (Decimal) | 0.51 |
| Max. Cutting Depth (Metric) | 13 |
| Max. Overhang (Decimal) | 7.87 |
| Max. Overhang (Metric) | 200 |
| Min Bore Diameter | 60 mm |
| Min. Overhang (Decimal) | 2.56 |
| Min. Overhang (Metric) | 65 |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 10.935 LB |
| Height Packed Product Metric | 104 mm |
| Height Packed Product Imperial | 4.094 inch |
| ISO Code (packed) | LAG123K13-50B |
| Length Packed Product Metric | 490 mm |
| Life Cycle State | 30 |
| ISO Code (unpacked) | LAG123K13-50B |
| Length Packed Product Imperial | 19.291 inch |
